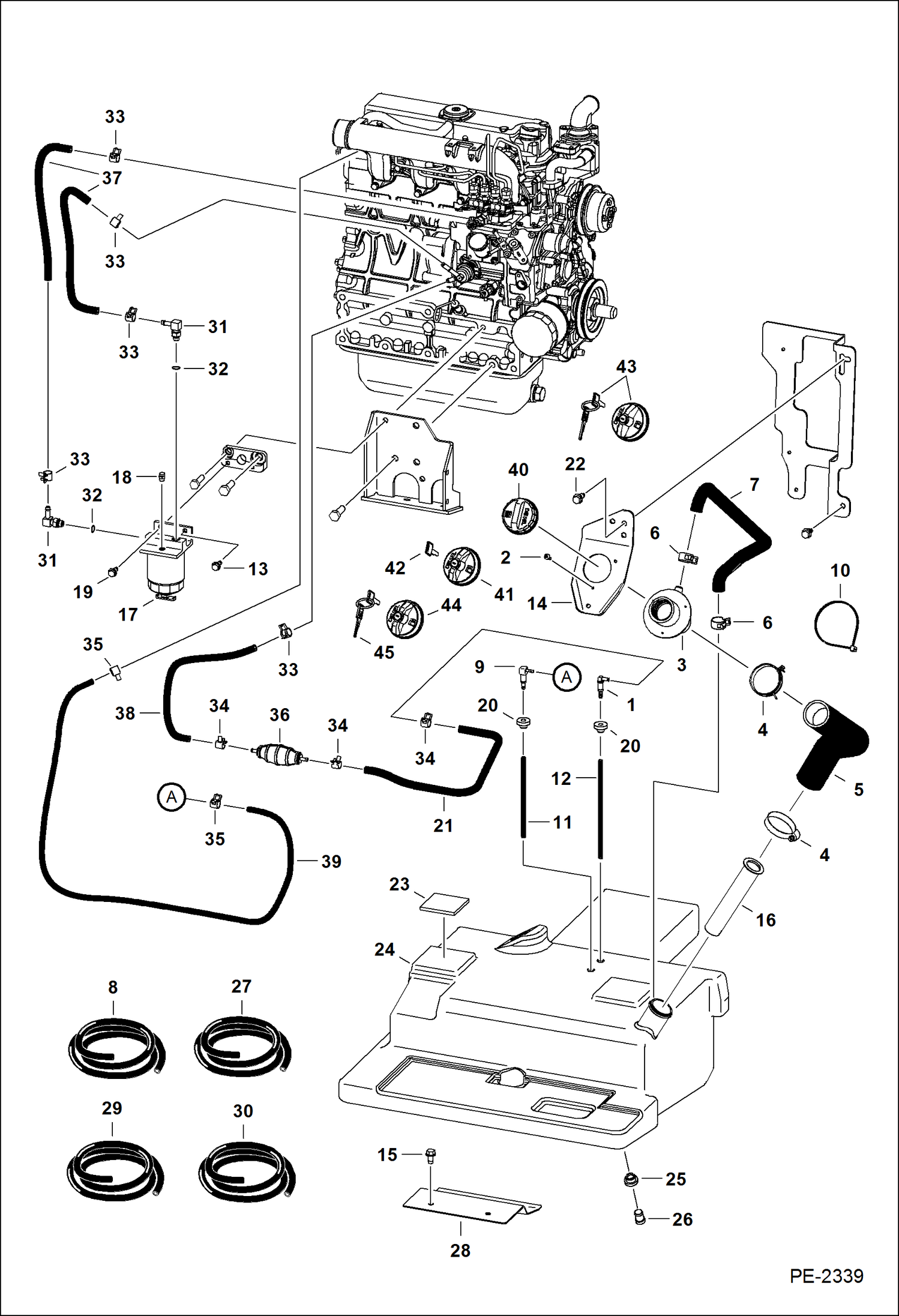

1
6598908
ELBOW
2
7106279
BOLT Was 6706517 - B
3
6701449
FILLER TUBE
4
5HM58
CLAMP constant tension
5
6736208
HOSE
6
5HM24
CLAMP constant tension
7
HOSE NLA - 27.5'' (698,5 mm) long - Order Ref. 8
8
6578172
HOSE bulk - sold per foot
9
7101291
ELBOW Was 6681462 - A
10
6624289
STRAP, TIE
11
6730767
HOSE 7'' (177,8 mm) long
12
6737482
HOSE ASMBLY 8.75'' (222,3 mm) long - W/Ref. 9
13
84G3112
BOLT 5
14
6731059
INLET
15
84G3712
BOLT 5
16
7120881
SCREEN, FILLER Was 6569219 - A
17
6667353
FILTER ASSY W/Ref. 18
17
6667352
FILTER, FUEL W/SEPARATOR 12
17
72F1
FITTING
18
6658180
PLUG, BLEED
19
84G3116
SCREW
20
6553411
BUSHING 0.38'' ID
21
HOSE NLA - 37'' (939,8 mm) long - Order Ref. 27
22
84G3716
SCREW 5
23
6578278
PAD self adhesive one side
24
6735220
TANK
25
6717402
BUSHING 0.54'' ID
26
7203382
PLUG, STEEL fuel drain - .75'' shoulder - Was 6717401 - A
27
6577821
HOSE bulk - sold per foot
28
6737368
BRACKET
29
6578169
HOSE bulk - sold per foot - 0.19'' ID
30
6577822
HOSE bulk - sold per foot
31
6715183
ELBOW W/Ref. 32
32
79K5
O RING 10
33
5HM14
CLAMP
34
5HM13
CLAMP
35
42HS04
CLAMP, HOSE
36
6657734
PUMP, PRIMER HAND 124 mm (4.88'') long
37
HOSE NLA - 13'' (330,2 mm) long - Order Ref. 30
38
HOSE NLA - 23'' (584,2 mm) long - Order Ref. 27 - Was 18'' (457,2mm long)
39
NLA - 62'' (1574,8 mm) long - Order Ref. 29
40
6661114
CAP. DIESEL green
40
7113340
CAP. DIESEL
41
6661696
CAP, FUEL LOCKING locking - W/key - Code PK510
42
6587458
KEY Code PK510
43
7121223
CAP. DIESEL LOCKING
44
7023550
CAP, DIESEL LOCKING
45
6693241
KEY 10 ignition - single key W/O ring
