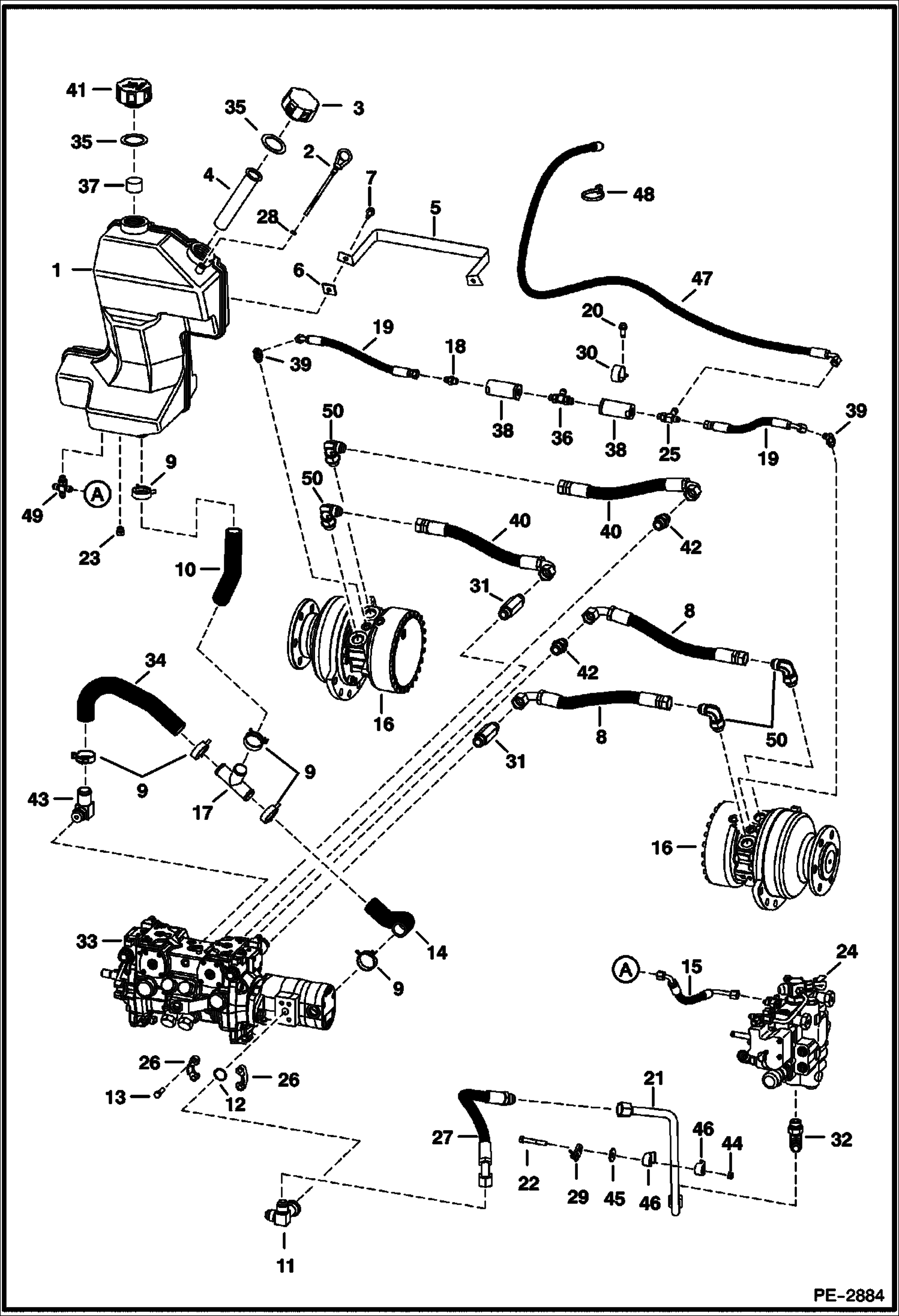

Запчасти Bobcat T-Series HYDROSTATIC CIRCUITRY (Selectable Joystick Controls) HYDROSTATIC SYSTEM

1

7108991

TANK

2

6577459

DIPSTICK W/Ref. 28

3

6728149

CAP , HYD NON VENTED breather

4

7120881

SCREEN, FILLER Was 6569219 - A

5

6734272

BAND

6

6559447

WASHER

7

84G3712

BOLT 5

8

6735239

HOSE mega seal

9

5HM42

HOSECLAMP constant tension

10

7121823

HOSE 32 mm (1.25'') ID

11

7106040

ELBOW split flange - one leg

11

7113262

ELBOW split flange - two leg - Use W/hydraulic muffler hose

12

55K214

O-RING

13

17C620

BOLT

14

7121824

HOSE

15

7167245

HOSE, HYD ASSY Was 7113305 - B

16

MOTOR

17

6817459

FITTING

18

15KB0606

FITTING, HYD CONNECTOR

18

79K6

O RING 10

19

6736203

HOSE

20

84G3716

SCREW 5

21

7100241

TUBE

22

17C640

BOLT 5

23

24K5

PLUG

23

79K6

O RING 10

24

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2378

25

7102227

TEE

26

19J12

CLAMP

27

7113308

HOSE

28

25K20010

O RING 10

29

6679034

MOUNT harness

30

30H79

CLAMP

31

6735511

ADAPTER mega seal

31

79K12

O RING 10

32

7101797

ELBOW

32

79K12

O RING 10

33

PUMP

34

7121822

HOSE

35

6700631

GASKET

36

6737408

TEE

36

79K6

O RING 10

37

6703427

FOAM FILTER

38

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527 - 90 micron

39

18KB0606

FITTING, HYD ELBOW

39

79K6

O RING 10

40

7137210

HOSE

41

6727475

CAP, OIL HYD

42

7109054

ADAPTER

43

7121825

ELBOW

43

79K12

O RING 10

44

85D6

NUT, 5

45

619021

WASHER, 5

46

7100462

CLAMP

47

7101860

HOSE

48

6624289

STRAP, TIE

49

6578209

TEE

49

79K6

O RING 10

50

7101797

ELBOW

50

79K12

O RING 10
