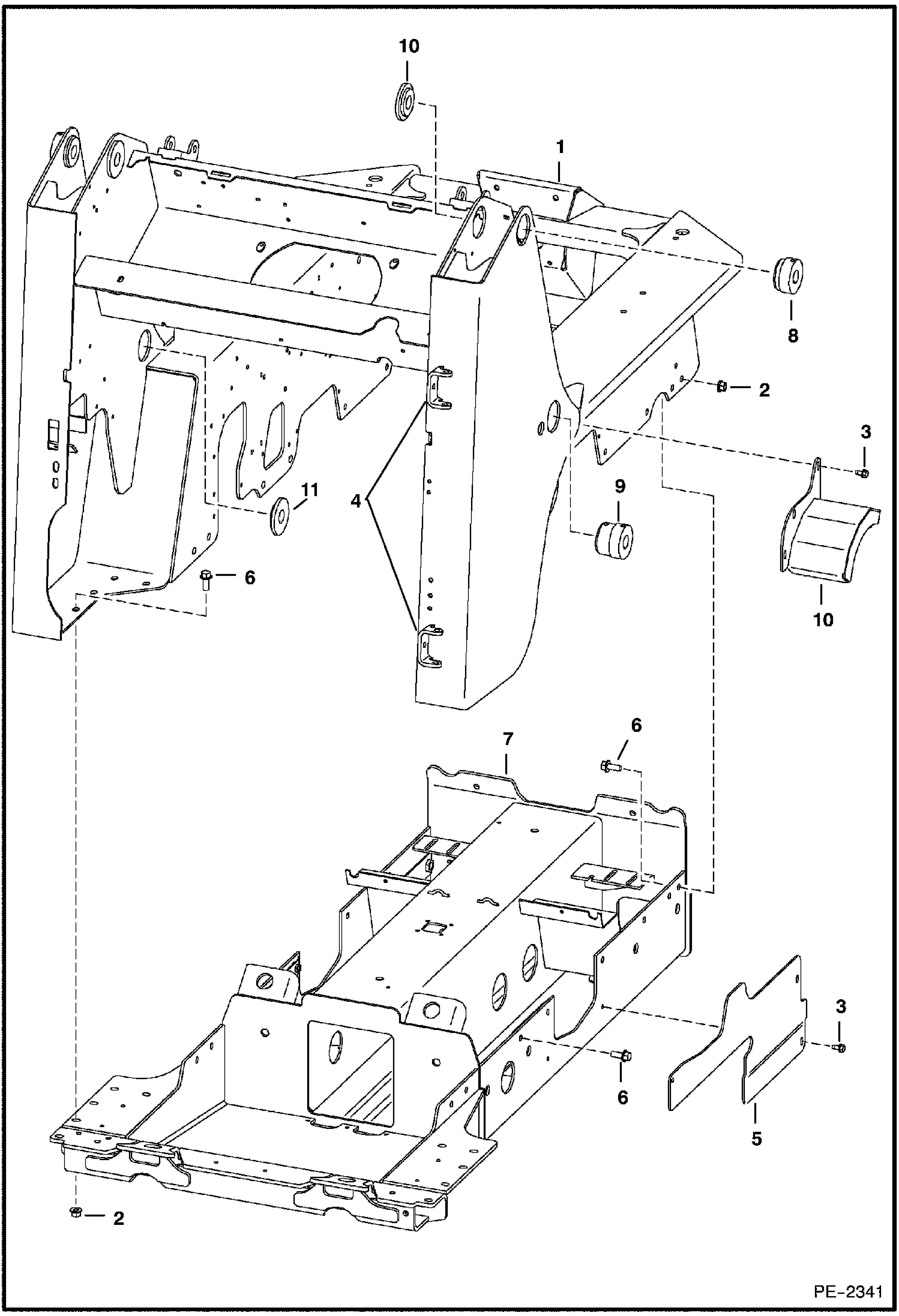

Запчасти Bobcat T-Series MAIN FRAME MAIN FRAME

1

6737143

MAIN FRAME

2

83D8

NUT 5

3

84G3712

BOLT 5

4

6708987

HINGE, WELD-ON

5

7100914

COVER RH

5

7101063

COVER LH

6

31C820

BOLT

7

DRIVECASE See Illustration DRIVE TRAIN/ PE2340

8

6731578

BUSHING, WELD-ON

9

6737272

BUSHING, WELD-ON

10

6735313

SHIELD R.H.

10

6735314

SHIELD L.H.

11

6702583

BUSHING, WELD-ON
