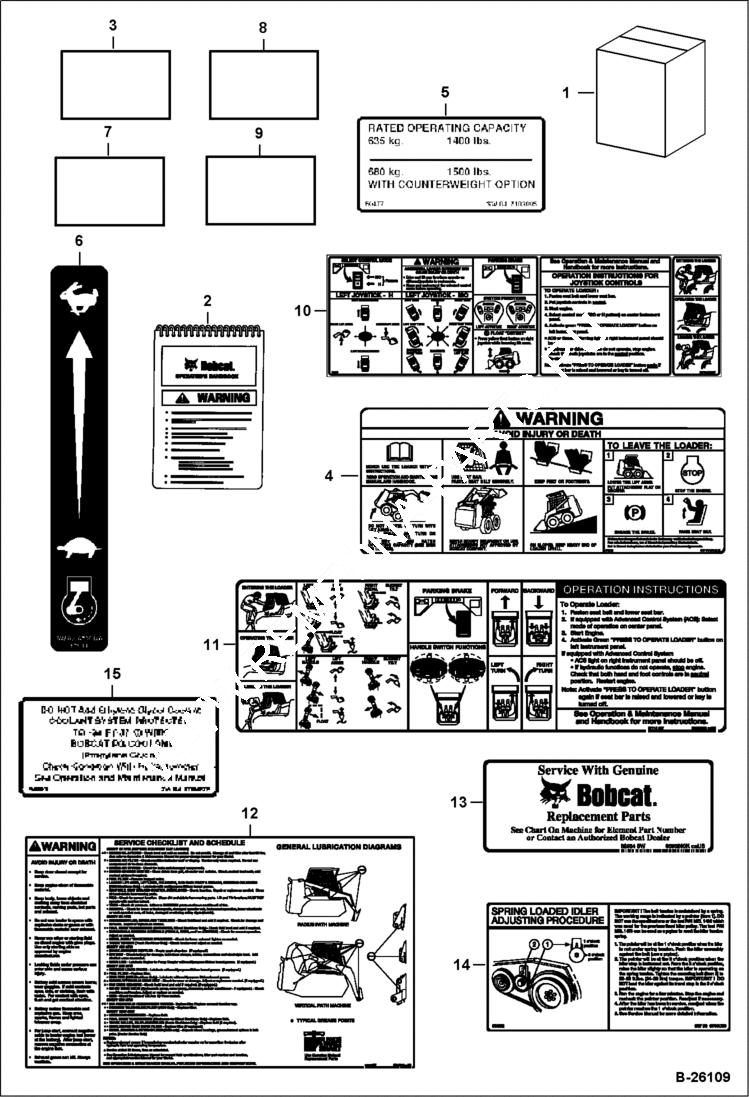

Запчасти Bobcat T-Series DECALS (Inside) ACCESSORIES & OPTIONS

1

6904999

DECAL KIT decal

1

7120275AR

KIT, DECAL decal

1

7120275BR

KIT, DECAL decal

1

7120275JP

KIT, DECAL decal

1

7120274AR

KIT, TRANSLATION T140 SPANISH translation

1

7120274BR

KIT, TRANSLATION T140 PORTUGUESE translation

2

6902808

HANDBOOK, OPERATOR'S W/WIRE ROPE not in kit - Was 6728607 - A

2

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

2

6558310

SLEEVE wire rope

3

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

4

6728540

DECAL, WARNING

4

6735255

DECAL, WARNING selectable joystick controls - not in kit

5

7103995

DECAL capacity

6

6735140

DECAL, THROTTLE

7

6707523

SAFETY TREAD LH

7

6707524

SAFETY TREAD RH

8

6727917

SAFETY TREAD 32 x 267 mm (1.25 x 10.5'')

9

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

10

6735256

DECAL, OPERATION seat & seat bar operation - selectable joystick controls - not in kit

11

6727926

DECAL, OPERATION hand & foot controls - not in kit

11

6734647

DECAL, OPERATION selectable joystick controls - not in kit

12

6734534

DECAL, SERVICE service checklist & schedule - Was 7124877 - A

12

6728539

DECAL

13

6565200

DECAL, FILTER not in kit

14

6709030

DECAL belt tension - spring loaded idler

15

6708929

DECAL, COOLANT propylene glycol
