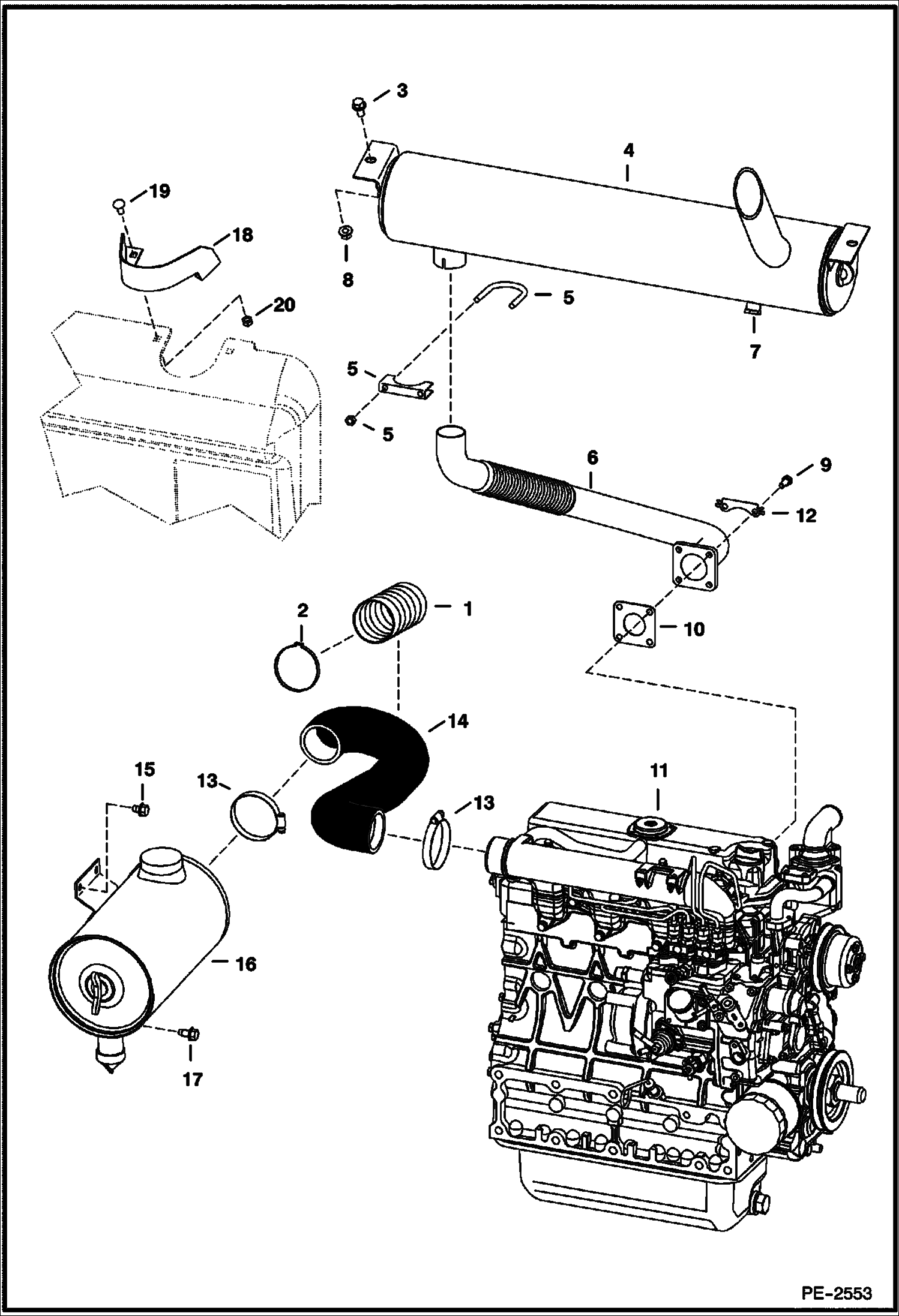

Запчасти Bobcat T-Series ENGINE & ATTACHING PARTS (Air Cleaner & Muffler) POWER UNIT

1

6706394

SHIELD 203 mm (8'') long

2

6664004

CLAMP

3

35C616

BOLT 5

4

7100840

MUFFLER, EXHAUST

5

6677363

CLAMP, FULL CIRCLE

6

6701151

PIPE

7

6661062

PLUG brass - 0.38''

8

83D6

NUT 5

9

6701123

SCREW

10

6727752

GASKET

11

ENGINE See Illustration ENGINE & GASKET KITS/ NA1529

12

7103688

CLIP exhaust

13

42HL300

CLAMP

14

7100573

HOSE W/Ref. 1 & (2) of Ref. 2

15

84G3708

SCREW

16

AIR CLEANER See Illustration AIR CLEANER/ MS2186

17

84G3712

BOLT 5

18

6714624

SHIELD Europe only

19

37C512

BOLT

20

61D5

NUT
