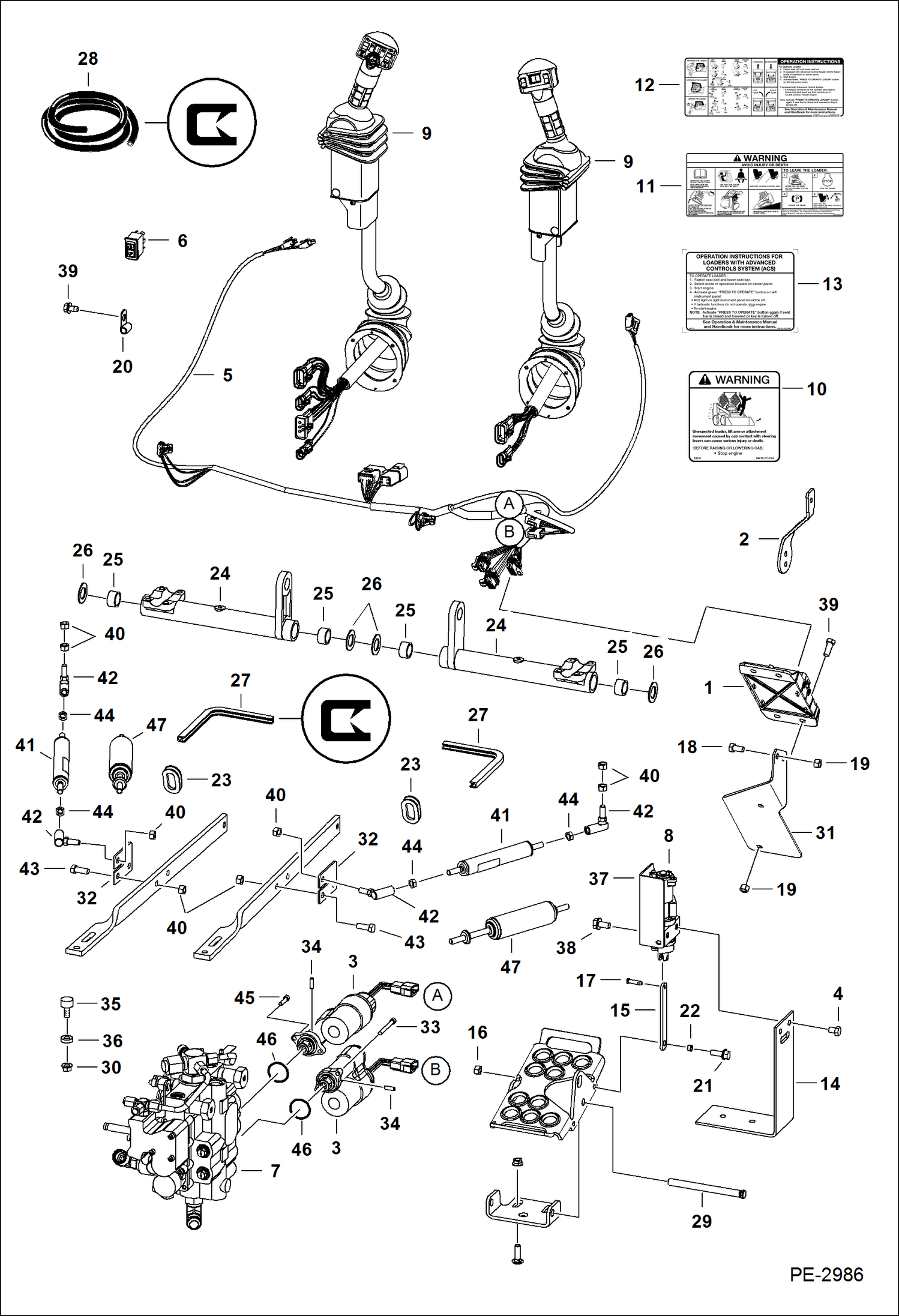

Запчасти Bobcat T-Series CONTROLS ELECTRICAL (AHC) (ACS) (S/N 529311592 & Above, 531311264 & Above) ELECTRICAL SYSTEM

1

6680410

CONTROLLER plastic - W/ 3-connector plug

2

6717393

LEVER throttle

3

7101672

ACTUATOR W/Ref. 46

4

17C608

BOLT

5

7124893

HARNESS AHC

5

7124125

HARNESS ACS

6

6665314

PLUG AHC

6

6665314

PLUG ACS

6

6676537

SWITCH ACS

7

VALVE

8

6684912

SENSOR, FOOT RH

8

6676029

SOLENOID, LOCK SPOOL

8

6684911

SENSOR, FOOT LH

8

6676029

SOLENOID, LOCK SPOOL

9

6684913

LEVER tilt - RH - AHC

9

6684914

LEVER lift - LH - AHC

9

6684915

LEVER, ACS RH tilt - RH - ACS

9

6684916

LEVER, ACS LH lift - LH - ACS

10

6718706

DECAL, WARNING raising cab

11

6728540

DECAL, WARNING

12

6727926

DECAL, OPERATION hand & foot controls

13

6727926

DECAL, OPERATION hand & foot controls

14

7126869

BRACKET Was 6726573 - A

15

6726681

LINK

16

95D5

NUT

17

6727496

PIN

18

17C616

BOLT 5

19

95D6

NUT

20

30H38

CLIP

21

17C514

BOLT

22

6729467

SPACER

23

6714726

GROMMET

24

BELLCRANK NLA - Use W/Ref. 25 (6673710 bearing) - Order 7110571 bellcrank & (2) of Ref. 25 (6703879 bushing) - Was 7110572 - A

24

7110571

BELLCRANK, STEERING W/notch for Ref. 25 (6703879 bushing)

25

6673710

BEARING, NEEDLE Use W/Ref. 24 (NLA/ 7110572 bellcrank)

25

6703879

BUSHING, PLASTIC W/tab - Use W/Ref. 24 (7110571 bellcrank)

26

6716916

WASHER plastic

27

MOULDING NLA - 10.5'' (266,7mm) long - Order Ref.28

28

6654139

MOULDING bulk - sold per foot

29

6564657

PIN

30

98D6

NUT

31

6727580

MOUNT

32

7107987

BRACKET

33

69G436

BOLT

34

7108236

PIN

35

6673789

BEARING

36

7100699

WASHER

37

6680478

SHIELD RH

37

6680479

SHIELD LH

38

43C408

BOLT

39

17C612

BOLT 5

40

62D6

NUT 5

41

GAS SPRING NLA - Japan Option - Order Ref. 47 - Was 6649551 - A

42

6599744

BALL JOINT

43

18C616

BOLT 5

44

8D6

NUT 5

45

29G416

BOLT

46

58K120

O-RING Use W/Ref. 3

47

7188108

GAS SPRING
