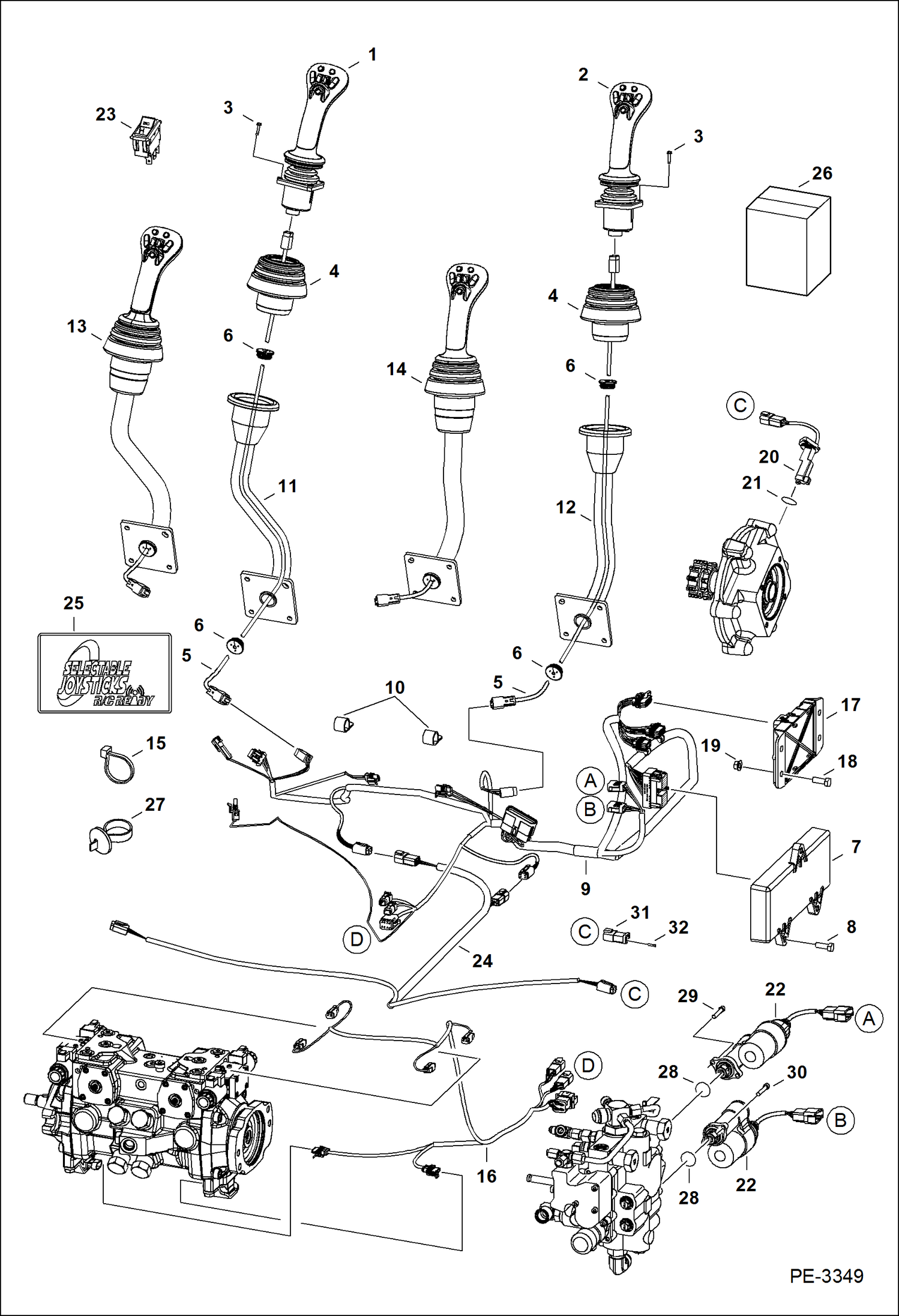

Запчасти Bobcat T-Series CONTROLS ELECTRICAL (Selectable Joystick Controls) (S/N 529311001 - 11592, 531311001 - 11263) ELECTRICAL SYSTEM

1

JOYSTICK LH NSS - Order Ref. 13 - Was 6687883 - A

2

JOYSTICK RH NSS - Order Ref. 14 - Was 6687882 - A

3

BOLT NSS - Order Ref. 26 - Was 6678659 - A

4

BOOT NSS - Order Ref. 26 - Was 6678903 - A

5

HARNESS NSS - Order Ref. 26 - Was 6729397 - A

6

6684294

GROMMET

7

6679485

CONTROLLER SJC drive - W/single 50-pin connector

8

43C616

BOLT

9

HARNESS, SJC See BTI419 - NLA - W/Speed sensor connectors - Was 7117036 - A

9

7117036

HARNESS, SJC W/O speed sensor connectors

10

30H46

CLIP

11

HANDLE NSS - LH - Order Ref. 13 - Was 6729792 - A

12

HANDLE NSS - RH - Order Ref. 14 - Was 6729791 - A

13

JOYSTICK ASMBLY LH NLA - LH - Ref. 1, 3-6 & 11 - Order Ref. 26 - Was 7111993 - C

14

JOYSTICK ASMBLY RH NLA - RH - Ref. 2-6 & 12 - Order Ref. 26 - Was 7111992 - C

15

6624289

STRAP, TIE

16

7131601

HARNESS, PUMP Use W/hydrostatic pump Model R902095064 - Was 7114735 - B,D

16

7178411

HARNESS, ADAPTER Use W/hydrostatic pump Model R902136745

17

6680410

CONTROLLER plastic - W/ 3-connector plug

18

17C616

BOLT 5

19

97D6

NUT 10

20

SENSOR NLA - nylon conduit - Order 7139902 sensor - Was 6684443 - B

20

SENSOR, SPEED See BTI419 - NLA - Was 7139902

21

75K5

O-RING

22

7101672

ACTUATOR W/Ref. 28

23

6683812

SWITCH H/ISO

24

6736808

HARNESS speed sensor

25

7145528

DECAL Was 6737626 - A

26

7126558

KIT, JOYSTICK

27

6675734

STRAP, TIE

28

58K120

O-RING Use W/Ref. 22 - Was 6686220 - B,D

29

69G436

BOLT

30

29G416

BOLT

31

6691419

CONNECTOR, ELECTRICAL

32

6665370

PLUG
