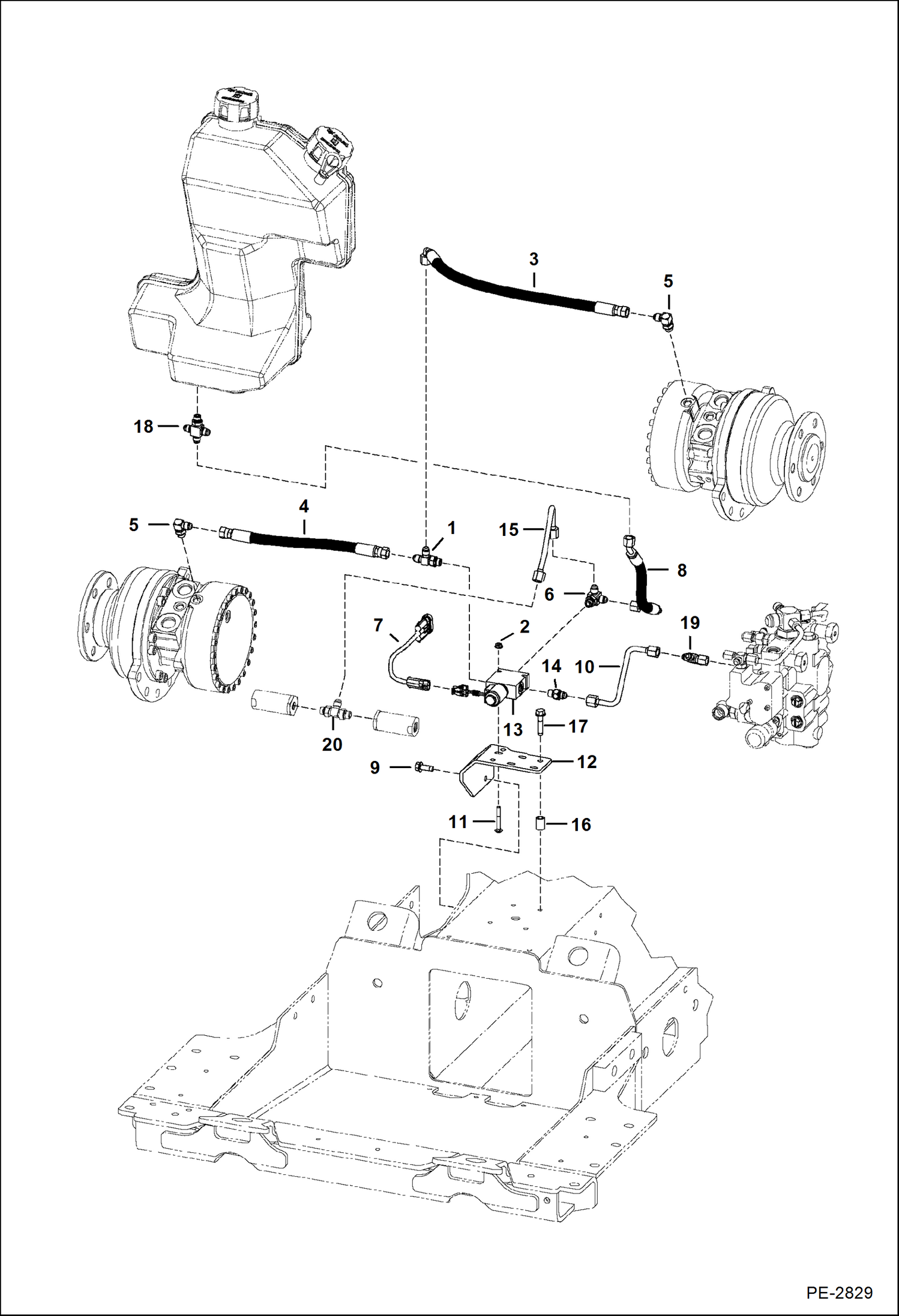

Запчасти Bobcat T-Series HYDROSTATIC CIRCUITRY Brake Valve HYDROSTATIC SYSTEM

1

21KB0606

FTG HYD STRAIGHT TEE

1

79K6

O RING 10

2

55D4

NUT

3

7109399

HOSE

4

7109398

HOSE

5

17KB0606

FITTING

5

79K6

O RING 10

6

6725182

TEE

6

79K6

O RING 10

7

7115894

HARNESS brake valve

8

7109400

HOSE

9

84G3716

SCREW 5

10

7109395

TUBE

11

37C432

SCREW

12

7110926

BRACKET

13

6679103

VALVE, BRAKE

13

6675731

COIL

13

6668820

NUT

13

6669736

SEAL KIT

14

6669676

CHECK VALVE

14

79K6

O RING 10

15

7109396

TUBE

16

7144076

SPACER

17

84G3728

BOLT

18

6578209

TEE

18

79K6

O RING 10

19

13K5

TEE

19

79K6

O RING 10

20

6737408

TEE See Illustration HYDROSTATIC CIRCUITRY/ PE2731
