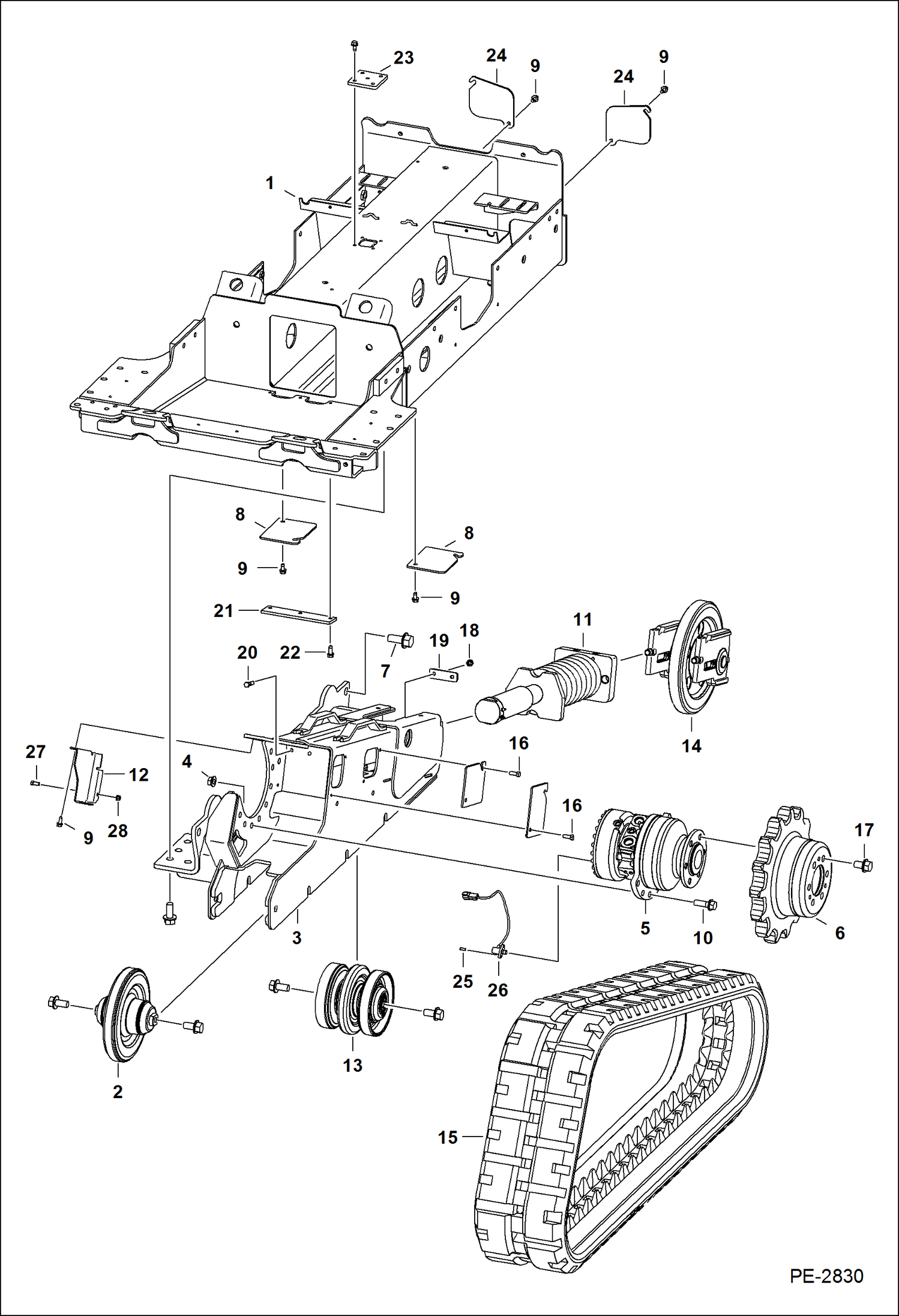

Запчасти Bobcat T-Series DRIVE TRAIN DRIVE TRAIN

1

7114609

DRIVECASE

2

31C1224

BOLT services 31C1228 in this application

3

IDLER, REAR 2 See Illustration REAR IDLER/ PE2555 - NLA - W/threaded holes - 1.38'' (35 mm) deep threads - Was 6693238 - B

3

6693238

IDLER, REAR 2 See Illustration REAR IDLER/ PE2555 - W/threaded holes - 1.77'' (45 mm) deep threads

4

6734702

FRAME, RH track

4

6734703

FRAME, LH track

5

53D10

NUT

6

MOTOR See Illustration HYDROSTATIC MOTOR/ MS2282

7

7165111

SPROCKET Was 6736306

8

31C1228

BOLT

9

7240780

COVER, ACCESS Was 6716010 - A

10

84G3712

BOLT 5

10

84G3712

BOLT 5

11

31C1032

BOLT

12

TENSIONER, TRACK ASSY See Illustration TRACK TENSIONER/ PE1491 - Was 7152280 - A

13

7103526

COVER RH - selectable joystick controls

13

7116614

COVER LH - selectable joystick controls - Was 7103525 - A

14

ROLLER, TRACK 2 See Illustration TRACK ROLLER/ PE2556 - NLA - W/threaded holes - 1.38'' (35 mm) deep threads - Was 6689371 - B

14

6689371

ROLLER, TRACK 2 See Illustration TRACK ROLLER/ PE2556 - W/threaded holes - 45 mm (1.77'') deep threads

15

6693237

IDLER, FRONT 2 See Illustration FRONT IDLER/ PE2554 Was 6691267 - A

16

TRACK, RUBBER See Illustration TRACKS/ NA6161

17

17C616

BOLT 5

18

31C1220

BOLT

19

85D6

NUT, 5

20

6726066

STOP base cylinder

21

17C628

BOLT

22

6700182

COVER, DRAIN

23

84G3716

SCREW 5

24

6730378

COVER

25

6737088

COVER, ACCESS

26

7102184

SCREW selectable joystick controls

27

75K5

O-RING

27

SENSOR, SPEED See BTI419 - NLA - Was 7139902

27

SENSOR NLA - nylon conduit - selectable joystick controls - Order 7139902 sensor - Was 6684443 - B

28

17C616

BOLT 5 selectable joystick controls

29

83D6

NUT 5 selectable joystick controls

30

7116434

SHIELD LH - 16'' (400 mm) wide - Bridgestone - wide track option

30

7116433

SHIELD RH - 16'' (400 mm) wide - Bridgestone - wide track option
