Запчасти Bobcat T-Series STEERING DAMPENING KIT ACCESSORIES & OPTIONS

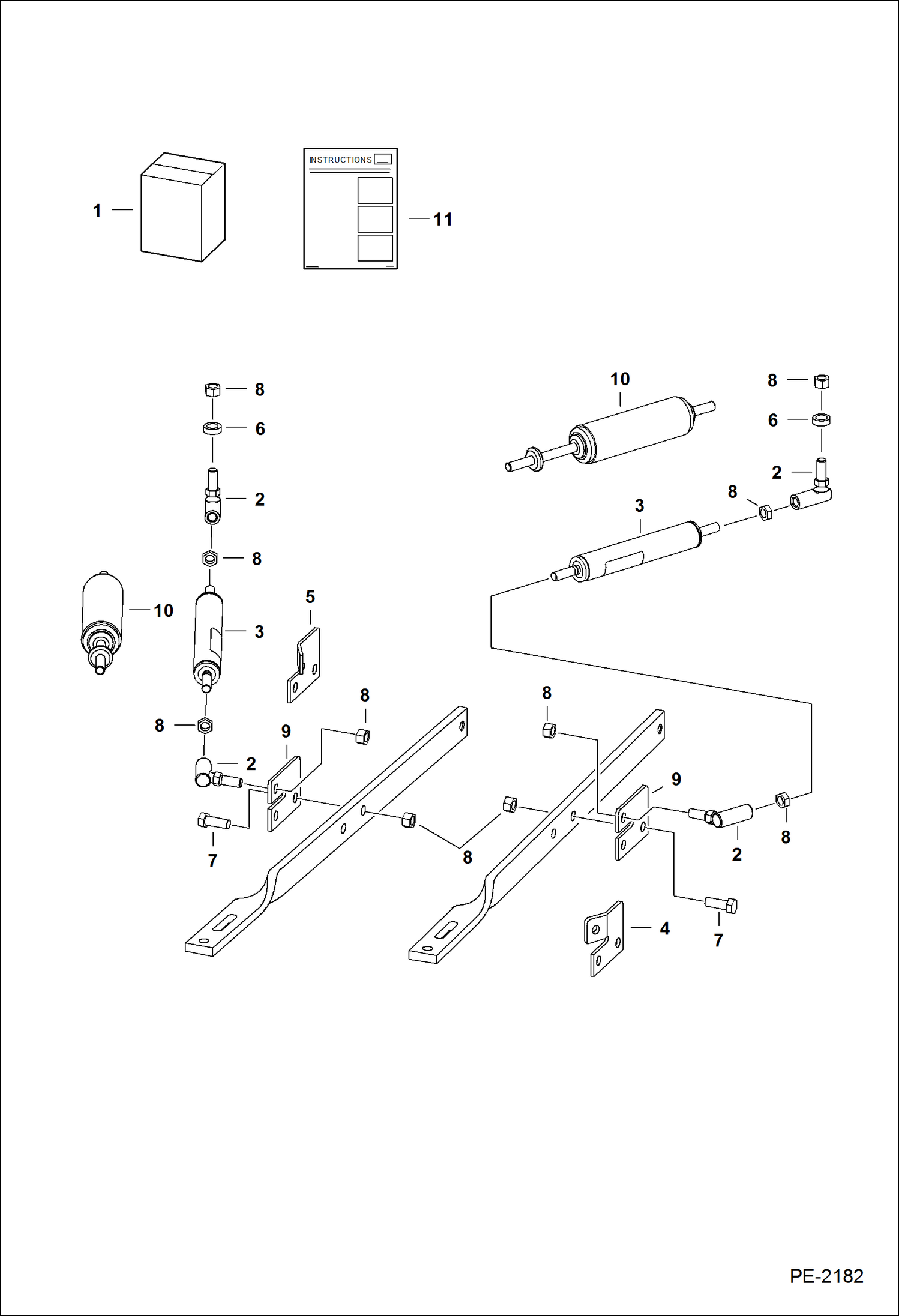

Схема запчастей Bobcat T-Series - STEERING DAMPENING KIT ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7101670

KIT Ref. 2-11

2

6599744

BALL JOINT

3

GAS SPRING NLA - Japan Option - Order Ref. 10 - Was 6649551 - A

4

BRACKET NLA - LH - Order Ref. 9 - Was 7101640 - A

5

BRACKET NLA - RH - Order Ref. 9 - Was 7101641 - A

6

SPACER NLA - Order 8D6 jam nut - Was 7110945 - A

7

18C616

BOLT 5

8

62D6

NUT 5

9

7107987

BRACKET

10

7188108

GAS SPRING

11

6902814

INSTRUCTIONS

Выбрано товаров: 11
