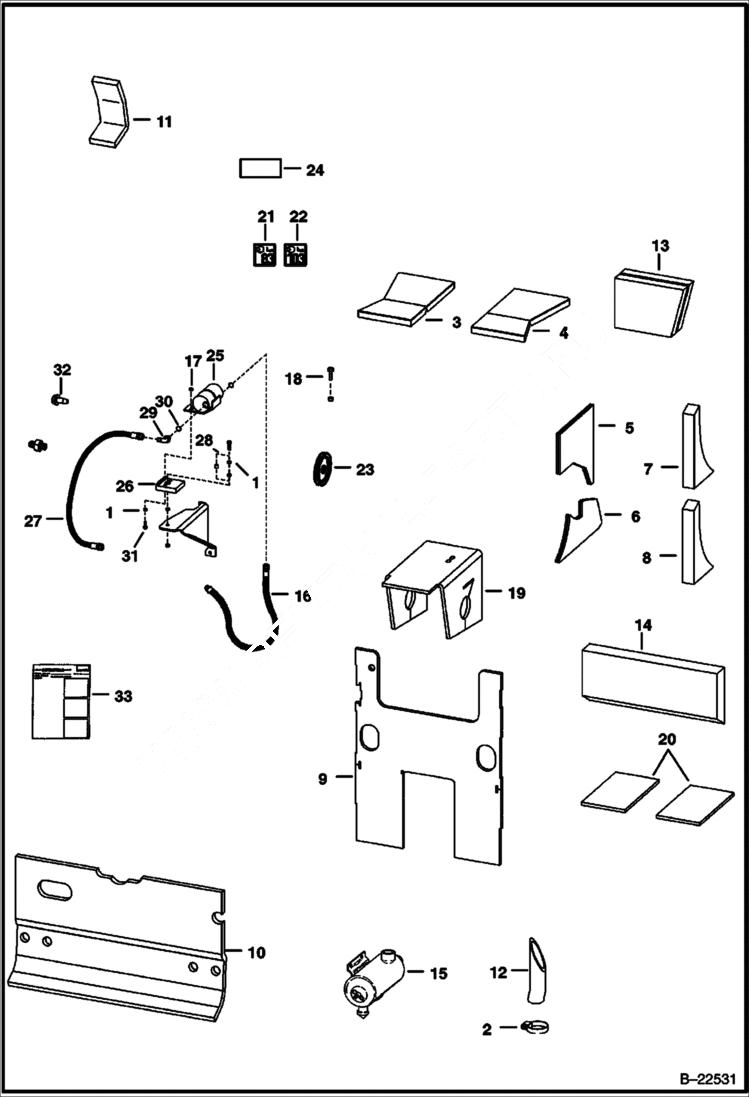

Запчасти Bobcat T-Series SOUND OPTION ACCESSORIES & OPTIONS

1

6562619

BUSHING

2

42H44

HOSECLAM5

3

6732722

INSULATION cross member - L.H.

4

6732723

INSULATION cross member - R.H.

5

6719332

INSULATION blower housing

6

6704769

INSULATION blower housing

7

6705849

INSULATION brace

8

6705850

INSULATION brace

9

6719372

INSULATION steering panel

10

6715106

INSULATION rear door

11

6703331

INSULATION air inlet

12

6735349

HOSE

13

6705848

INSULATION transmission

14

6725316

INSULATION transmission

15

6735285

AIR CLEANER

16

6729154

HOSE, HYD ASSY

17

85D6

NUT, 5

18

84G3716

SCREW 5

19

6715371

INSULATION transmission

20

6715372

INSULATION pedal

21

6579399

DECAL sound level warning - 83 db

22

6579403

DECAL sound level warning -103 db

23

6712970

PULLEY 4.75'' (120,7 mm) O.D.

23

6712971

PULLEY 5.00'' (127 mm) O.D.

24

6715428

DECAL

25

6659982

MUFFLER hyd.

26

6705333

MOUNT rubber

27

6729144

HOSE

28

6715744

BUSHING

29

17KB1212

FITTING, HYD ELBOW W/Ref. 30

30

79K12

O RING 10

31

35C616

BOLT 5

32

84G3724

BOLT

33

6901003

INSTRUCTIONS
