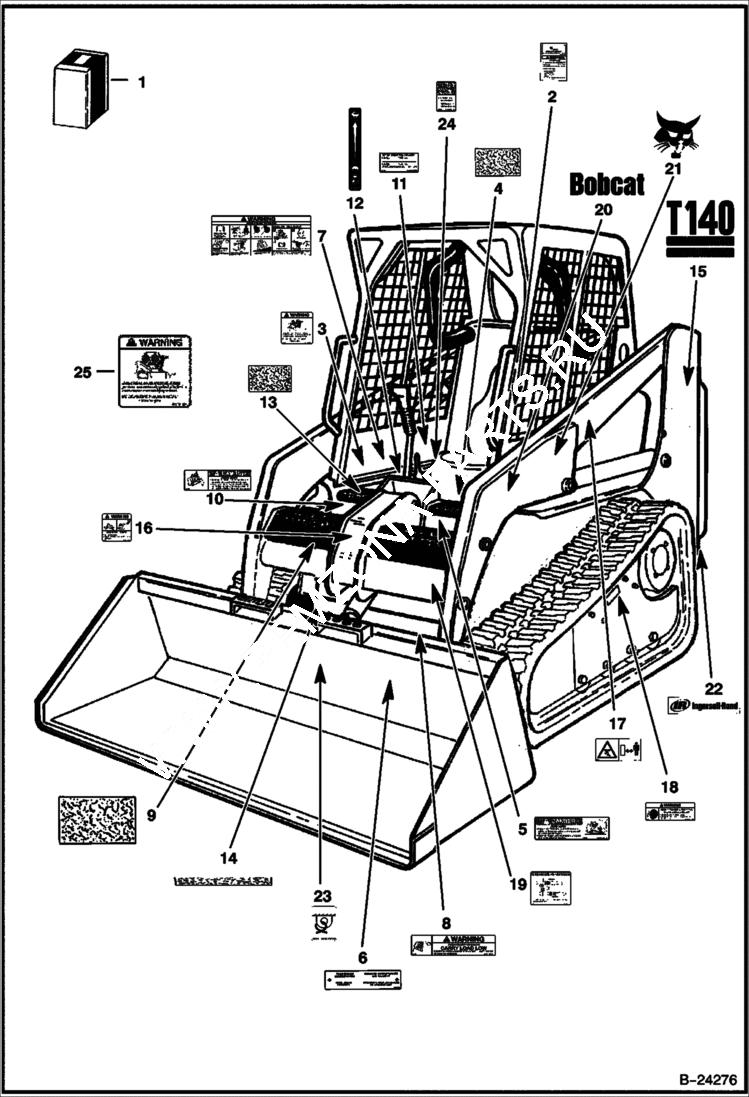

Запчасти Bobcat T-Series DECALS ACCESSORIES & OPTIONS

1

6903172

DECAL KIT decal - Ref. 3-21 & 23-25, Also Ref. 2-5, 7-9 & 11-19 on B24277

1

7104857AR

KIT, DECAL decal

1

7104857BR

KIT, DECAL decal

1

7104857JP

KIT, DECAL decal

1

7104855AR

KIT, TRANSLATION translation

1

7104855BR

KIT, TRANSLATION translation - B

2

6902808

HANDBOOK, OPERATOR'S W/WIRE ROPE not in kit - Was 6728607 - A

2

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

2

6558310

SLEEVE wire rope

3

6717343

DECAL, DANGER

4

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

5

6718393

DECAL, DANGER

6

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

7

6728540

DECAL, WARNING

8

6718391

DECAL, WARNING carry load low

9

6577947

SAFETY TREAD 190,5 x 381 mm (7.5 x 15'') - not in kit

10

6718392

DECAL, DANGER

11

7103995

DECAL capacity

12

6735140

DECAL, THROTTLE

13

6707523

SAFETY TREAD LH

13

6707524

SAFETY TREAD RH

14

6727917

SAFETY TREAD 32 x 267 mm (1.25 x 10.5'')

15

7103182

DECAL model

16

6718396

DECAL, WARNING no riders

17

6713507

DECAL stay clear -European - Not in Kit

18

7168039

DECAL, WARNING See Illustration DECALS/ NA6216 - high pressure grease - Was 6804114 - A

19

6731757

DECAL, OPERATION to release auxiliary hyd. pressure - not in kit

20

6731336

DECAL Bobcat - black

21

6731508

DECAL LH - Bobcat head - black

22

DECAL NLA - IR Logo - Black - Was 6735864 - A

23

6727595

DECAL

24

6711840

DECAL lift lock

25

6718397

DECAL, WARNING no riders
