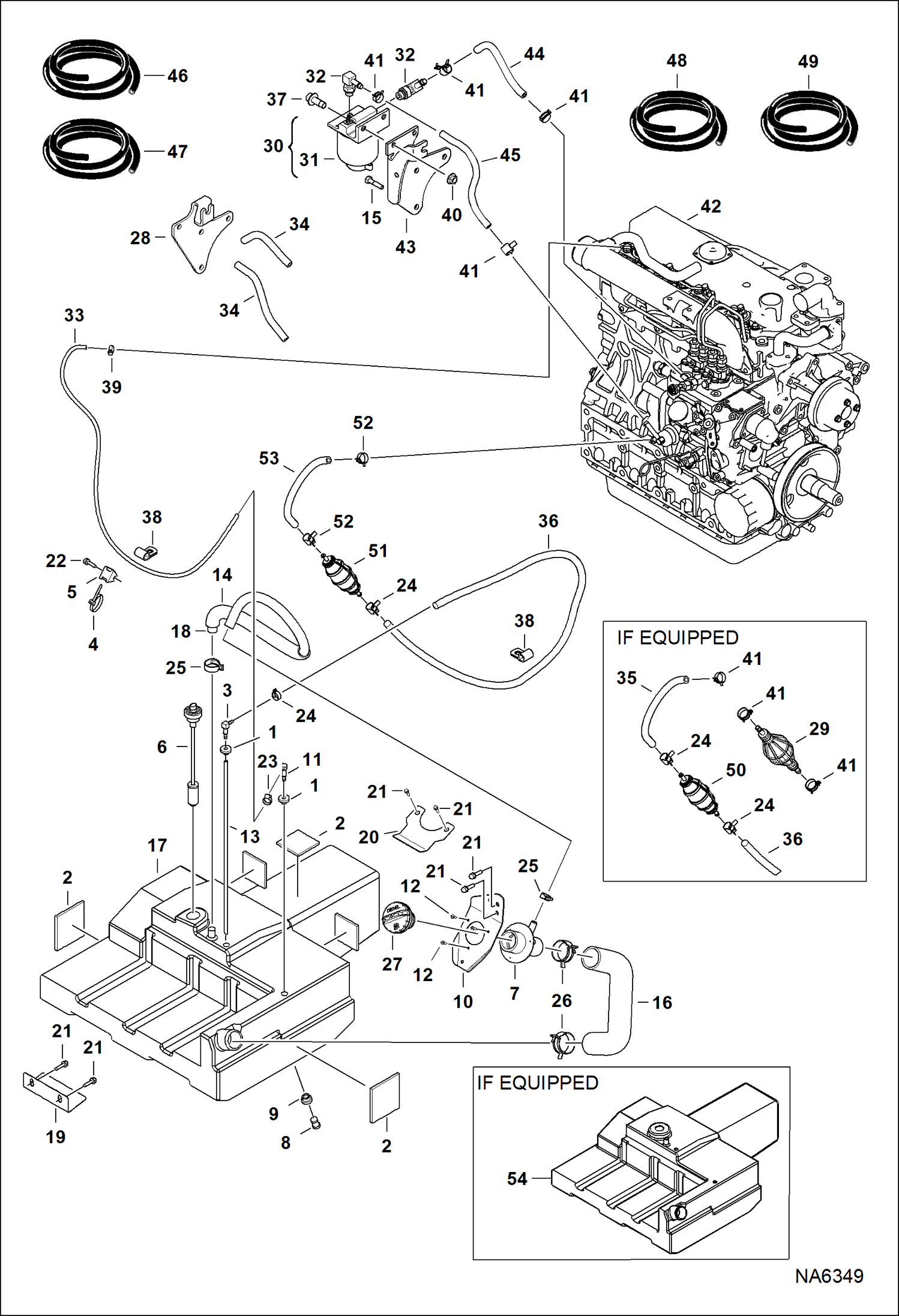

Запчасти Bobcat T-Series ENGINE & ATTACHING PARTS (Fuel System) POWER UNIT

1

6553411

BUSHING

2

6578278

PAD

3

6598908

ELBOW

4

6624289

STRAP, TIE Was 6915851 - A

5

6678818

MOUNT

6

7179839

SENSOR FUEL Was 6680438 - A

7

6701449

FILLER TUBE

8

7203382

PLUG, STEEL Was 6717404 - A

9

6717402

BUSHING

10

6731059

INLET

11

7101291

ELBOW

12

7106279

BOLT

13

7111441

TUBE FUEL LINE

14

7124294

GUARD 457,2 mm (18'') long

15

1CM870

BOLT

16

7160530

HOSE FUEL LINE

17

7163586

TANK FUEL

18

HOSE, BREATHER NLA - 960 mm (37'') long - Order Ref. 48

19

7168189

BRACKET HOLD DOWN

20

7168190

BRACKET HOLD DOWN

21

26GM10025

SCREW

22

26GM8016

SCREW

23

42HS04

CLAMP, HOSE Was 42HS04 Was 42HS4 - D

24

5HM13

CLAMP

25

5HM24

CLAMP

26

5HM55

CLAMP

27

7113340

CAP. DIESEL

27

7121223

CAP. DIESEL LOCKING locking - optional

27

6661114

CAP. DIESEL

27

6661696

CAP, FUEL LOCKING locking - optional

28

7166430

BRACKET THROTTLE

29

6667170

PUMP 193 mm (7.6'') long

30

6667353

FILTER ASSY Ref. 31

31

6667352

FILTER, FUEL W/SEPARATOR 12

32

6715183

ELBOW

33

HOSE, FUEL RETURN NLA - 1300 mm (51.18'') long - Order Ref. 47

34

HOSE, FUEL NLA - 190 mm (7.5'') long - Order Ref. 49

35

HOSE, FUEL NLA - 85 mm (3.3'') long - Order Ref. 46

36

HOSE, FUEL NLA - 1290 mm (50.8'') long - Use W/Ref. 29 - Order Ref. 46

36

HOSE, FUEL NLA - 1340 mm (52.75'') long - Use W/Ref. 50 - Order Ref. 46

37

29CM825

BOLT

38

30H32

CLIP

39

42HS04

CLAMP, HOSE Was 42HS04 Was 42HS4 - D

40

51DM8

NUT

41

5HM14

CLAMP

42

7163022

ENG, V2403MDI EPA IT4 / EU STG IIIB See Illustration ENGINE & GASKET KITS/ EM8103

43

7201862

BRACKET, FILTER

44

HOSE, FUEL NLA - 184 mm (7.2'') long - Order Ref. 49

45

HOSE, FUEL NLA - 341 mm (13.4'') long - Order Ref. 49

46

6577821

HOSE bulk - sold per foot

47

6578169

HOSE bulk - sold per foot

48

6578172

HOSE bulk - sold per foot

49

6577822

HOSE bulk - sold per foot

50

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long

51

7219755

PUMP, PRIMER HAND

52

5HM15

CLAMP

53

HOSE, FUEL NLA - 85 mm (3.3'') long - Order Ref. 49
