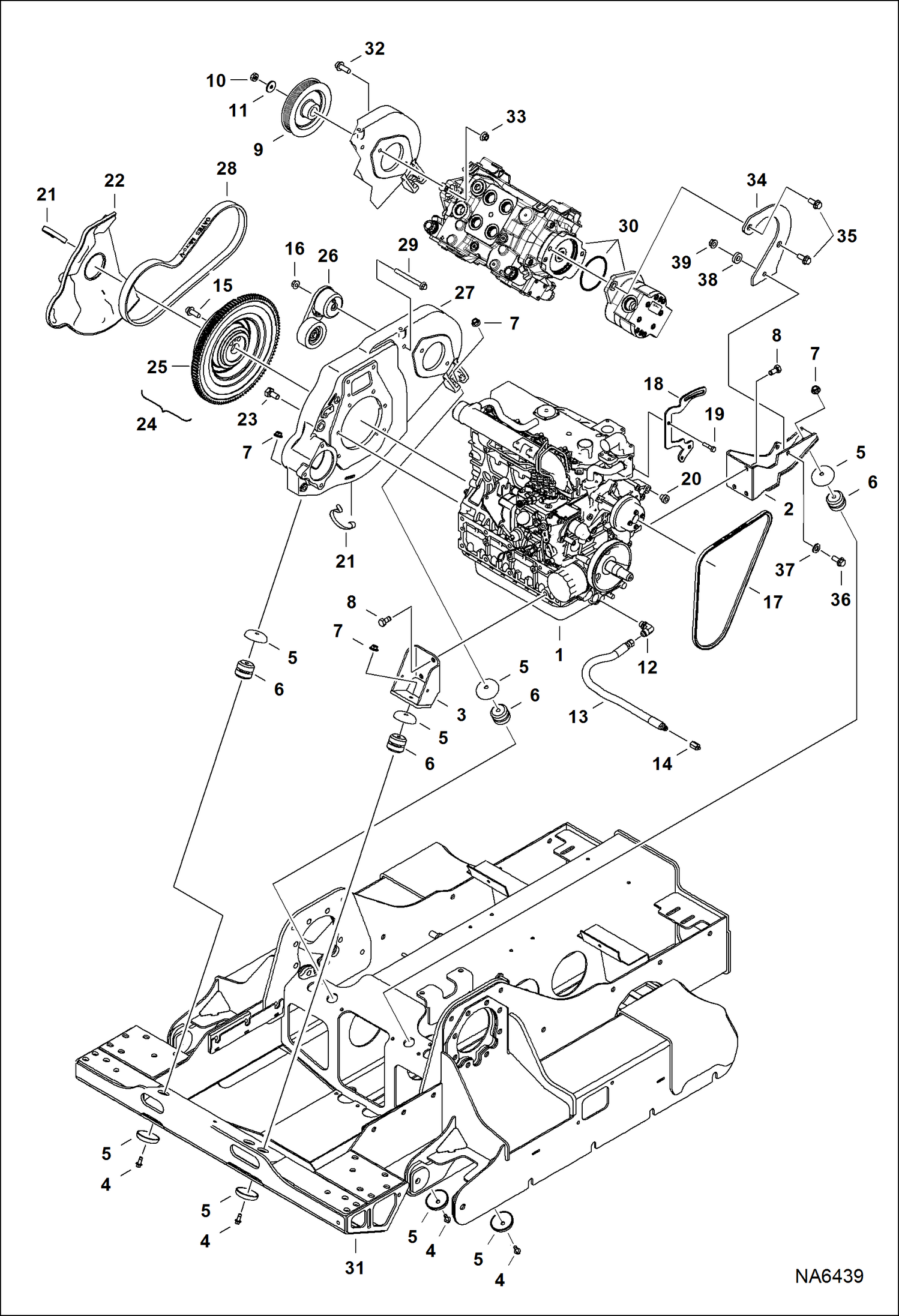

Запчасти Bobcat T-Series ENGINE & ATTACHING PARTS (Belt Drive System & Engine Mounts) (Selectable Joystick Control) POWER UNIT

1

7163022

ENG, V2403MDI EPA IT4 / EU STG IIIB W/Ref. 30

2

7195046

MOUNT, ENGINE Was 7163326 - A

3

7158596

ENGINE MOUNT W/A

4

29CM1070

BOLT

5

7110825

SHIELD ENG MOUNT

6

6688383

DAMPER VIBRATION

7

51DM10

NUT

8

6719827

BOLT

9

7150144

PULLEY, PUMP

10

96D12

NUT

11

6576033

WASHER

12

7164510

FITTING HYD

13

7163085

HOSE ASSEMBLY

14

36K6

CAP

15

6598275

BOLT

16

51DM10

NUT

17

7190530

BELT, ALTERNATOR Was 7165426 - A

18

7183210

MOUNT, ALTERNATOR Was 6730867 - A

19

1CM880

BOLT

20

6817566

BUSHING

21

6703022

CLIP

22

7163331

SHIELD DRIVE

23

6733378

SCREW

24

7160532

FLYWHEEL ASSY Ref. 25-26

25

6510470

RING GEAR

26

6689611

IDLER MICRO-V

27

7155887

MOUNT, ENGINE

28

7162827

BELT

29

29CM1080

SCREW

30

7012355

PUMP ASSY TANDEM See Illustration HYDROSTATIC PUMP / GEAR PUMP/ NA6440

31

7111343

TRANSMISSION W/A See Illustration MAIN FRAME/ EM7430

32

17C828

BOLT

33

83D8

NUT 5

34

7171122

BRACKET

35

7131273

SCREW

36

30CM1240

BOLT

37

25E21

WASHER 5

38

6716408

SPACER

39

51DM12

NUT
