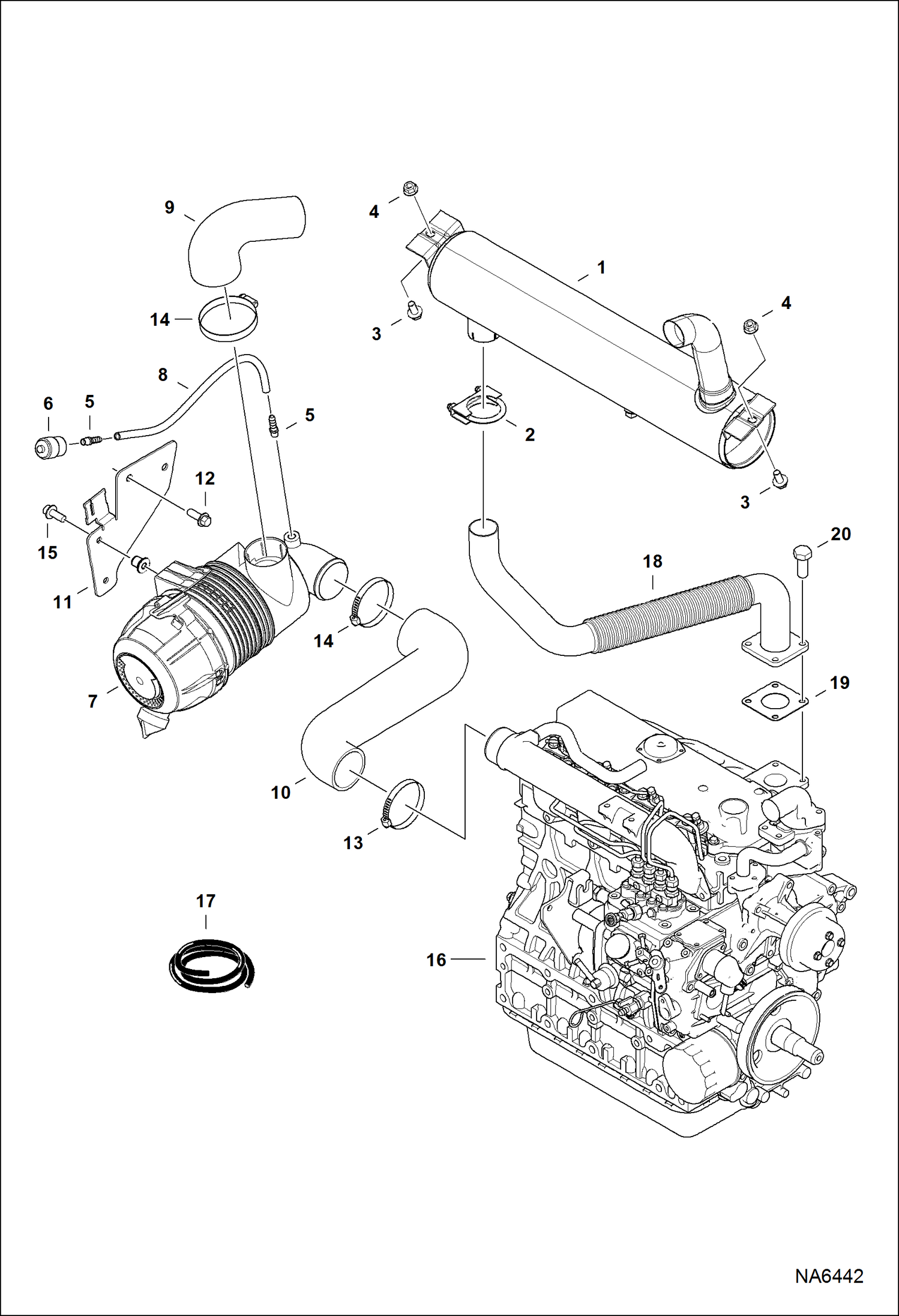

Запчасти Bobcat T-Series ENGINE & ATTACHING PARTS (Air Cleaner & Muffler) POWER UNIT

1

7111390

MUFFLER

2

6677363

CLAMP, FULL CIRCLE

3

29CM1020

BOLT

4

51DM10

NUT

5

6505813

CONNECTOR

6

6515007

GAUGE

7

6689585

FILTER AIR See Illustration AIR CLEANER/ EM7953

8

HOSE, GAUGE NLA - 400 mm (15.75'') long - Order Ref. 17

9

7130972

HOSE AIR

10

7158599

HOSE AIR FILTER

11

7163087

BRACKET AIR FILTER

12

26GM10030

BOLT

13

42HL300

CLAMP

14

42HL325

CLAMP

15

29CM816

SCREW

16

7163022

ENG, V2403MDI EPA IT4 / EU STG IIIB See Illustration ENGINE & GASKET KITS/ EM8103

17

6557720

HOSE bulk - sold per foot

18

7164552

TUBE FLEX

19

6727753

GASKET

20

6701123

SCREW
