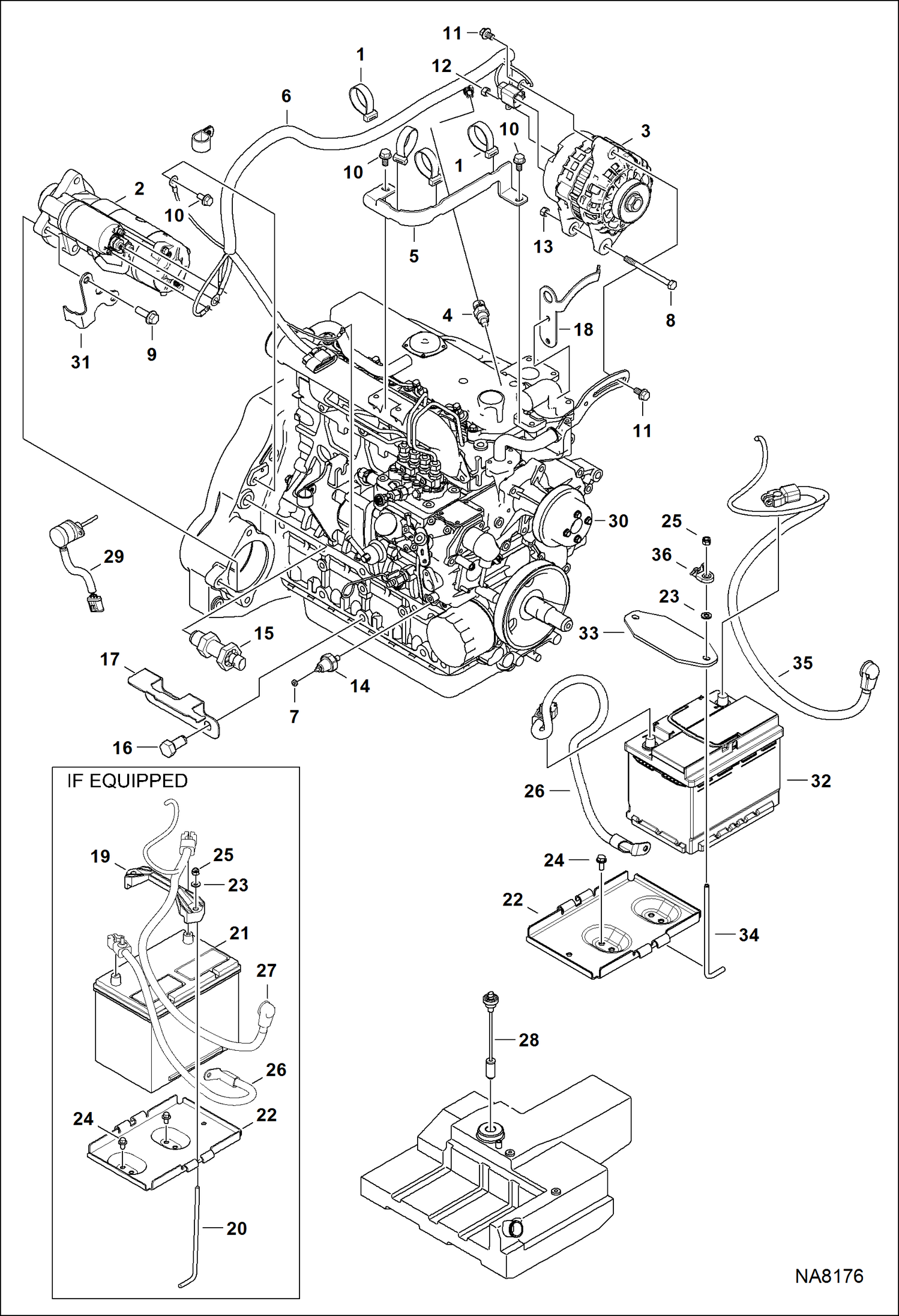

Запчасти Bobcat T-Series ELECTRICAL CIRCUITRY (Engine Sensors, Battery, Alternator & Starter) ELECTRICAL SYSTEM

1

6624289

STRAP, TIE Was 6915851 - B,D

2

6685190

STARTER See Illustration STARTER/ EM8861

3

6690593

ALTERNATOR 90A See Illustration ALTERNATOR/ EM5289 90A

4

6718414

SENDER, TEMP ENG

5

7116956

BRACKET

6

7193487

HARNESS, ENGINE Was 7161091 - A

7

12D8

NUT

8

1CM8100

SCREW

9

29CM1030

BOLT

10

29CM816

SCREW

11

29CM820

SCREW

12

43DM8

NUT

13

53DM8

NUT

14

6631010

SWITCH, PRESS OIL ENG

15

6693921

SENSOR, RPM

16

6719827

BOLT

17

7182746

BRACKET, HARNESS

18

7192853

HARNESS BRACKET

19

6569203

CLAMP

20

6576280

BOLT

21

6674687

BATTERY, DRY 600 AMP Was 6673865 - A

22

6718260

BATTERY PAN

23

25E15

WASHER

24

29CM820

SCREW

25

59D5

NUT 5

26

6729008

CABLE negative

27

6731256

CABLE positive

28

7179839

SENSOR FUEL See Illustration ENGINE & ATTACHING PARTS/ NA6349 Was 6680438 - A

29

6691498

SOLENOID, SHUTOFF FUEL

30

7163022

ENG, V2403MDI EPA IT4 / EU STG IIIB

31

7219707

BRACKET
