Запчасти Bobcat T-Series AUXILIARY HYDRAULICS (Selectable Joystic Controls) HYDRAULIC SYSTEM

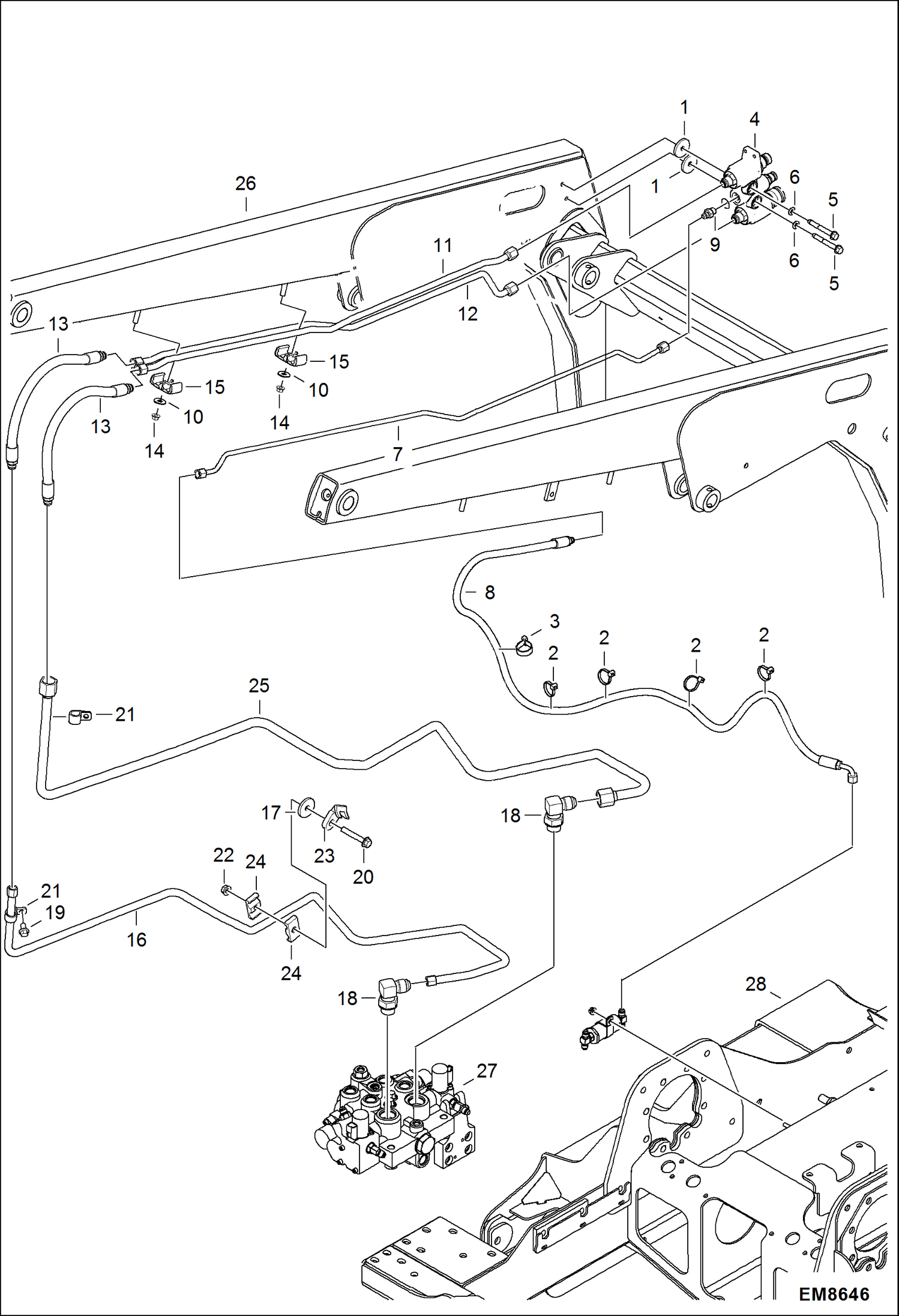

Схема запчастей Bobcat T-Series - AUXILIARY HYDRAULICS (Selectable Joystic Controls) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

872229

WASHER

2

6624289

STRAP, TIE Was 6915851 - A

3

6678669

STRAP

4

6678951

BLOCK ASSY.

5

84G3748

BOLT

6

7120149

O-RING, RETAINING

7

7178866

TUBELINE AUX DRAIN

8

7178867

HOSE ASSEMBLY

9

15KB0606

FITTING, HYD CONNECTOR

9

79K6

O RING 10

10

17EM100

WASHER

11

7178864

TUBELINE AUX Was 7149389 - A

12

7178865

TUBELINE AUX Was 7149390 - A

13

7124975

HOSE ASSY LIFT CYL

14

51DM10

NUT

15

6717933

CLAMP

16

7163888

TUBELINE AUX

17

17EM100

WASHER

18

17KB1016

FITTING, HYD ELBOW

18

79K6

O RING 10

19

26GM8020

SCREW

20

29CM850

SCREW

21

30H37

CLAMP

22

51DM8

NUT

23

6679034

MOUNT

24

6701893

CLAMP

25

7163898

TUBELINE

26

7163105

BOOM ASSY See Illustration LIFT ARM/ EM7414

27

7164420

VALVE ASSY See Illustration HYDRAULIC CONTROL VALVE/ EM5243

28

7111343

TRANSMISSION W/A See Illustration MAIN FRAME/ EM7430

Выбрано товаров: 30
