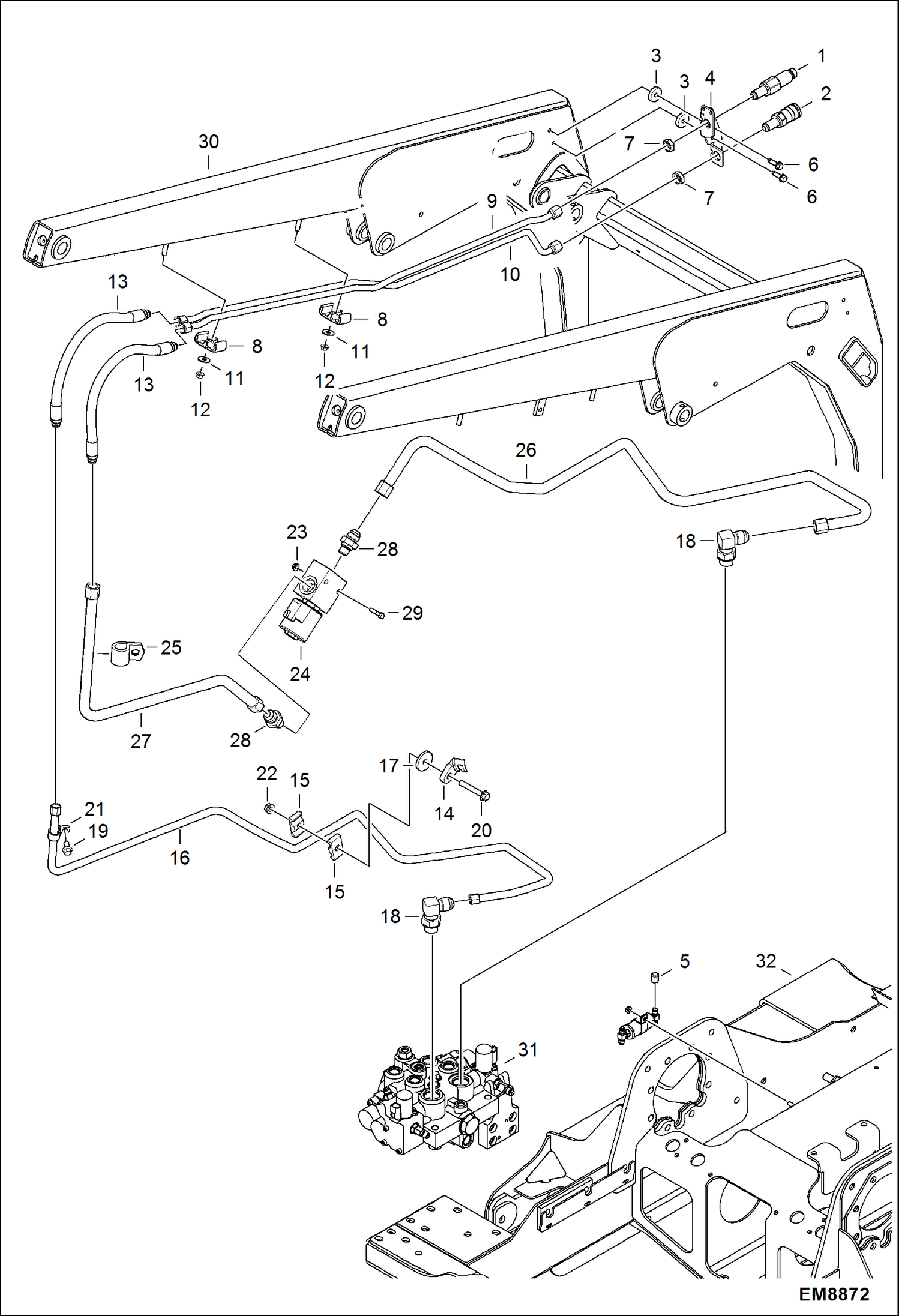

Запчасти Bobcat T-Series AUXILIARY HYDRAULICS (Manual Controls) HYDRAULIC SYSTEM

1

6676444

COUPLER, FF MALE

2

6676446

COUPLER, FF FEMALE

3

6732322

SPACER

4

7178868

MOUNT, COUPLER

5

36K5

CAP

6

84G3720

BOLT

7

86F7

LOCK NUT

8

6717933

CLAMP

9

7178864

TUBELINE AUX Was 7149389 - A

10

7178865

TUBELINE AUX Was 7149390 - A

11

17EM100

WASHER

12

51DM10

NUT

13

7124975

HOSE ASSY LIFT CYL

14

6679034

MOUNT

15

6701893

CLAMP

16

7163888

TUBELINE AUX

17

17EM100

WASHER

18

17KB1016

FITTING, HYD ELBOW

18

79K16

O RING 10

19

26GM8020

SCREW

20

29CM850

SCREW

21

30H37

CLAMP

22

51DM8

NUT

23

51DM6

NUT

24

6693244

VALVE, LOCK LIFT

25

30H37

CLAMP

26

7163886

TUBELINE AUX

27

7163887

TUBELINE AUX

28

15KB1008

FITTING, HYD CONNECTOR

28

79K8

O RING 10

29

1CM650

SCREW

30

7163105

BOOM ASSY See Illustration LIFT ARM/ EM7414

31

7113129

VALVE ASSY SF SL See Illustration HYDRAULIC CONTROL VALVE/ EM7886

32

7111343

TRANSMISSION W/A See Illustration MAIN FRAME/ EM7430
