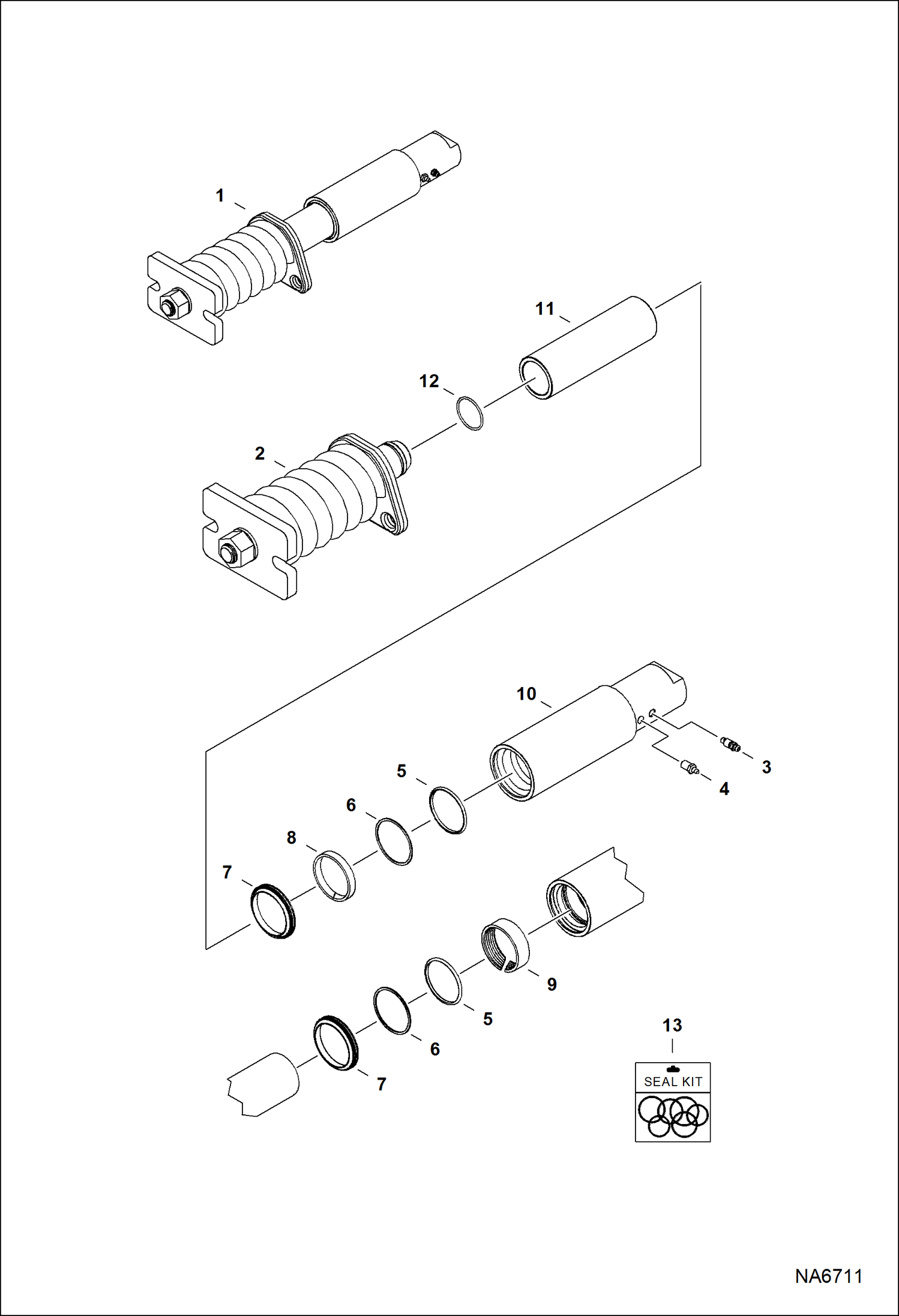

Запчасти Bobcat T-Series TRACK TENSIONER DRIVE TRAIN

1

TENSIONER, TRACK ASSY NLA - Ref. 2-7 & 9-12 - Order 7181328 tensioner - Was 7145076 - A

1

7181328

TENSIONER, TRACK ASSY Ref. 2-8 & 10-12

2

SPRING ASSY NLA - Order Ref. 1

3

6645812

SCREW, BLEED

4

6655752

FITTING 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE

5

6672338

O-RING

6

6685154

RING, BACK-UP

7

6686968

SEAL, WIPER ROD

8

6688839

WEAR RING 9,53 mm (0.38'') wide - Use W/Ref. 1 (7181328 tensioner)

9

7000773

RING, WEAR 19,05 mm (.75'') wide - Use W/Ref. 1 (NLA/ 7145076 tensioner)

10

TUBE, GREASE NLA - Use W/Ref. 9 - Order 7180603 tube and Ref. 13 seal kit - Was 7164571 - A

10

7180603

TUBE, TENSIONER Use W/Ref. 8

11

7135356

SHAFT, CHROME

12

25K30118

O RING 10

13

7163219

KIT, SEAL Ref. 5-9
