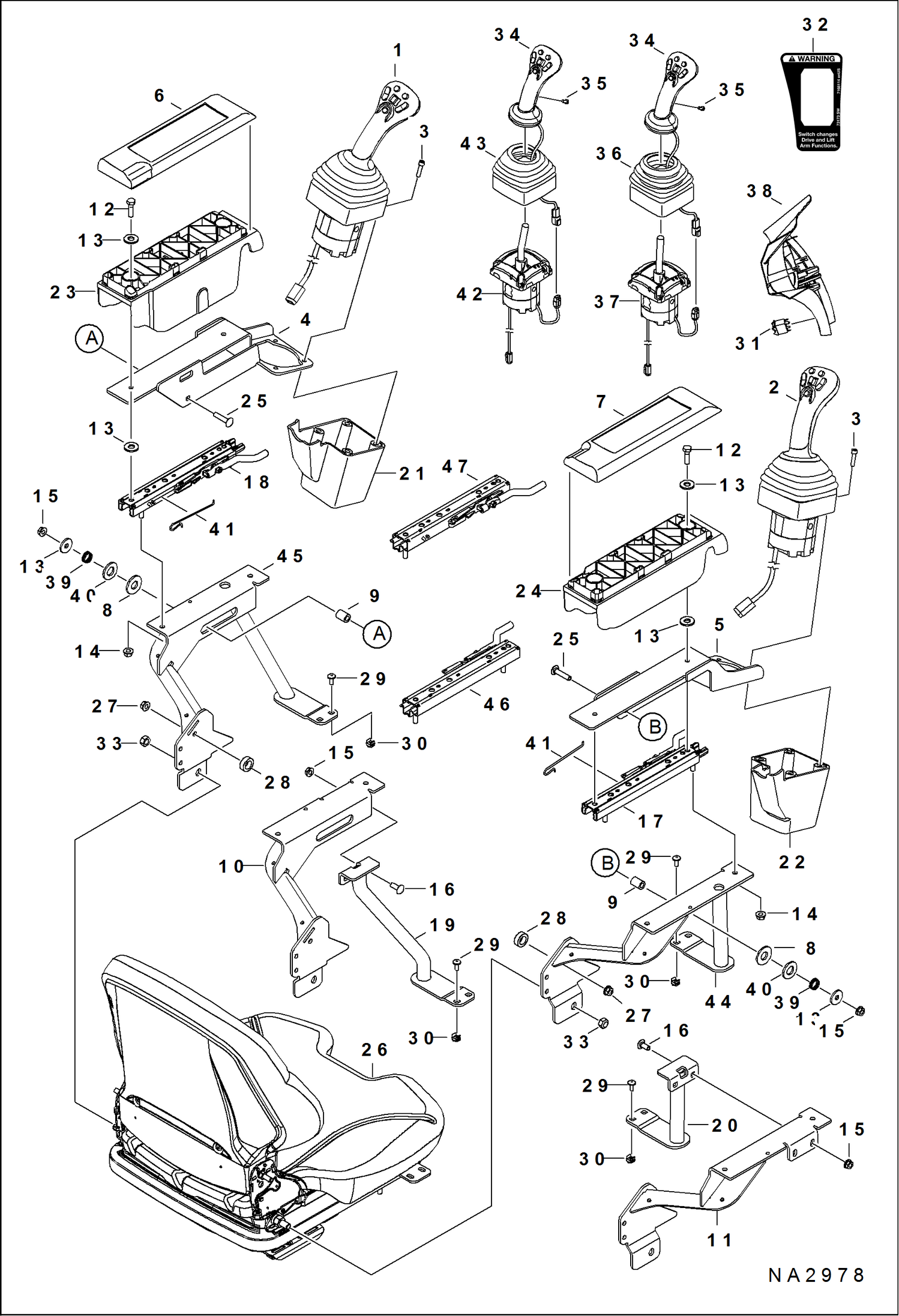

Запчасти Bobcat S-Series CONTROLS ELECTRICAL (Armrest Assembly) (S/N ACS711157 & Above, ACSL11127 & Above) ELECTRICAL SYSTEM

1

7003628

JOYSTICK, LH SJC - 11 degree travel - 3 pleat boot - Ref 34 - 37

1

7008371

JOYSTICK, LH SCPA - 17 degree travel - 3 pleat boot - Ref 34 - 37

1

7023150

JOYSTICK, LH ASSY SJC - 17 degree travel - 4 pleat boot - Ref 34, 35, 42 & 43

2

7003629

JOYSTICK, RH SJC - 11 degree travel - 3 pleat boot - Ref 34 - 37

2

7008370

JOYSTICK, RH SCPA - 17 degree travel - 3 pleat boot - Ref 34 - 37

2

7023149

JOYSTICK, RH ASSY SJC - 17 degree travel - 4 pleat boot - Ref 34, 35, 42 & 43

3

29G416

BOLT

4

7197922

MOUNT, CONTROLS LH

5

7197921

MOUNT, CONTROLS RH

6

7157704

COVER ARMREST LH

7

7157671

COVER ARMREST, RH

8

7165634

WASHER, PLASTIC

9

7197916

SPACER

10

MOUNT, SEAT LH NLA - Order Ref. 45 & (2) each of Ref. 29 & 30 - Was 7197919 - A

11

MOUNT, SEAT RH NLA - Order Ref. 44 & (2) each of Ref. 29 & 30 - Was 7197917 - A

12

1CM830

BOLT

13

25E18

WASHER

14

51DM8

NUT

15

97D5

NUT

16

10C512

BOLT

17

7200887

SLIDE W/O torsion spring - Also Order Ref. 39

18

7200888

SLIDE W/O torsion spring - Also Order Ref. 39

19

SUPPORT, TUBE LH NLA - Order Ref. 45 & (2) each of Ref. 29 & 30 - Was 7168849 - A

20

SUPPORT, TUBE RH NLA - Order Ref. 44 & (2) each of Ref. 29 & 30 - Was 7168848 - A

21

7146265

COVER, LH SJC

22

7146264

COVER, RH SJC

23

7177197

SHELL, ARMREST LH

24

7177196

SHELL, ARMREST RH

25

10C524

BOLT

26

SEAT See Illustration SEAT KIT - 80 mm/ NA2042 - std.

26

SEAT See Illustration SEAT KIT - 80 mm/ NA2427 - suspension

26

SEAT See Illustration SEAT/ NA2428 - air suspension

27

51DM8

NUT

28

7162176

SPACER

29

6803202

SCREW

30

7170765

NUT

31

7001710

SWITCH, ISO SJC

32

7168114

DECAL, SWITCH SJC

33

86D7

NUT

34

6689922

HANDLE LH

34

6689923

HANDLE RH

34

7015475

HANDLE RH - SCPA

35

6689927

BOLT

36

7003698

BOOT, RUBBER 3 pleat boot

37

6697938

BASE, JOYSTICK LH - SJC

37

7010193

BASE, JOYSTICK LH - SCPA

37

6697939

BASE, JOYSTICK RH - SJC

37

7010192

BASE, JOYSTICK RH - SCPA

38

PANEL, RH See Illustration OPERATOR CAB/ NA2473

39

7197915

SPRING, COMPRESSION

40

6701174

WASHER

41

7199853

SPRING, TORSION

42

7023152

BASE, JOYSTICK LH LH - SJC

42

7023151

BASE, JOYSTICK RH RH - SJC

43

7023154

BOOT, RUBBER LH LH - 4 pleat boot

43

7023153

BOOT, RUBBER RH RH - 4 pleat boot

44

7229391

ARM REST, RH Was 7220855 - A

45

7229392

ARM REST, LH Was 7220856 - A
