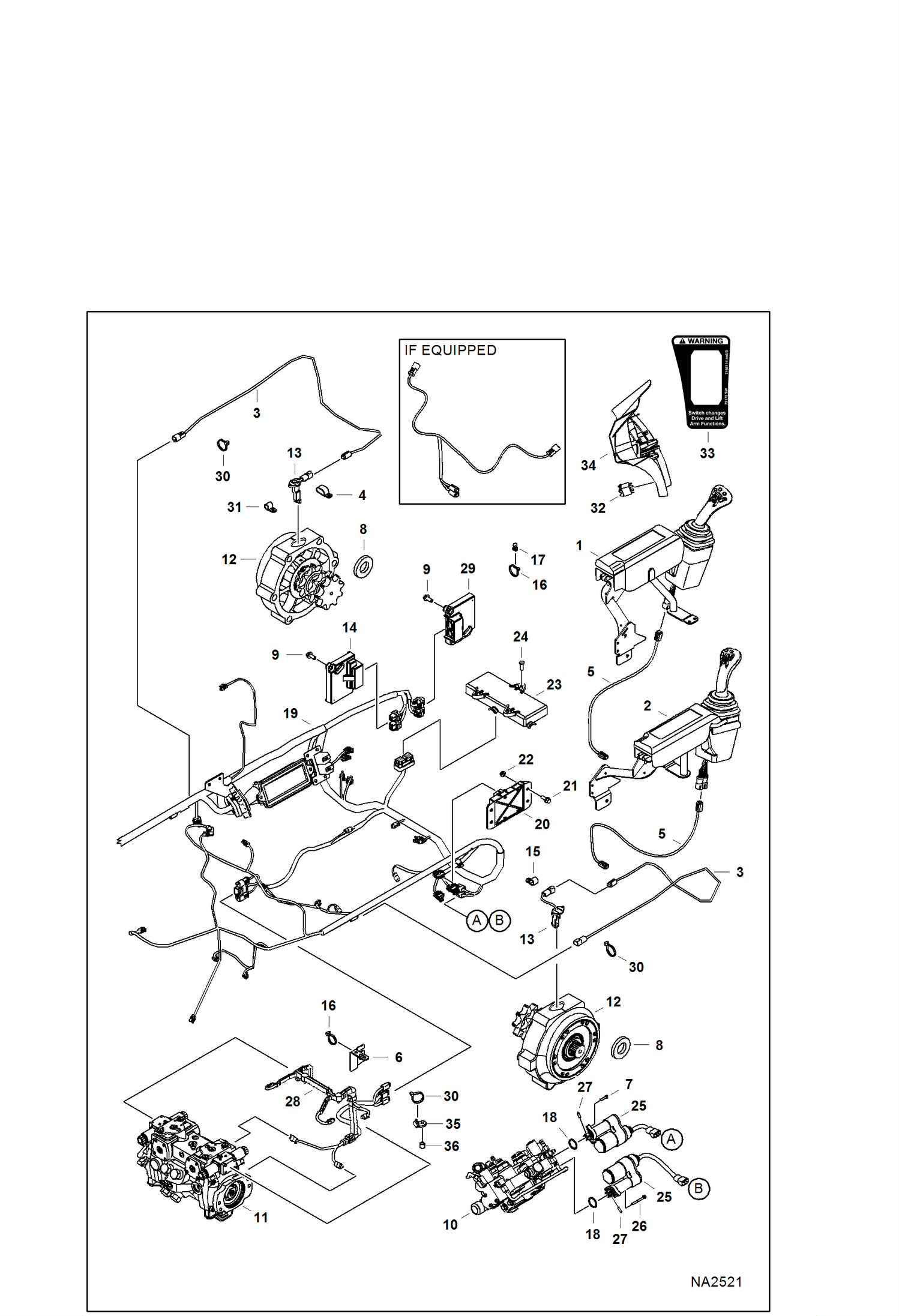

Запчасти Bobcat S-Series CONTROLS ELECTRICAL (Actuators, Controllers & Harnesses) ELECTRICAL SYSTEM

1

JOYSTICK, LH See Illustration CONTROLS ELECTRICAL/ NA2522

2

JOYSTICK, RH See Illustration CONTROLS ELECTRICAL/ NA2522

3

HARNESS, ADAPTER SENSOR See BTI419 - NLA - Was 7168115 - A

4

31H38

CLAMP

5

7163706

HARNESS, JOYSTICK

6

7122359

BRACKET

7

29G416

BOLT

8

6680055

MAGNET

9

7168429

BOLT, CONTROLLER flange head - M10 x 25 mm

10

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2483 - manual controls

10

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2751 - SJC

11

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA2507

12

CARRIER, MOTOR See Illustration MOTOR CARRIER/ NA2631

13

SENSOR, SPEED TRAVEL See BTI419 - NLA - Was 6677181 - A

13

25K20100

O RING 10

14

6691288

CONTROLLER, AUX CONTROL

15

30H42

CLAMP

16

6690690

STRAP, TIE

17

6690689

MOUNT, FIR TREE

18

58K120

O-RING

19

HARNESS, MFR See Illustration ENGINE ELECTRICAL CIRCUITRY/ NA2509 - W/Ref. 6

20

6680410

CONTROLLER plastic - W/ 3-connector plug

21

17C616

BOLT 5

22

97D6

NUT 10

23

6679485

CONTROLLER SJC

24

43C616

BOLT

25

7101672

ACTUATOR W/Ref. 18

26

69G436

BOLT

27

7108236

PIN

28

7198705

HARNESS, PUMP Was 7194966 - A

29

6693353

CONTROLLER, GATEWAY

30

6624289

STRAP, TIE

31

30H38

CLIP

32

7001710

SWITCH, ISO SJC

33

7168114

DECAL, SWITCH SJC

34

PANEL, RH See Illustration OPERATOR CAB/ NA2473
