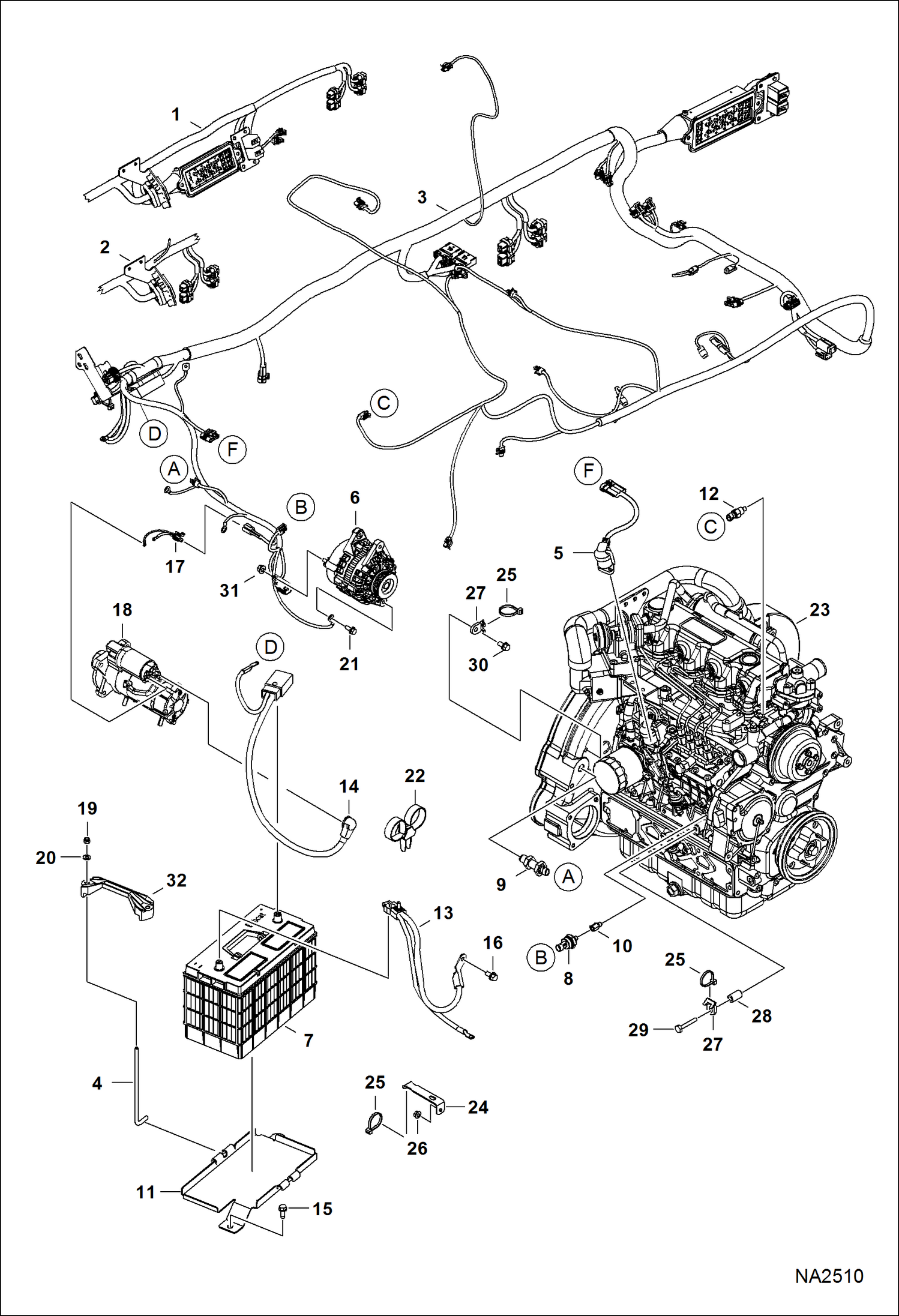

1
HARNESS, MFR See Illustration ENGINE ELECTRICAL CIRCUITRY/ NA2509
2
HARNESS, MFR See Illustration ENGINE ELECTRICAL CIRCUITRY/ NA2959
3
HARNESS, MFR See Illustration ENGINE ELECTRICAL CIRCUITRY/ NA6671
4
6576280
BOLT
5
6689034
SOLENOID, SHUTOFF FUEL fuel shutoff - W/ 9.45'' (240,03 mm) lead
6
ALTERNATOR See Illustration ALTERNATOR/ B22386
7
6665427
BATTERY, DRY 950 AMP
8
6697920
SENSOR, PRESS OIL ENG
9
6693921
SENSOR, RPM
10
7102451
FITTING
11
7159352
PAN, BATTERY
12
6718414
SENDER, TEMP ENG
13
7170798
CABLE, NEGATIVE
14
7162967
CABLE, POSITIVE
15
84G3712
BOLT 5
16
35C612
BOLT
17
6733370
HARNESS
18
STARTER See Illustration STARTER/ B16488R
19
59D5
NUT 5
20
25E15
WASHER
21
45C620
BOLT
22
6678668
STRAP, DUAL TIE
23
ENGINE See Illustration ENGINE & GASKET KITS/ NA5149
24
7120084
BRACKET
25
6624289
STRAP, TIE
26
51DM8
NUT
27
6679034
MOUNT
28
7101893
SPACER
29
7110310
SCREW
30
35C612
BOLT
31
43DM8
NUT
32
6569203
CLAMP
