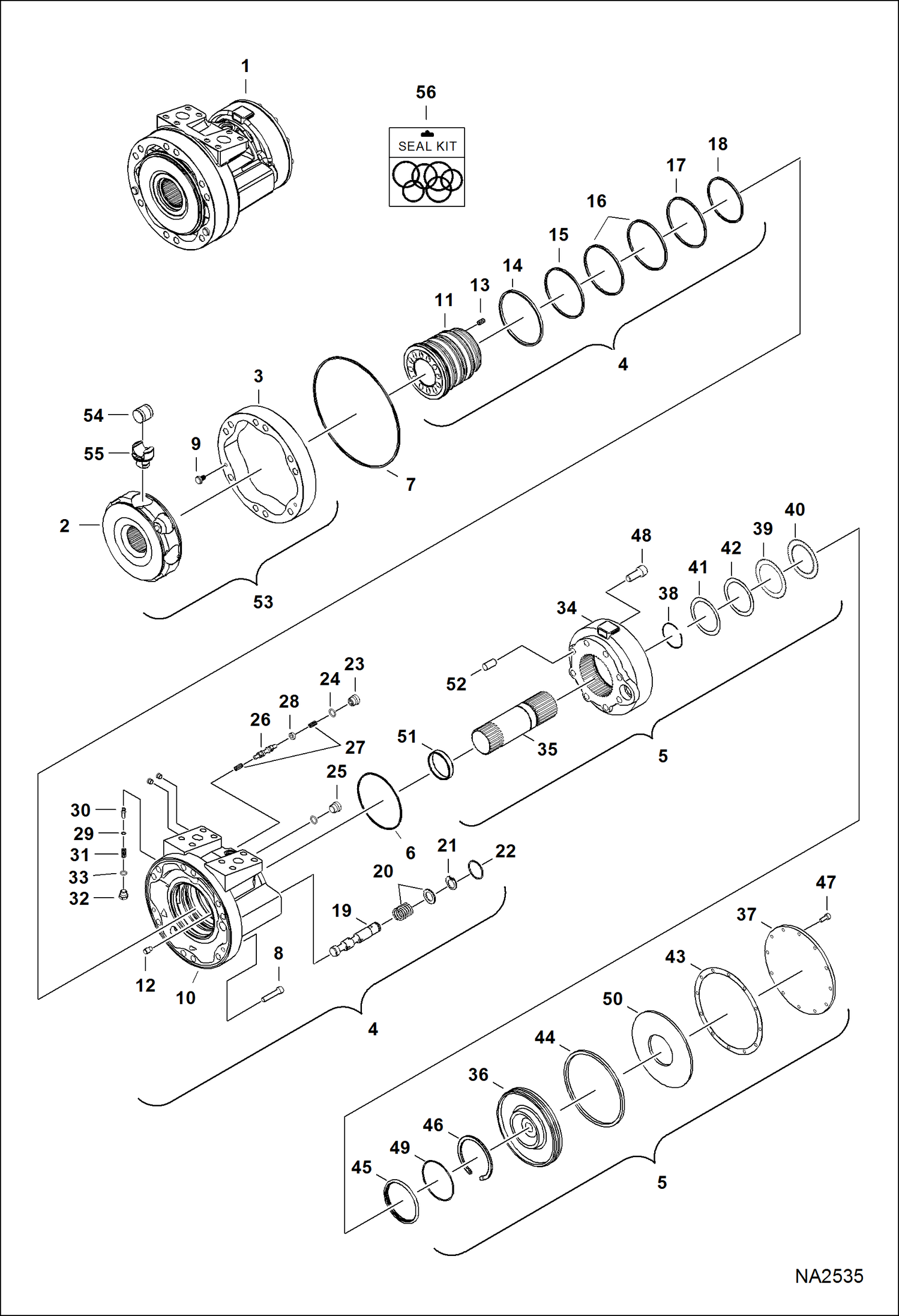

Запчасти Bobcat S-Series HYDROSTATIC MOTOR & BRAKE (S/N ACS711001 - 12799, ACSL11001 - 12349) HYDROSTATIC SYSTEM

1

6698327

MOTOR, DRIVE HYD Model R921810774 - Ref. 2-55

2

6690157

ROTOR GROUP

3

6675024

CAM Was 7012051 - A

4

7012052

HOUSING, ASSY

5

6691177

BRAKE ASSY. Ref. 34, 35, 38-42, 48, 51 & 52

6

6675863

QUAD RING Was 6690078 - A

7

6675864

QUAD RING Was 6690033 - D

8

6690039

SCREW

9

6688449

LOCATING PIN

10

6690066

HOUSING

11

6690067

RING

12

6690068

PIN

13

6690031

SPRING

14

6675877

SEAL Was 6675877 - D

15

6675878

SEAL Was 6690070 - D

16

6675879

SEAL Was 6690071 - D

17

6675880

SEAL Was 6690072 - D

18

6690073

SEAL

19

SPOOL NLA - Order Ref. 4 - Was 6690074 - A

20

6675883

KIT, WASHER Was 6675884 - A

21

7012053

RING, SNAP

22

6689090

O-RING Was 6690077 - D

23

6691227

PLUG

24

6689133

O-RING

25

6689129

PLUG

26

6675866

SPOOL

27

6674841

SPRING Was 6690042 - D

28

6675867

WASHER Was 6690043 - D

29

6674343

SHIM Was 6690044 - D

30

6690045

ORIFICE

31

6674344

SPRING Was 6690046 - D

32

6674345

PLUG Was 6690047 - D

33

6676038

O-RING Was 6689132 - D

34

6690082

HOUSING

35

6690084

SHAFT

36

6675889

PISTON Was 6690085 - D

37

6675890

COVER Was 6690086 - D

38

6690081

CLAMP

39

6674192

BRAKE DISC Was 6690087 - D

40

6674193

BRAKE DISC Was 6690088 - D

41

6690089

SHIM 0,1 mm

42

6674191

SHIM 0,3 mm thick - Was 6690090 - A

43

6675892

GASKET Was 6690091 - A

44

6675893

O-RING Was 6690092 - D

45

6689088

QUAD RING Was 6690093 - A

46

6690094

CLAMP

47

6690095

SCREW

48

6690096

SCREW

49

6675897

WASHER Was 6690097 - D

50

6675897

WASHER Was 6690098 - D

51

6675898

BUSHING Was 6690100 - D

52

6691100

PIN Was 6690099 - D

53

ROTARY GROUP NLA - Order Ref. 2 & 3

54

ROLLER NLA - Order Ref. 2

55

PISTON NLA - Order Ref. 2

56

6690005

KIT, SEAL Ref. 6,7, 14-18, 22, 24 & 33
