Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (Motors) (S/N ACS712800 & Above, ACSL12350 & Above) HYDROSTATIC SYSTEM

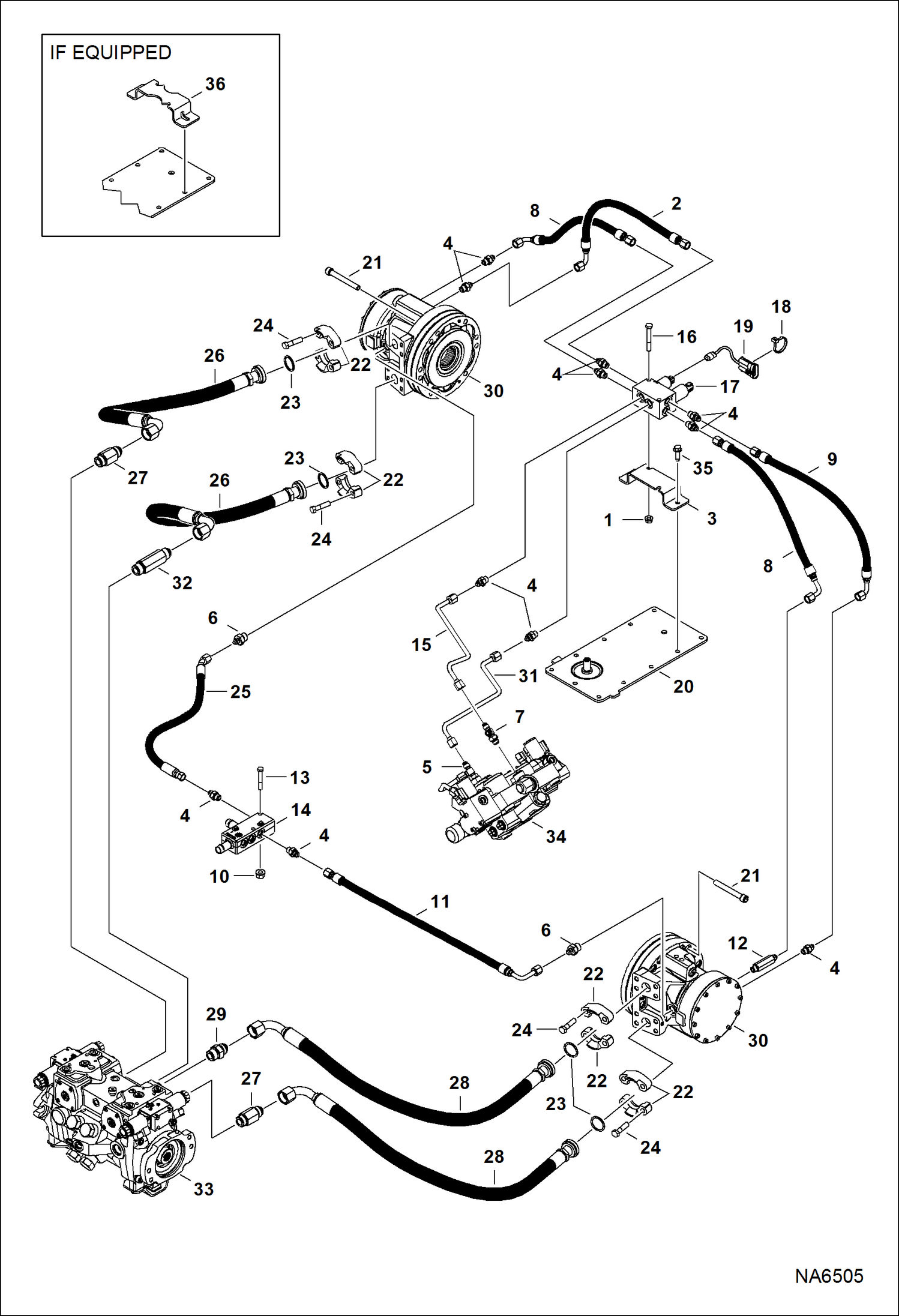

Схема запчастей Bobcat S-Series - HYDROSTATIC CIRCUITRY (Motors) (S/N ACS712800 & Above, ACSL12350 & Above) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

55D6

NUT

2

7124956

HOSE, HYD

3

7209306

MOUNT, VALVE

4

15KB0606

FITTING, HYD CONNECTOR

4

79K6

O RING 10

5

7180987

FITTING, CROSS

5

79K6

O RING 10

6

15KB0608

FITTING, HYD CONNECTOR

6

79K8

O RING 10

7

21KB0606

FTG HYD STRAIGHT TEE

7

79K6

O RING 10

8

7235471

HOSE, HYD Was 7212574 - A

9

7235470

HOSE, HYD Was 7195410 - A

10

86D5

NUT

11

7196698

HOSE, HYD

12

7169116

ADAPTER

12

79K6

O RING 10

13

17C540

BOLT

14

7201981

MANIFOLD, DRAIN CASE See Illustration HYDROSTATIC CIRCUITRY/ NA2503

15

7212583

TUBELINE, HYD

16

17C644

BOLT

17

VALVE, 2-SPEED See Illustration 2-SPEED VALVE/ NA6501 NLA - Was 7211449 - A

18

6624289

STRAP, TIE

19

7159366

HARNESS, 2 SPEED RETURN

20

7213128

COVER, BRAKE See Illustration TRANSMISSION COVERS/ NA2632

21

6717806

BOLT

22

20J16

FLANGE

23

55K219

O'RING

24

17C728

BOLT

25

7176600

HOSE, HYD ASSY

26

7011187

HOSE, HYD ASSY mega seal

27

6815223

FITTING

28

7011186

HOSE, HYD ASSY mega seal

28

79K12

O RING 10

29

15KB1212

FITTING, HYD CONNECTOR

29

79K12

O RING 10

30

7023317

MOTOR, DRIVE HYD 2-SPD See Illustration HYDROSTATIC MOTOR & BRAKE/ NA6497

31

7212582

TUBELINE, HYD

32

6735511

ADAPTER

32

79K12

O RING 10

33

PUMP, HYD TANDEM See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA2507

34

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2751 - manual controls

34

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2483 - SJC

35

84G3720

BOLT

36

MOUNT, VALVE NLA - Order Ref. 3 - Was 7225465 - D

Выбрано товаров: 45
