Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (Motors) (S/N ACS711001 - 12799, ACSL11001 - 12349) HYDROSTATIC SYSTEM

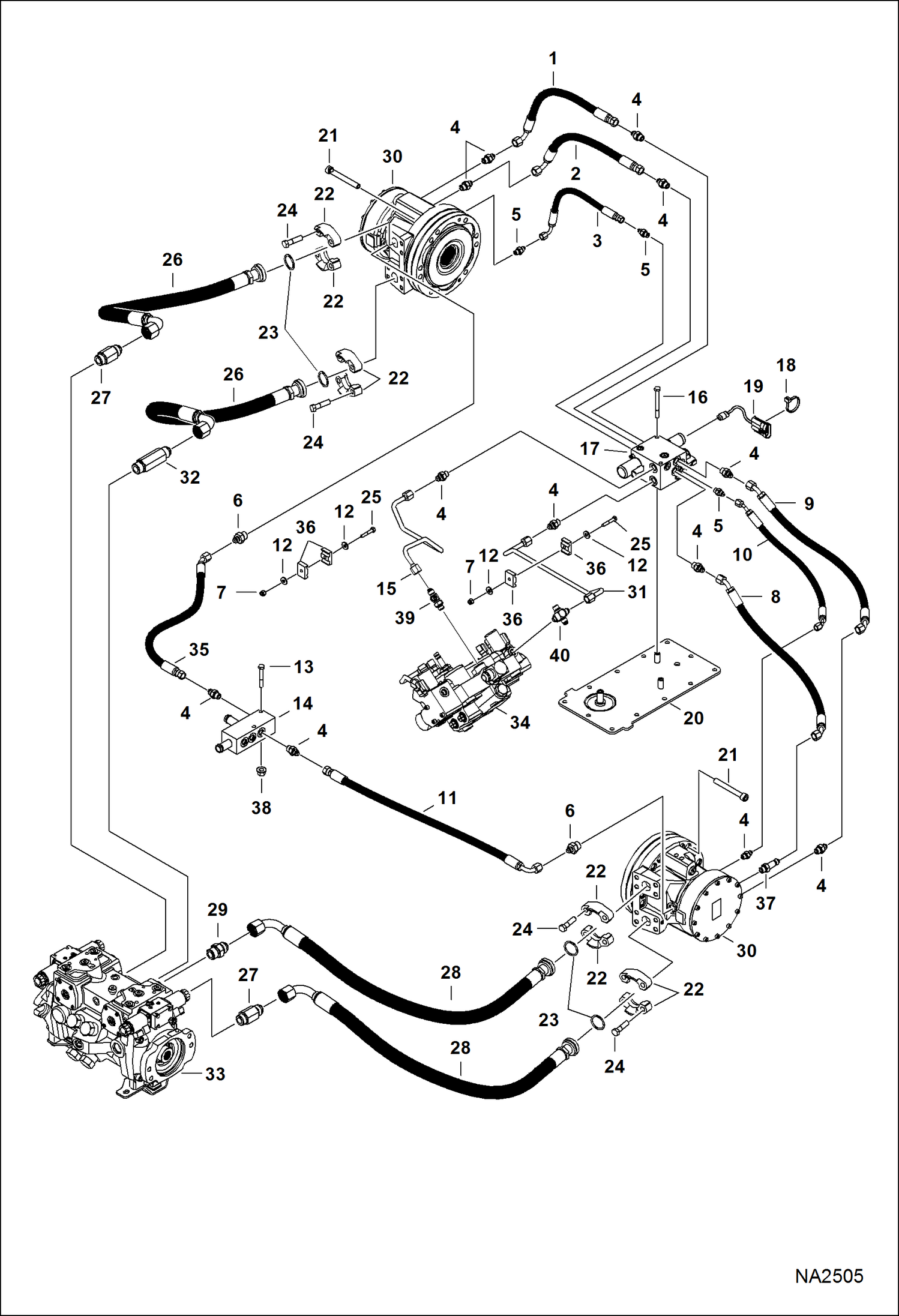

Схема запчастей Bobcat S-Series - HYDROSTATIC CIRCUITRY (Motors) (S/N ACS711001 - 12799, ACSL11001 - 12349) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6717386

HOSE

2

7124956

HOSE, HYD

3

7196361

HOSE, HYD

4

15KB0606

FITTING, HYD CONNECTOR

4

79K6

O RING 10

5

15KB0404

FTG HYD S Connector

5

79K4

O RING 10

6

15KB0608

FITTING, HYD CONNECTOR

6

79K8

O RING 10

7

59D4

NUT 5

8

7176935

HOSE, HYD

9

7176934

HOSE, HYD

10

7196362

HOSE, HYD

11

7196698

HOSE, HYD

12

25E14

WSHR

13

17C540

BOLT

14

MANIFOLD, DRAIN CASE See Illustration HYDROSTATIC CIRCUITRY/ NA2503 - Was 7178129 - A

15

7188927

TUBELINE, HYD

16

17C552

BOLT

17

VALVE, 2 SPEED See Illustration 2-SPEED VALVE/ NA2164

18

6624289

STRAP, TIE

19

7159366

HARNESS, 2 SPEED RETURN

20

7153655

COVER, BRAKE ASSY

21

6717806

BOLT

22

20J16

FLANGE

23

55K219

O'RING

24

17C728

BOLT

25

17C424

BOLT

26

7011187

HOSE, HYD ASSY mega seal

27

6815223

FITTING

28

7011186

HOSE, HYD ASSY mega seal

28

79K12

O RING 10

29

15KB1212

FITTING, HYD CONNECTOR

29

79K12

O RING 10

30

6698327

MOTOR, DRIVE HYD See Illustration HYDROSTATIC MOTOR & BRAKE/ NA2535

31

7176899

TUBELINE, HYD

32

6735511

ADAPTER

32

79K12

O RING 10

33

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA2507

34

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2751 manual controls

34

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2483 SJC

35

7176600

HOSE, HYD ASSY

36

6578870

CLAMP

37

7169116

ADAPTER

37

79K6

O RING 10

38

86D5

NUT

39

21KB0606

FTG HYD STRAIGHT TEE

39

79K6

O RING 10

40

7180987

FITTING, CROSS

40

79K6

O RING 10

Выбрано товаров: 50
