Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (Cooling Fan) HYDROSTATIC SYSTEM

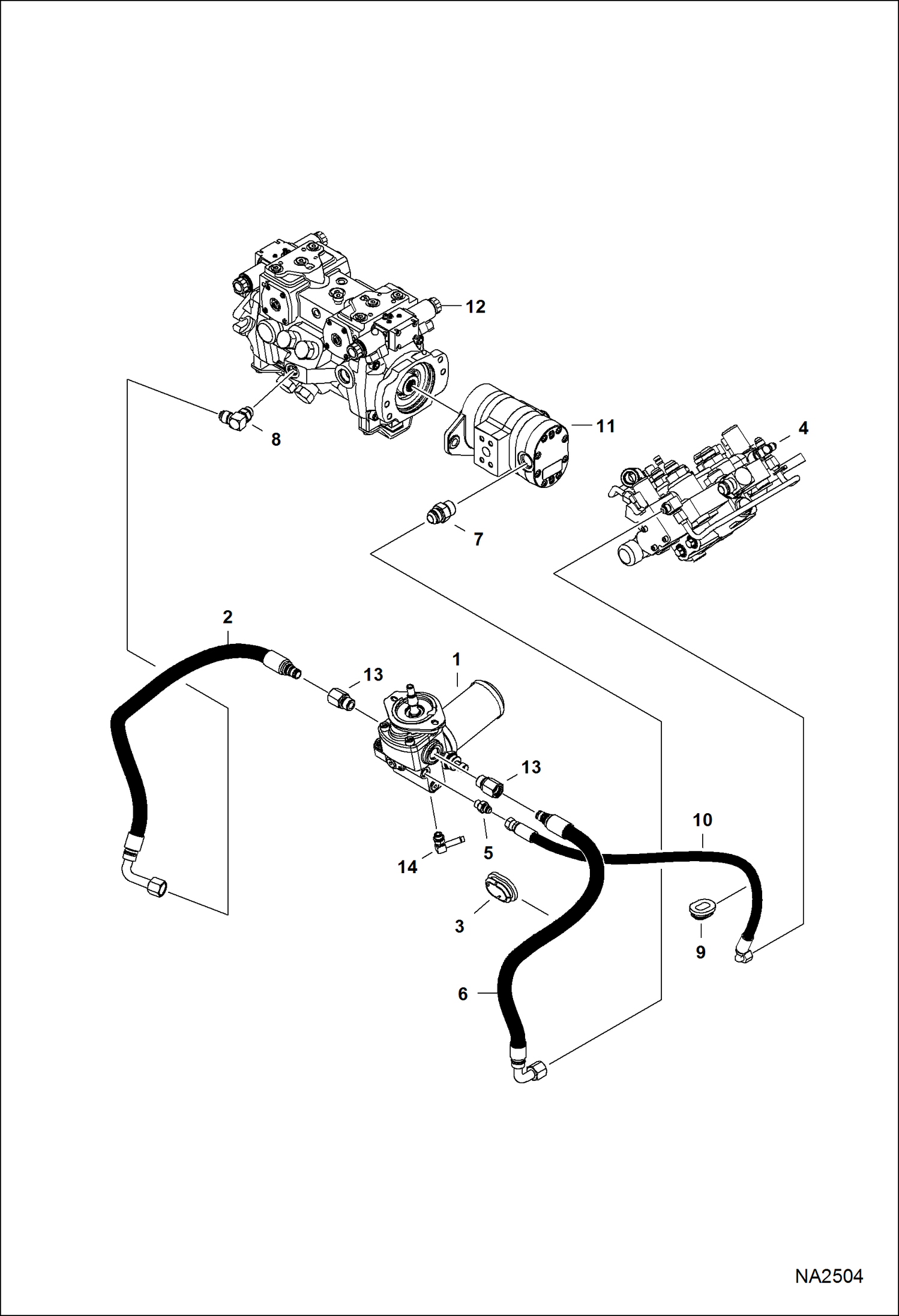

Схема запчастей Bobcat S-Series - HYDROSTATIC CIRCUITRY (Cooling Fan) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

MOTOR, HYD COOLING FAN See Illustration COOLING FAN MOTOR/ MS2514

2

7200551

HOSE, HYD ASSY STC Also Order Ref. 13

3

7002740

GROMMET

4

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2751 - manual controls

4

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2483 - SJC

5

15KB0606

FITTING, HYD CONNECTOR

5

79K6

O RING 10

6

7200552

HOSE, HYD ASSY STC Also Order Ref. 13

7

15KB1012

FITTING, HYD CONNECTOR

7

79K12

O RING 10

8

17KB1008

FITTING, HYD ELBOW

8

79K8

O RING 10

9

7002739

GROMMET

10

7182044

HOSE, HYD

11

PUMP, GEAR See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA2507

12

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA2507

13

15HB1010

ADAPTER, COUPLER quick lock - Also Order Ref. 2 or 6 - Was 15KB1010 - B,D

13

79K10

O RING 10

14

6727313

ELBOW See Illustration HYDROSTATIC CIRCUITRY/ NA2502

Выбрано товаров: 19
