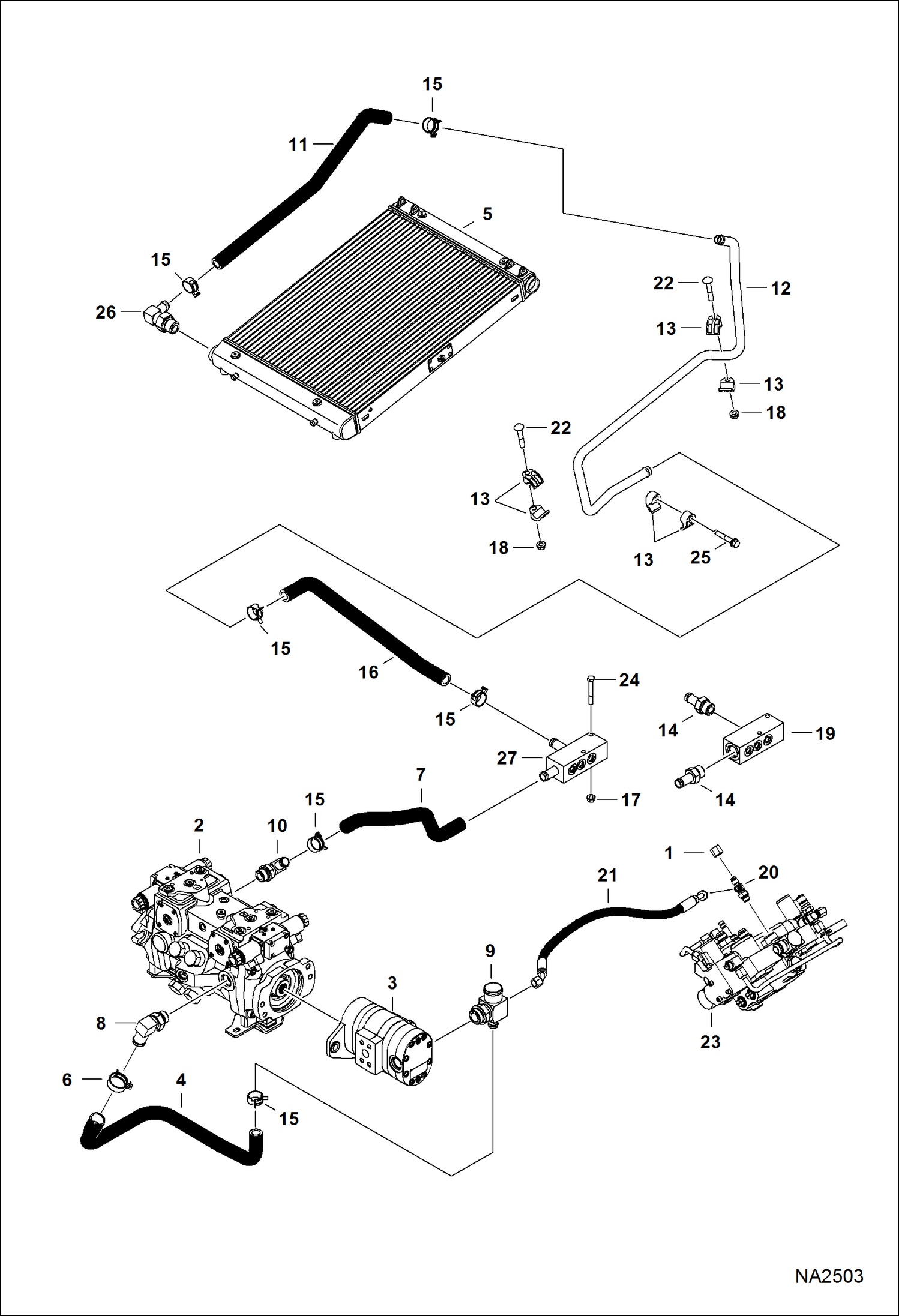

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (Cooler) HYDROSTATIC SYSTEM

1

36K5

CAP

2

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA2507

3

PUMP, GEAR See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA2507

4

7178518

HOSE, HYD FORMED

5

EXCHANGER, OIL COOLER See Illustration RADIATOR/COOLER ASSEMBLY/ NA2506 W/Ref. 26

6

5HM34

CLAMP, HOSE

7

7155668

HOSE, HYD FORMED

8

7015518

VALVE, CHECK

8

79K12

O RING 10

9

7158921

FITTING See Illustration HYDROSTATIC CIRCUITRY/ NA2502

9

79K16

O RING 10

10

7113631

ELBOW

10

79K12

O RING 10

11

7212684

HOSE, HYD FORMED Was 7186873 - A

12

7190648

TUBELINE, HYD

13

7100462

CLAMP

14

6812865

FITTING

14

79K12

O RING 10

15

5HM27

CLAMP

16

7192283

HOSE, DRAIN

17

83D5

NUT 5

18

55D6

NUT

19

MANIFOLD, CASE DRAIN NLA - Order Ref. 27 - Was 7178129 - A

20

21KB0606

FTG HYD STRAIGHT TEE

20

79K6

O RING 10

21

HOSE, HYD NLA - 495,3 mm (19.5'') long - 45 degree fittings - Was 7184315 - A

21

7201263

HOSE, HYD 539,8 mm (21.25'') long - straight fitting & 45 degree fitting

22

10C636

BOLT

23

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2751 - manual controls

23

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2483 - SJC

24

17C540

BOLT

25

84G3736

BOLT

26

FITTING, ELBOW NLA - Order Ref. 5 - Was 7022635 - A

26

79K12

O RING 10

27

7201981

MANIFOLD, DRAIN CASE
