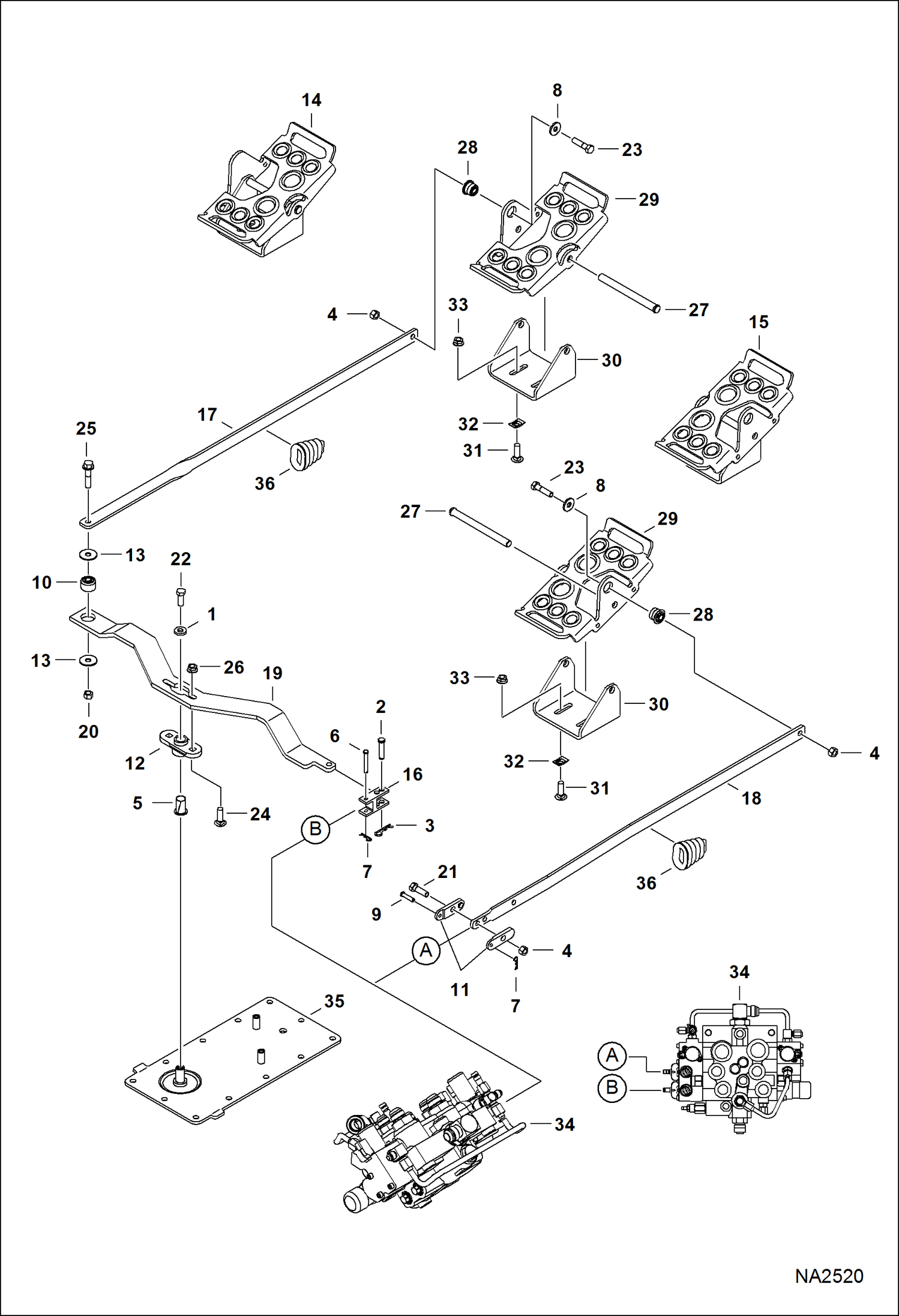

Запчасти Bobcat S-Series CONTROL PEDALS (Manual Controls) HYDRAULIC SYSTEM

1

6557831

WASHER

2

7191333

PIN, CLEVIS

3

1306637

CLIP

4

95D6

NUT

5

6512026

BUSHING

6

7191334

PIN, CLEVIS

7

6513495

COTTER PIN

8

6563914

WASHER

9

6564654

PIN

10

6685060

BUSHING, TORSION

11

6708009

LINK

12

6708043

BUSHING

13

6737388

WASHER

14

7151868

PEDAL ASSY LH - Ref. 28-31

15

7151871

PEDAL ASSY RH - Ref. 28-31

16

7191332

YOKE, FLANGE

17

7188891

LINK, PEDAL

18

7188892

LINK, PEDAL

19

7188893

LINK, BELLCRANK

20

63D6

NUT

21

17C620

BOLT

22

17C616

BOLT 5

23

17C624

BOLT 5

24

37C620

BOLT

25

49C628

BOLT

26

53D6

NUT

27

PIN NLA - Order Ref. 14 or Ref. 15

28

6665701

BUSHING, PRESS FIT

29

PEDAL NLA - Order Ref. 14 or Ref. 15

30

7157611

MOUNT

31

37C620

BOLT

32

6684033

NUT

33

57D6

NUT 5

34

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2751 manual controls

35

COVER See Illustration TRANSMISSION COVERS/ NA2632

36

7153503

BOOT
