Запчасти Bobcat S-Series TILT CYLINDER (RH) (568,3 mm - 22.38 Case Tube Length) (W/O Piston Collar) HYDRAULIC SYSTEM

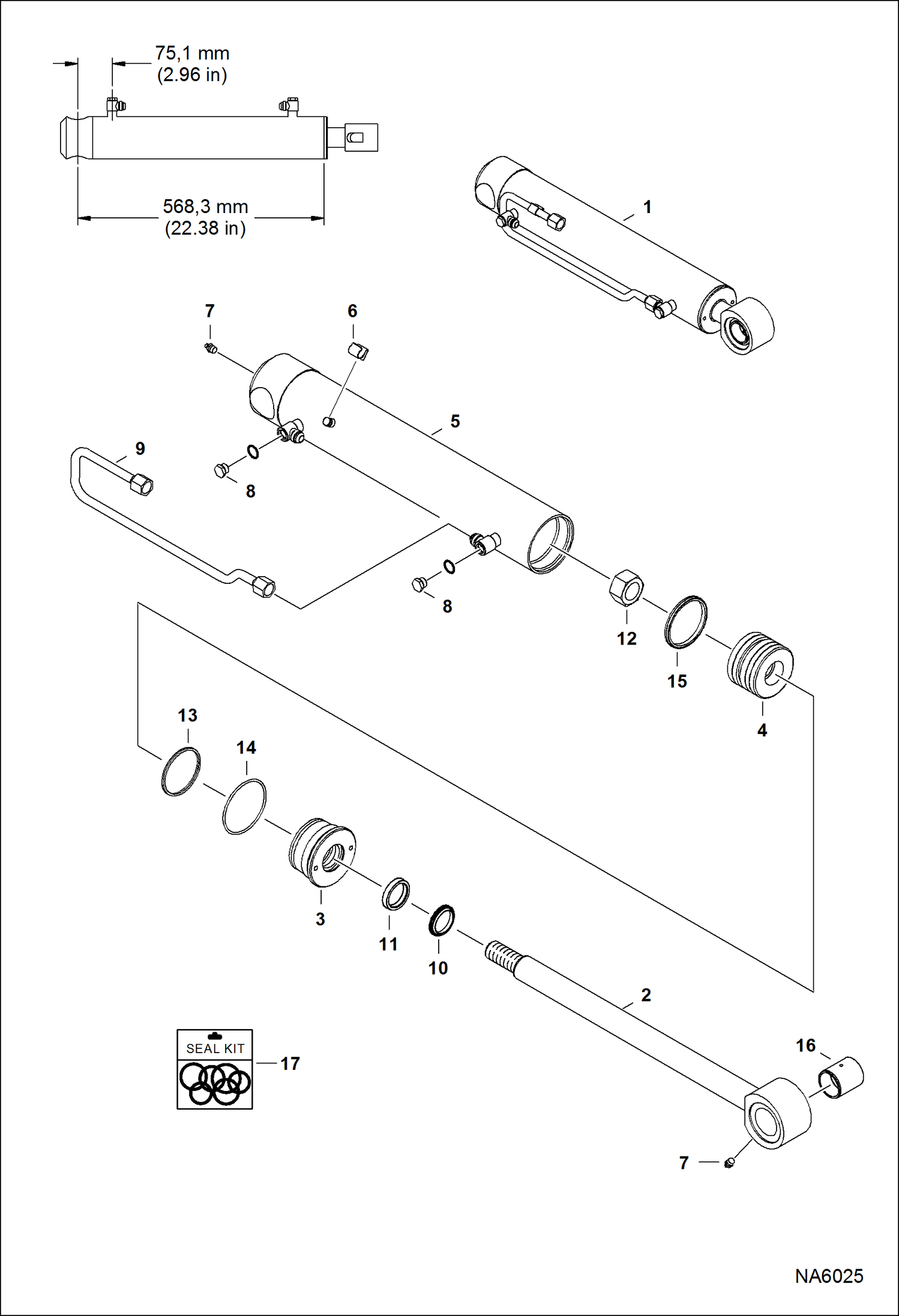

Схема запчастей Bobcat S-Series - TILT CYLINDER (RH) (568,3 mm - 22.38 Case Tube Length) (W/O Piston Collar) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER, TILT See BTI428 - NLA - Was 7202349 - C

2

SHAFT, ROD CYL See BTI428 - NLA - Was 7202403 - C

3

7202407

HEAD, CYL TILT

4

PISTON, CYL TILT See BTI428 - NLA - Was 7202408 - C

5

7202404

TUBE, CASE CYL

6

6690911

CLAMP

7

10H25

FITTING, GREASE 5

8

6812171

PLUG

9

7138359

TUBELINE, HYD

10

6690707

WIPER, ROD CYL

11

6667326

SEAL

12

6810539

NUT

13

7008354

SEAL, QUAD

14

73K234

BACK-UP RING

15

6692326

SEAL, BP

16

7155018

BUSHING, WEAR

17

7190632

KIT, SEAL Ref. 10-15

Выбрано товаров: 17
