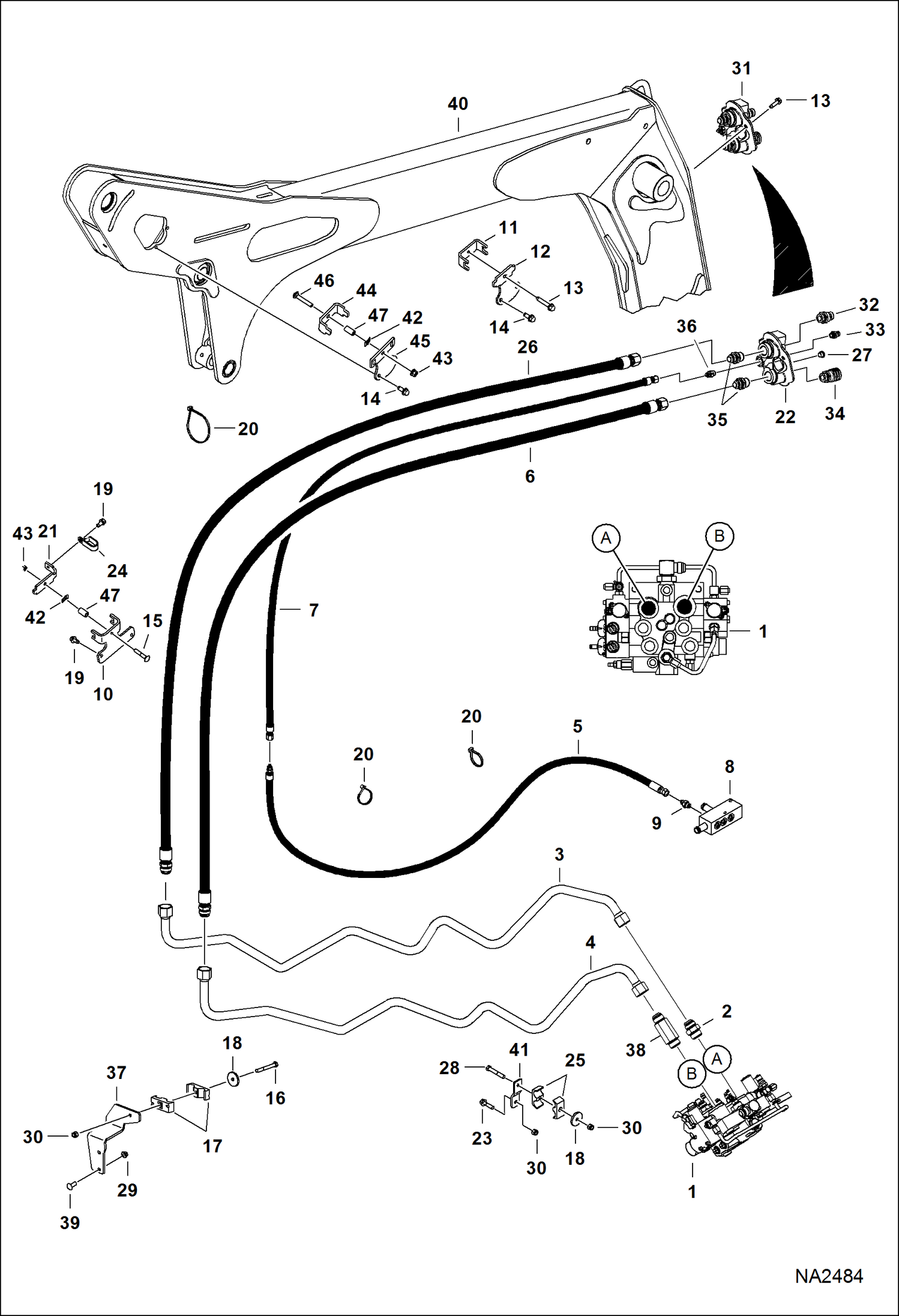

Запчасти Bobcat S-Series AUXILIARY HYDRAULICS (S/N ACS711001 - 11987, ACSL11001 - 11593) HYDRAULIC SYSTEM

1

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2751 - manual controls

1

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2483 - SJC

2

15KB1616

FITTING, HYD CONNECTOR

2

79K16

O RING 10

3

7194472

TUBELINE, HYD

4

7194473

TUBELINE, HYD

5

7194670

HOSE, HYD

6

7194475

HOSE, HYD

7

7195290

HOSE, HYD

8

7201981

MANIFOLD, DRAIN CASE Was 7178129 - A

9

15KB0606

FITTING, HYD CONNECTOR

9

79K6

O RING 10

10

7194435

CLAMP

11

CLAMP, HOSE NLA - Order Ref. 43-47 Was 7161042 - A

12

CLAMP, HOSE NLA - Order Ref. 43-47 Was 7161043 - A

13

35C616

BOLT 5 Was 84G3716 - B

14

84G3732

BOLT

15

37C632

BOLT

16

17C648

BOLT 5

17

6679025

CLAMP 2

18

872229

WASHER

19

84G3712

BOLT 5

20

6624289

STRAP, TIE

21

7194436

CLAMP

22

BLOCK NSS - Order Ref. 31

23

31C632

BOLT

24

31H34

CLIP Was 31H42 - B

25

6729320

CLAMP

26

7194474

HOSE, HYD

27

6697942

PLUG, NYLON

28

17C640

BOLT 5

29

57D6

NUT 5

30

59D6

NUT

31

7141939

BLOCK, COUPLER assy - Ref. 22 & 32-36

32

6679837

COUPLER male

33

6679838

KIT, COUPLER male

34

6680018

COUPLER, KIT female

35

6679836

ADAPTER

36

15KB0606

FITTING, HYD CONNECTOR

36

79K6

O RING 10

37

7164138

MOUNT

38

7177963

FITTING, HYD STRAIGHT

38

79K16

O RING 10

39

17C620

BOLT

40

LIFT ARM See Illustration LIFT ARM & BOB-TACH/ NA2471

41

SUPPORT NLA - Was 7164549 - A

42

6684033

NUT

43

85D6

NUT, 5

44

7199815

CLAMP, HOSE

45

7199814

CLAMP, HOSE

46

7199946

BOLT

47

7199872

SPACER, TUBE
