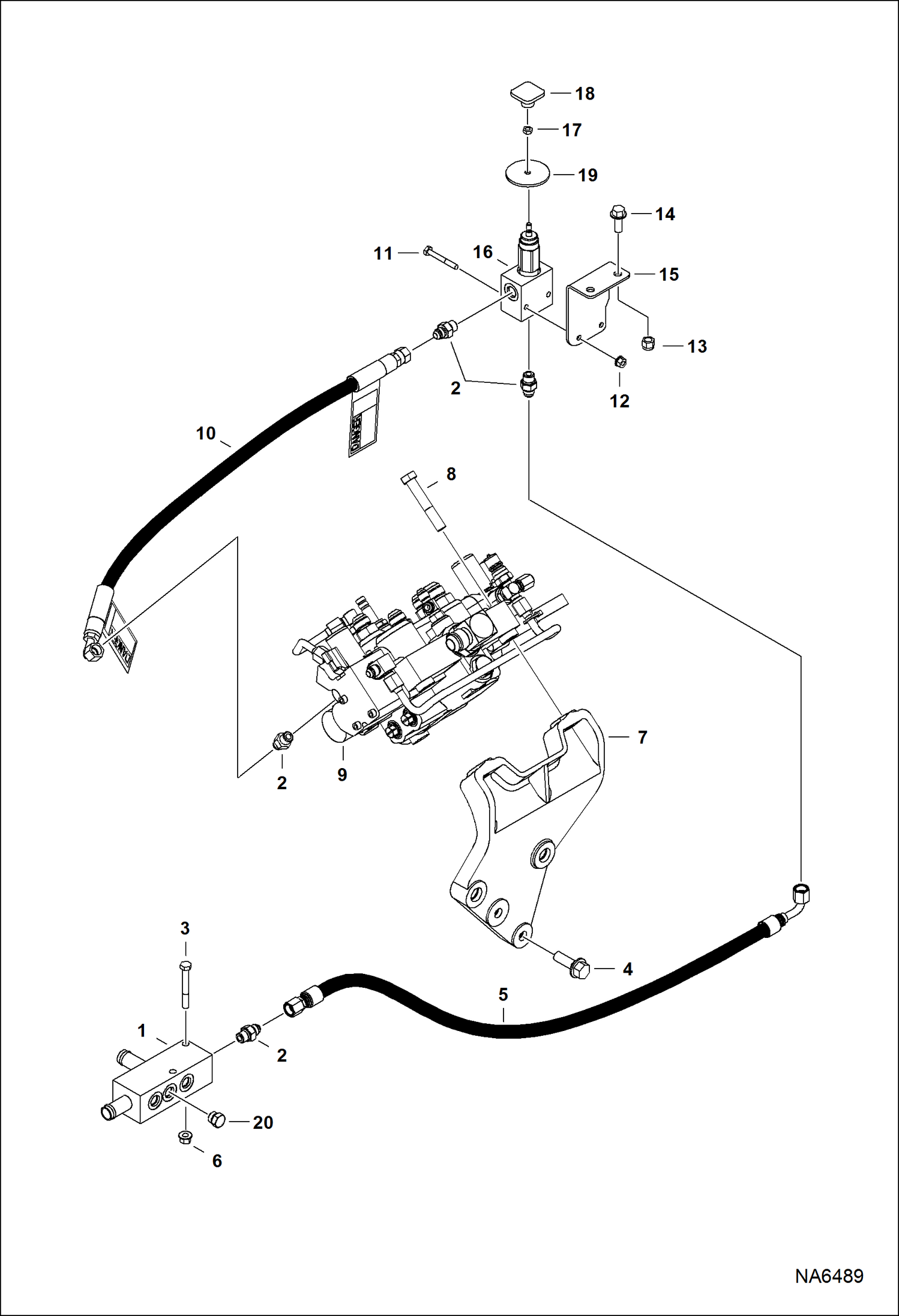

Запчасти Bobcat S-Series MANUAL LIFT RELEASE SYSTEM (S/N ACS711988 & Above, ACSL11594 & Above) HYDRAULIC SYSTEM

1

7201981

MANIFOLD, DRAIN CASE

2

15KB0606

FITTING, HYD CONNECTOR

2

79K6

O RING 10

3

17C540

BOLT

4

31C824

BOLT 10

5

6800932

HOSE

6

83D5

NUT 5

7

7217054

MOUNT, VALVE Was 7156150 - A

8

17C844

BOLT

9

7215057

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6523 - manual controls

9

7215512

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6524 - SJC

10

7182322

HOSE, HYD available only as an assembly W/danger decals installed

10

7170355

DECAL, DANGER

11

17C432

BOLT

12

83D4

NUT 10

13

59D6

NUT

14

35C616

BOLT 5

15

7185716

MOUNT, VALVE

16

VALVE, LIFT MANUAL See Illustration MANUAL LIFT RELEASE VALVE/ PE1547

17

7D4

NUT

18

6737524

KNOB

19

6707101

SEAL neoprene

20

24K5

PLUG

20

FITTING, HYD ELBOW See Illustration POWER BOB-TACH/ NA2819
