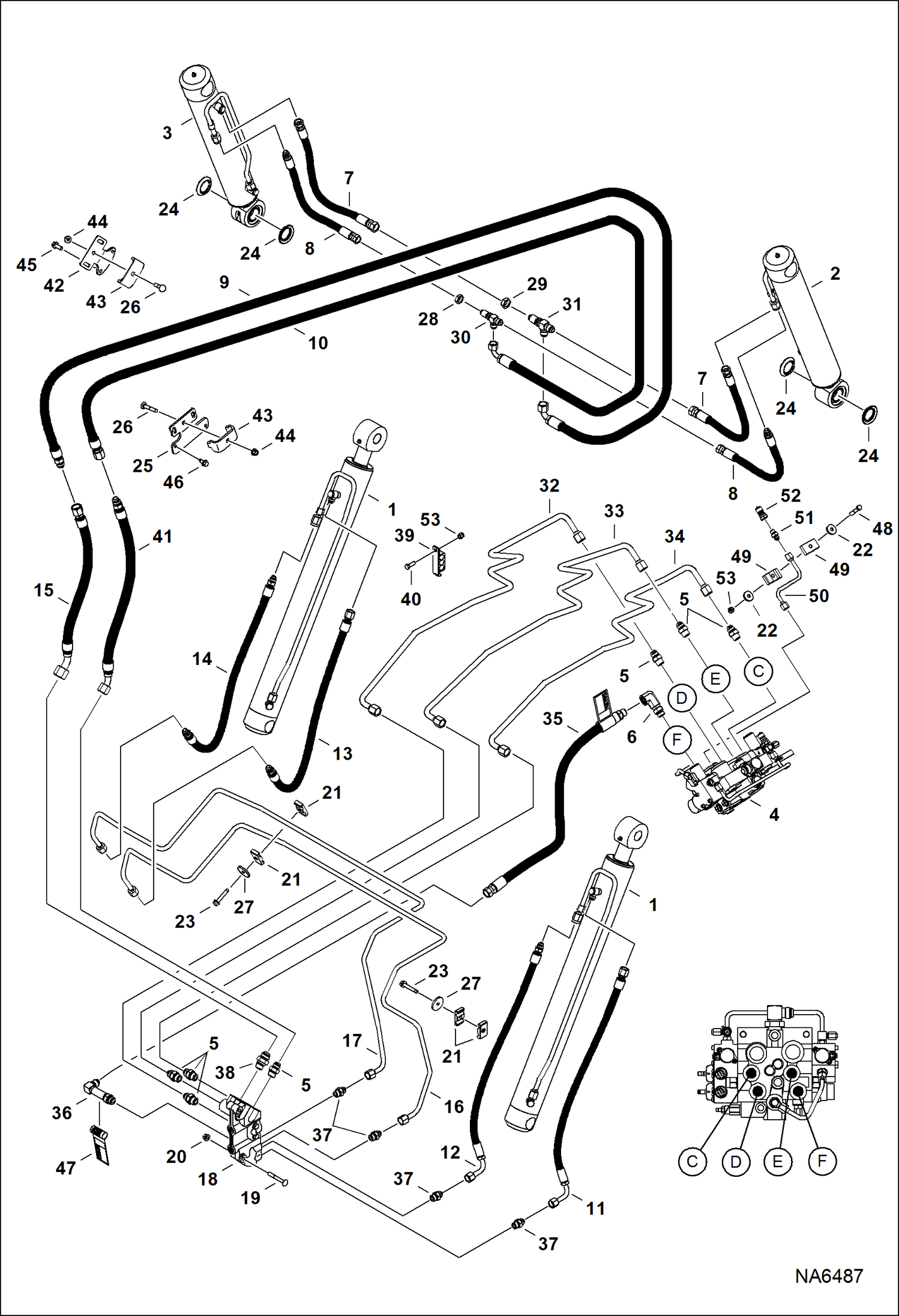

Запчасти Bobcat S-Series HYDRAULIC CIRCUITRY (W/BPV Junction Block) (S/N ACS711988 & Above, ACSL11594 & Above) HYDRAULIC SYSTEM

1

CYLINDER, LIFT See Illustration LIFT CYLINDER/ NA2482

2

CYLINDER, TILT See Illustration TILT CYLINDER/ NA6025 - RH

3

CYLINDER, TILT See Illustration TILT CYLINDER/ NA6024 - LH

4

7215057

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6523 - manual controls

4

7215512

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6524 - SJC

5

15KB1010

FITTING, HYD CONNECTOR

5

79K10

O RING 10

6

7178044

FITTING

6

79K10

O RING 10

7

7153006

HOSE, HYD

8

7153008

HOSE, HYD

9

7195026

HOSE, HYD

10

7195027

HOSE, HYD

11

7181808

HOSE, HYD

12

7181809

HOSE, HYD

13

7205756

HOSE, HYD

14

7205755

HOSE, HYD

15

7195028

HOSE, HYD

16

7211820

TUBELINE, HYD

17

7211821

TUBELINE, HYD

18

7011040

VALVE, BPV

19

37C644

BOLT

20

83D6

NUT 5

21

6701892

CLAMP

22

619021

WASHER, 5

23

84G3728

BOLT

24

6698174

SEAL, DUST

25

7201044

CLAMP, HOSE

26

37C636

BOLT

27

872229

WASHER

28

86F6

NUT

29

86F7

LOCK NUT

30

91K6

TEE

31

91K7

FITTING

32

7185194

TUBELINE, HYD

33

7185193

TUBELINE, HYD

34

7185192

TUBELINE, HYD

35

7175407

HOSE, HYD available only as an assembly W/danger decal installed near the male threaded end of hose

35

7170355

DECAL, DANGER danger

36

7183605

KIT, FITTING W/DECAL W/Ref. 47 - this elbow must always display the danger decal

36

79K10

O RING 10

37

15KB0808

FITTING, HYD CONNECTOR

37

79K8

O RING 10

38

15KB1210

FITTING, HYD CONNECTOR

38

79K10

O RING 10

39

7157358

CLAMP

40

17C616

BOLT 5

41

7195029

HOSE, HYD

42

7199814

CLAMP, HOSE

43

7199815

CLAMP, HOSE

44

89D6

NUT

45

35C616

BOLT 5

46

84G3712

BOLT 5

47

7170355

DECAL, DANGER

48

17C632

BOLT 5

49

7183298

CLAMP

50

7182882

TUBELINE, HYD

51

15KB0606

FITTING, HYD CONNECTOR

51

79K6

O RING 10

52

6684125

COUPLER

53

59D6

NUT
