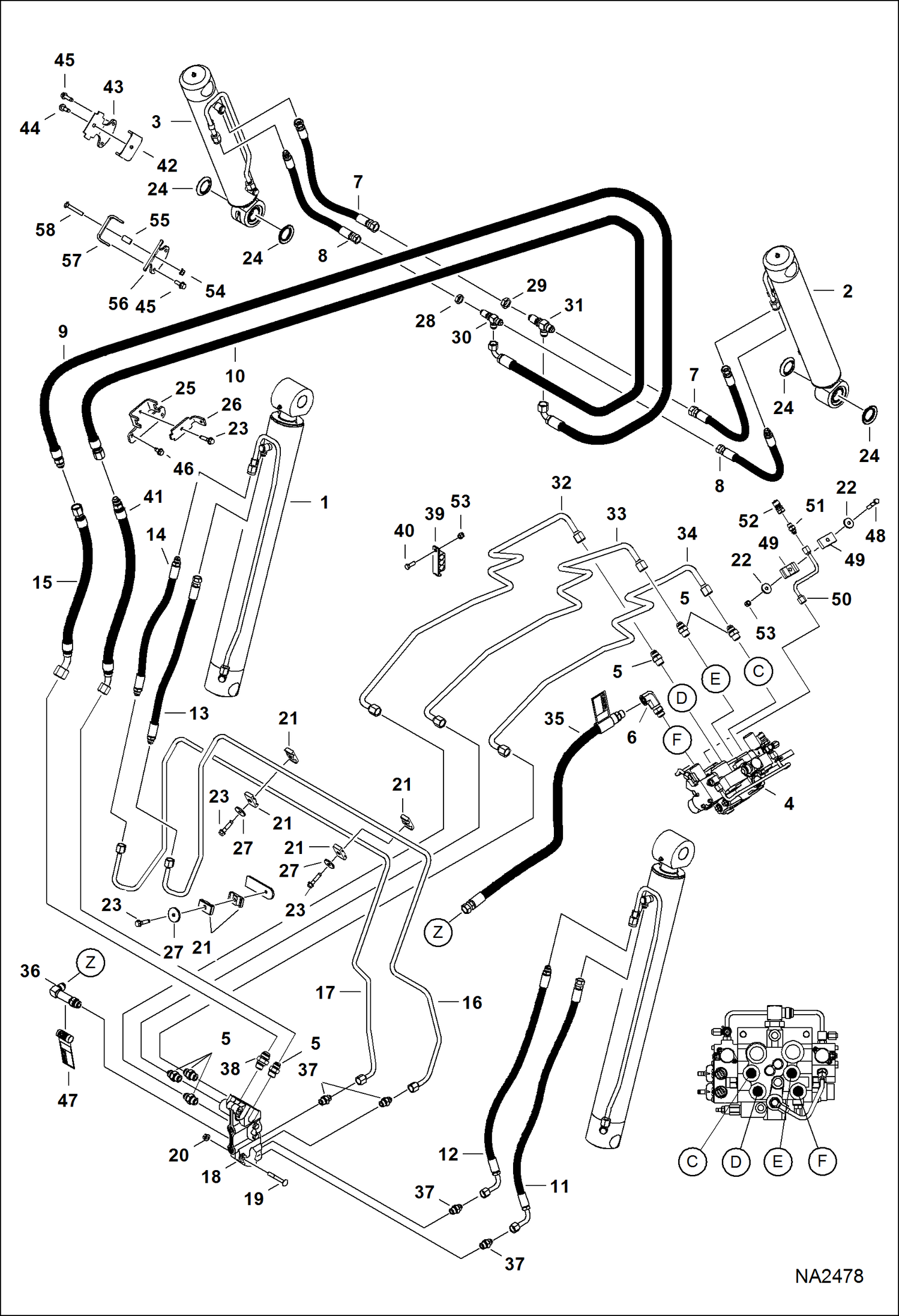

Запчасти Bobcat S-Series HYDRAULIC CIRCUITRY (W/BPV Junction Block) (S/N ACS711001 - 11987, ACSL11001 - 11593) HYDRAULIC SYSTEM

1

CYLINDER, LIFT See Illustration LIFT CYLINDER/ NA2482

2

CYLINDER, TILT See Illustration TILT CYLINDER/ NA2481 - RH

3

CYLINDER, TILT See Illustration TILT CYLINDER/ NA2480 - LH

4

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2751 - manual controls

4

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2483 - SJC

5

15KB1010

FITTING, HYD CONNECTOR

5

79K10

O RING 10

6

7178044

FITTING

6

79K10

O RING 10

7

7153006

HOSE, HYD

8

7153008

HOSE, HYD

9

7151929

HOSE, HYD ASSY

10

7151928

HOSE, HYD ASSY

11

7181808

HOSE, HYD

12

7181809

HOSE, HYD

13

7155831

HOSE, HYD

14

7155832

HOSE, HYD

15

7177891

HOSE, HYD ASSY

16

7191556

TUBELINE, HYD

17

7191557

TUBELINE, HYD

18

7204131

VALVE, LEVEL SELF NO Was 7001921 - A

19

37C644

BOLT

20

83D6

NUT 5

21

6701892

CLAMP

22

619021

WASHER, 5

23

84G3728

BOLT

24

6698174

SEAL, DUST

25

7194434

CLAMP

26

7194436

CLAMP

27

872229

WASHER

28

86F6

NUT

29

86F7

LOCK NUT

30

91K6

TEE

31

91K7

FITTING

32

7185194

TUBELINE, HYD

33

7185193

TUBELINE, HYD

34

7185192

TUBELINE, HYD

35

7175407

HOSE, HYD available only as an assembly W/danger decal installed near the male threaded end of hose

35

7170355

DECAL, DANGER danger

36

7183605

KIT, FITTING W/DECAL W/Ref. 47 - this elbow must always display the danger decal - Was 7154528 - D

36

79K10

O RING 10

37

15KB0808

FITTING, HYD CONNECTOR

37

79K8

O RING 10

38

15KB1210

FITTING, HYD CONNECTOR

38

79K10

O RING 10

39

7157358

CLAMP

40

17C616

BOLT 5

41

7195029

HOSE, HYD Was 86F8 - B,D

42

CLAMP, HOSE NLA - Order Ref. 54-58 Was 7161042 - A

43

CLAMP, HOSE NLA - Order Ref. 54-58 Was 7161043 - A

44

84G3732

BOLT

45

35C616

BOLT 5 Was 84G3716 - B

46

84G3712

BOLT 5

47

7170355

DECAL, DANGER

48

17C632

BOLT 5

49

7183298

CLAMP

50

7182882

TUBELINE, HYD

51

15KB0606

FITTING, HYD CONNECTOR

51

79K6

O RING 10

52

6684125

COUPLER

53

85D6

NUT, 5

54

89D6

NUT

55

7199872

SPACER, TUBE

56

7199814

CLAMP, HOSE

57

7199815

CLAMP, HOSE

58

7199946

BOLT
