Запчасти Bobcat S-Series LIFT ARM & BOB-TACH MAIN FRAME

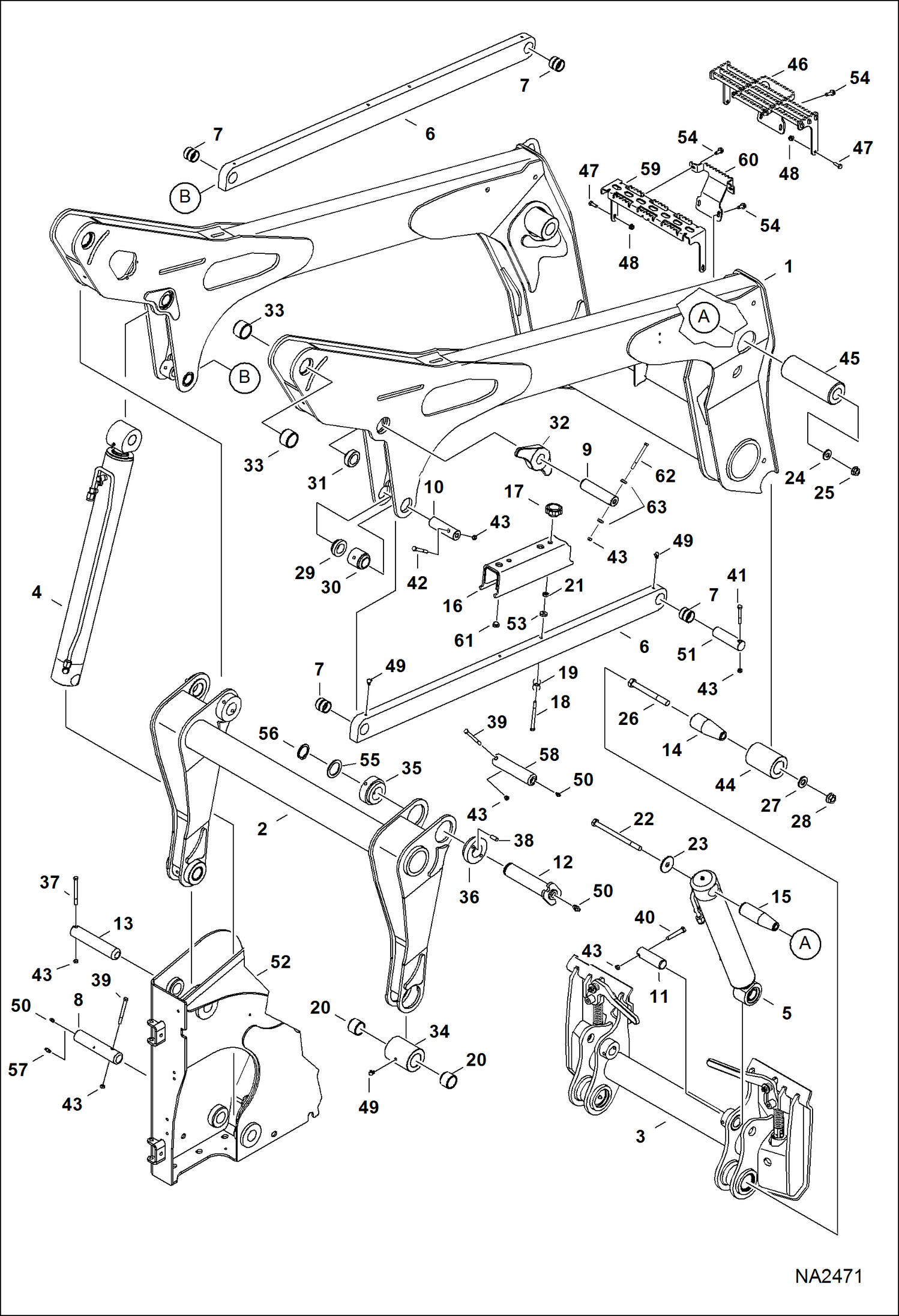

Схема запчастей Bobcat S-Series - LIFT ARM & BOB-TACH MAIN FRAME

Артикул

Название

Примечание

Количество

1

7143572

LIFT ARM W/Ref. 33

2

7212688

LINK, FRAME BOOM Was 7143573 - A

3

BOB-TACH ASSY See Illustration BOB-TACH/ NA2738

4

CYLINDER, LIFT See Illustration LIFT CYLINDER/ NA2482

5

CYLINDER, TILT See Illustration TILT CYLINDER/ NA2481 - LH

5

CYLINDER, TILT See Illustration TILT CYLINDER/ NA2480 - RH

6

7147602

LINK, ASSY W/Ref. 7

7

7158385

BUSHING, WEAR

8

7175322

PIN, PIVOT base end of Lift Cylinder

9

7136991

PIN, PIVOT

10

7136988

PIN, PIVOT

11

7140392

PIN, PIVOT

12

PIN, PIVOT NLA - Order Ref. 58, 37, 43 & 50 - Was 7202569 - A

13

7147804

PIN

14

7170609

PIN, PIVOT TAPERED

15

7139001

PIN, PIVOT

16

7169530

SUPPORT, LIFT ARM

17

6684932

KNOB

18

7159259

SCREW

19

6E6

WASHER

20

6730995

BUSHING, WEAR

21

6718942

NUT

22

17C10144

BOLT

23

6731160

WASHER

24

27E10

WASHER

25

53D10

NUT

26

17C12112

BOLT

27

27E12

WASHER

28

53D12

NUT

29

7159302

BUSHING, WELD-ON

30

7199223

BUSHING, WELD-ON

31

7195301

BUSHING, WELD-ON

32

7195343

BUSHING, WELD-ON

33

7159652

BUSHING, WEAR

34

7215770

BUSHING, WELD-ON W/Ref. 20 - Was 7143601

35

7198222

BUSHING, WELD-ON

36

7199076

BUSHING, WELD-ON

37

17C672

BOLT

38

23JM1228

PIN, STRAIGHT HARDENED

39

17C660

BOLT

40

17C656

BOLT

41

17C644

BOLT

42

17C648

BOLT 5

43

85D6

NUT, 5

44

7169528

BUSHING, TAPERED

45

7134969

BUSHING, WELD-ON

46

STEP, LIFT ARM NLA - Order Ref. 59, 60 & (2) of Ref 54 - Was 7159749 - A

47

17C616

BOLT 5

48

53D6

NUT

49

12H15

FITTING, GREASE 5

50

10H25

FITTING, GREASE 5

51

7136989

PIN, PIVOT

52

MAIN FRAME See Illustration MAIN FRAME/ NA2469

53

616783

WASHER

54

84G3716

SCREW 5

55

6812687

WASHER

56

6812713

RING

57

45H25

FITTING, GREASE

58

7196955

PIN, PIVOT

59

7233244

STEP, LIFT ARM Was 7232056 - A

60

7233245

BRACKET Was 7232057 - A

61

6519178

BUMPER

62

17C676

BOLT

63

7218747

WASHER, FLAT

Выбрано товаров: 64
