Запчасти Bobcat S-Series PANEL (Floor Pan) (Manual Controls) (S/N ACS711120 & Above, ACSL11111 & Above) MAIN FRAME

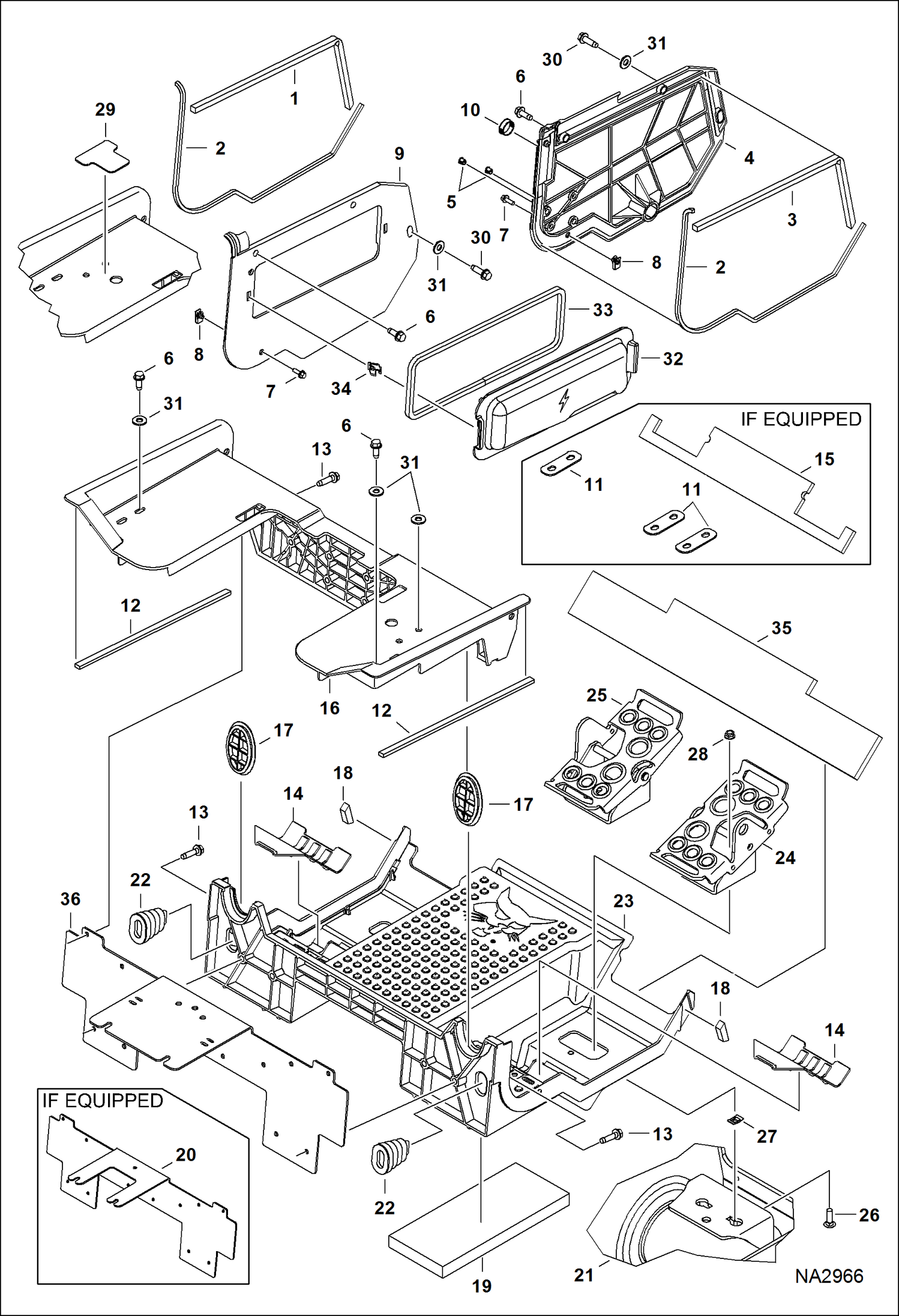

Схема запчастей Bobcat S-Series - PANEL (Floor Pan) (Manual Controls) (S/N ACS711120 & Above, ACSL11111 & Above) MAIN FRAME

Артикул

Название

Примечание

Количество

1

7166197

FOAM, PANEL LH

2

7166199

FOAM, EDGE

3

7166198

FOAM, PANEL RH

4

7180032

PANEL, RH

5

5289686

PLUG black - 0.38'' dia hole

6

84G3716

SCREW 5

7

35C412

BOLT

8

7160765

NUT

9

7196671

PANEL, LH

10

7166315

PLUG

11

PLATE, WASHER NLA - Order (2) of Ref. 31 - Was 7167118 - A

12

7166196

FOAM, PANEL

13

84G3724

BOLT

14

7164345

COVER, PAN FLOOR

15

7163132

FOAM, FRONT

16

7185169

PANEL, STEERING Was 7180037 - A

17

7161131

COVER, LEVER

18

7166200

FOAM, PAN FLOOR

19

7166195

PAD, PAN FLOOR

20

7191409

PANEL, MOUNTING

21

CHAINCASE See Illustration DRIVE TRAIN/ NA2453

22

7153503

BOOT

23

7156916

PAN, FLOOR

24

PEDAL ASSEMBLY See Illustration CONTROL PEDALS/ NA2520 - RH

25

PEDAL ASSEMBLY See Illustration CONTROL PEDALS/ NA2520 - LH

26

37C620

BOLT

27

6684033

NUT

28

57D6

NUT 5

29

7185170

COVER Use W/Ref. 16 to cover three holes if present on the LH side

30

84G3720

BOLT

31

25E18

WASHER

32

7197082

COVER W/Ref. 33 & 34

33

7205329

SEAL, COVER

34

7165333

CLIP

Выбрано товаров: 34
