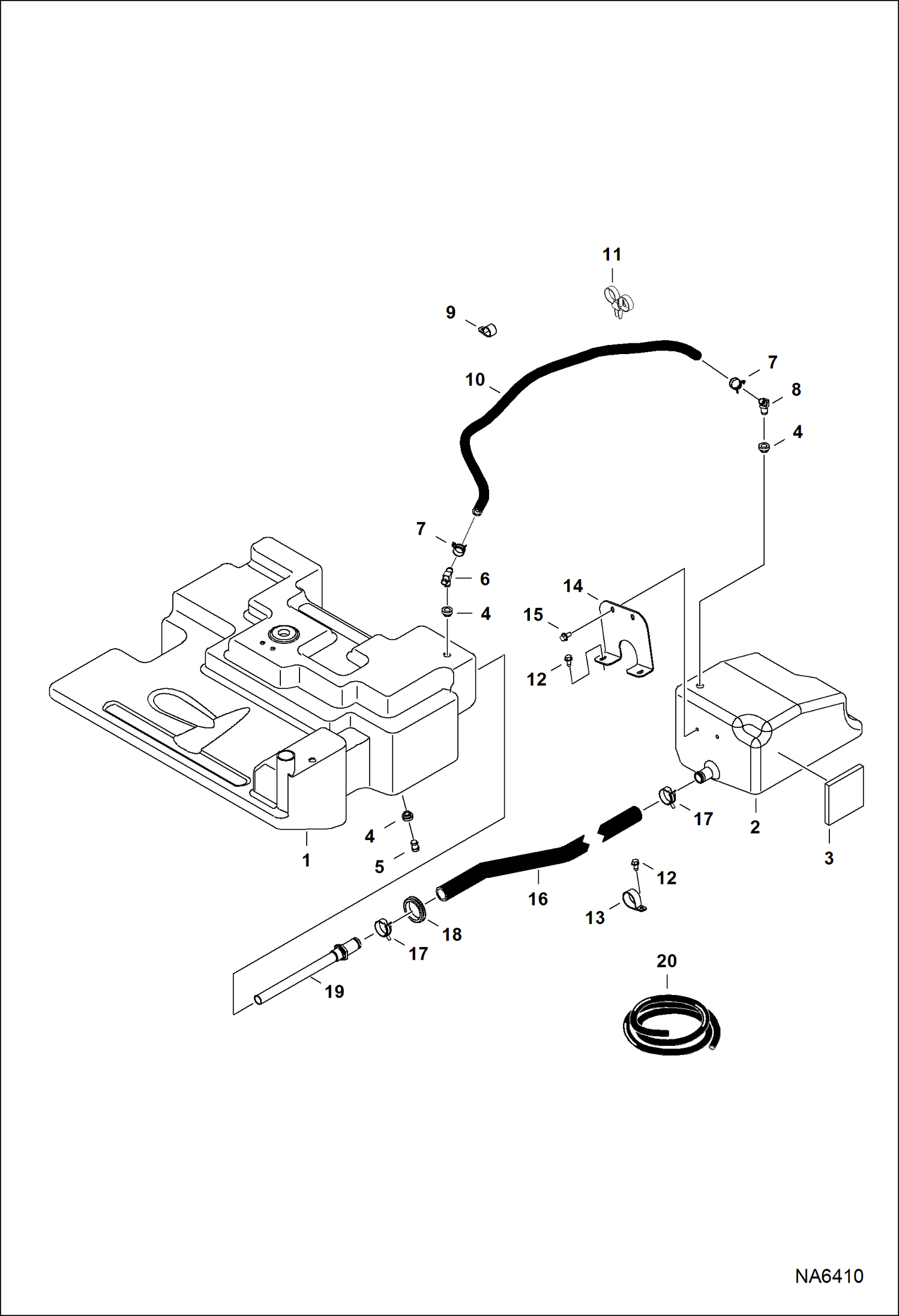

Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Fuel System) (Dual Tank) POWER UNIT

1

7170486

TANK, FUEL

2

7171963

TANK, FUEL AUX

3

7228612

INSULATION, TANK FUEL Was 7170635

4

6717402

BUSHING

5

7203382

PLUG, STEEL

6

7203385

TEE

7

5HM24

CLAMP

8

7203384

FITTING, ELBOW

9

30H50

CLIP

10

HOSE, BREATHER NLA - 1295 mm (51'') long - Order Ref. 20

11

6678668

STRAP, DUAL TIE

12

84G3712

BOLT 5

13

30H82

CLAMP INSULATED

14

7130982

BRACKET

15

31C612

BOLT

16

7130992

TUBE, CONNECTING Use Hose 7130992 - 47.19'' (1198,6) when equipped with roto-molded fuel tank, 7170486

16

7233122

HOSE, HYD FORMED Use Hose 7233122 - 46.25'' (1174,8) when equipped with injection-molded fuel tank, 7180680

17

5HM38

CLAMP, HOSE

18

7150486

GROMMET

19

7213030

TUBE, FUEL

20

6578172

HOSE bulk - sold per foot
