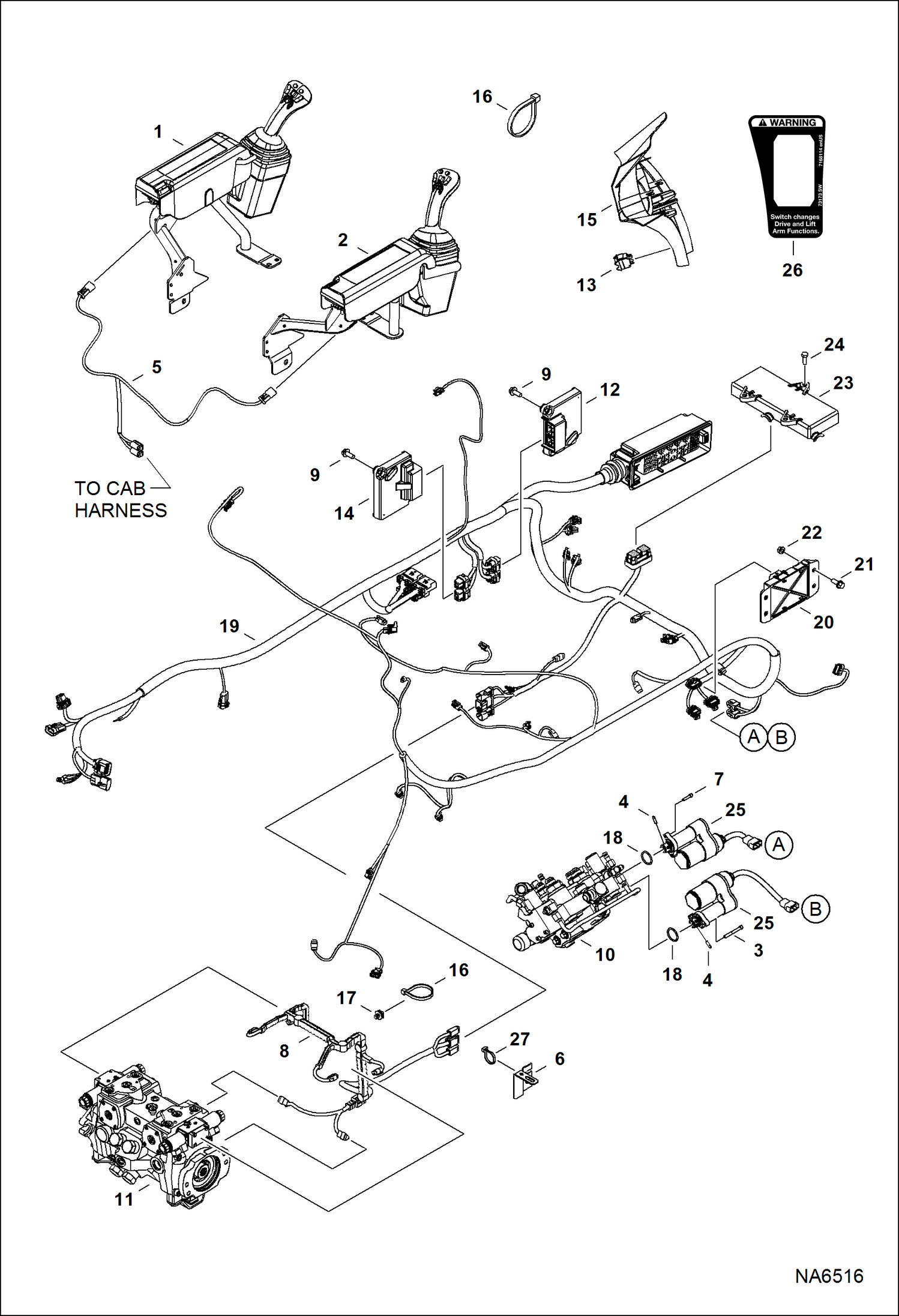

Запчасти Bobcat S-Series CONTROLS ELECTRICAL (Actuators, Controllers & Harnesses) ELECTRICAL SYSTEM

1

JOYSTICK, LH See Illustration CONTROLS ELECTRICAL/ NA2978

2

JOYSTICK, RH See Illustration CONTROLS ELECTRICAL/ NA2978

3

69G436

BOLT

4

7108236

PIN

5

7163706

HARNESS, JOYSTICK

6

7122359

BRACKET

7

29G416

BOLT

8

7198705

HARNESS, PUMP

9

7168429

BOLT, CONTROLLER flange head - M10 x 25 mm

10

7215512

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6524 - SJC

10

7215057

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6523 - manual controls

11

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA2507

12

6693353

CONTROLLER, GATEWAY

13

7001710

SWITCH, ISO SJC

14

6691288

CONTROLLER, AUX CONTROL

15

PANEL, RH See Illustration OPERATOR CAB/ NA6391

16

6690690

STRAP, TIE

17

6690689

MOUNT, FIR TREE

18

58K120

O-RING

19

HARNESS, MFR See Illustration ENGINE ELECTRICAL CIRCUITRY/ NA6508 - W/Ref. 6

20

6680410

CONTROLLER plastic - W/ 3-connector plug

21

17C616

BOLT 5

22

97D6

NUT 10

23

6679485

CONTROLLER SJC

24

43C616

BOLT

25

7101672

ACTUATOR W/Ref. 18

26

7168114

DECAL, SWITCH SJC

27

6624289

STRAP, TIE
