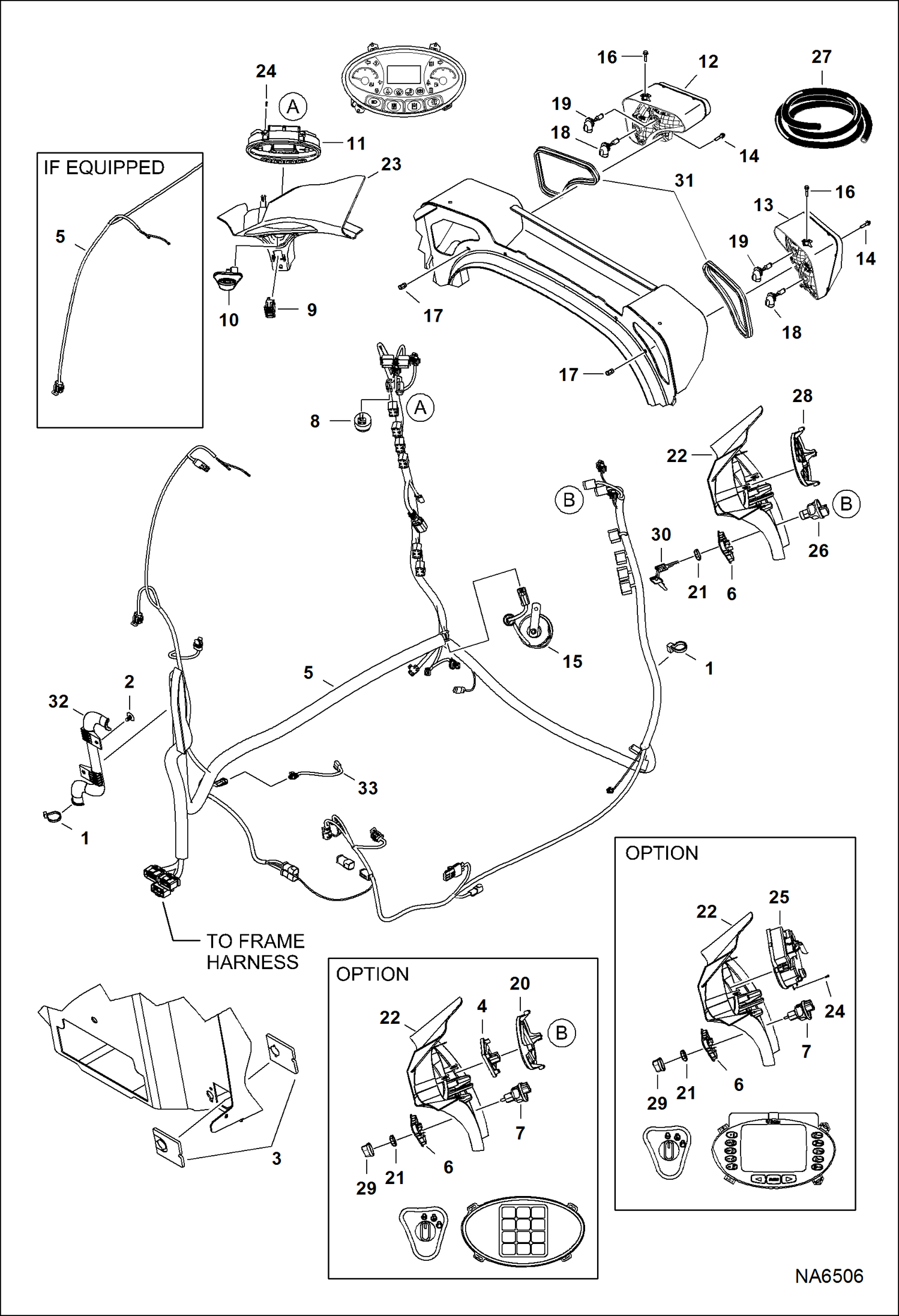

Запчасти Bobcat S-Series CAB ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6624289

STRAP, TIE

2

6674895

RETAINER

3

7185150

PLUG, HARNESS CAB

4

6693712

KEYPAD, PANEL See Illustration KEYLESS PANEL SWITCH/ NA6348

5

7207730

HARNESS, CAB DLX

6

7164073

GUIDE

7

7163589

INSERT, SWITCH

8

7023022

SWITCH ROTARY W/Ref. 22

9

6692489

ALARM, BUZZER

10

6690948

SWITCH PARK BRAKE

11

7003032

SWITCH, OVERRIDE TRACTION

12

7022670

DISPLAY

13

7138041

LIGHT, LH ASSY

14

7138040

LIGHT, RH ASSY

15

31C420

BOLT 5

16

HORN, ALARM See Illustration HORN KIT/ NA6325 manual controls, AHC & ACS

16

HORN, ALARM See Illustration HORN KIT/ NA6326 selectable joystick controls

17

35C410

BOLT 5

18

7154910

INSERT, THREADED

19

6675336

LIGHT, BULB 50W

20

7008814

BULB, 5W

21

7003027

INSERT, KEYPAD See Illustration KEYLESS PANEL SWITCH/ NA6348 if loader is equipped W/SJC & text decals, Also Order Ref. 26 & 7168114 decal - if loader is equipped W/SJC & no text decals, Also Order Re

22

7009081

NUT

23

7155791

PANEL, RH

24

7155792

PANEL, LH

25

7179008

SCREW, PLASTIC

26

6693413

DISPLAY, DLX

27

6693245

SWITCH, IGN

28

7202956

SEAL, BULK bulk - sold per foot

29

7002985

INSERT, BLANK

30

7023588

KNOB

31

6693241

KEY 10 ignition - single key W/O ring

32

SEAL NLA - 609,6 mm (24'') long - Order Ref. 28
