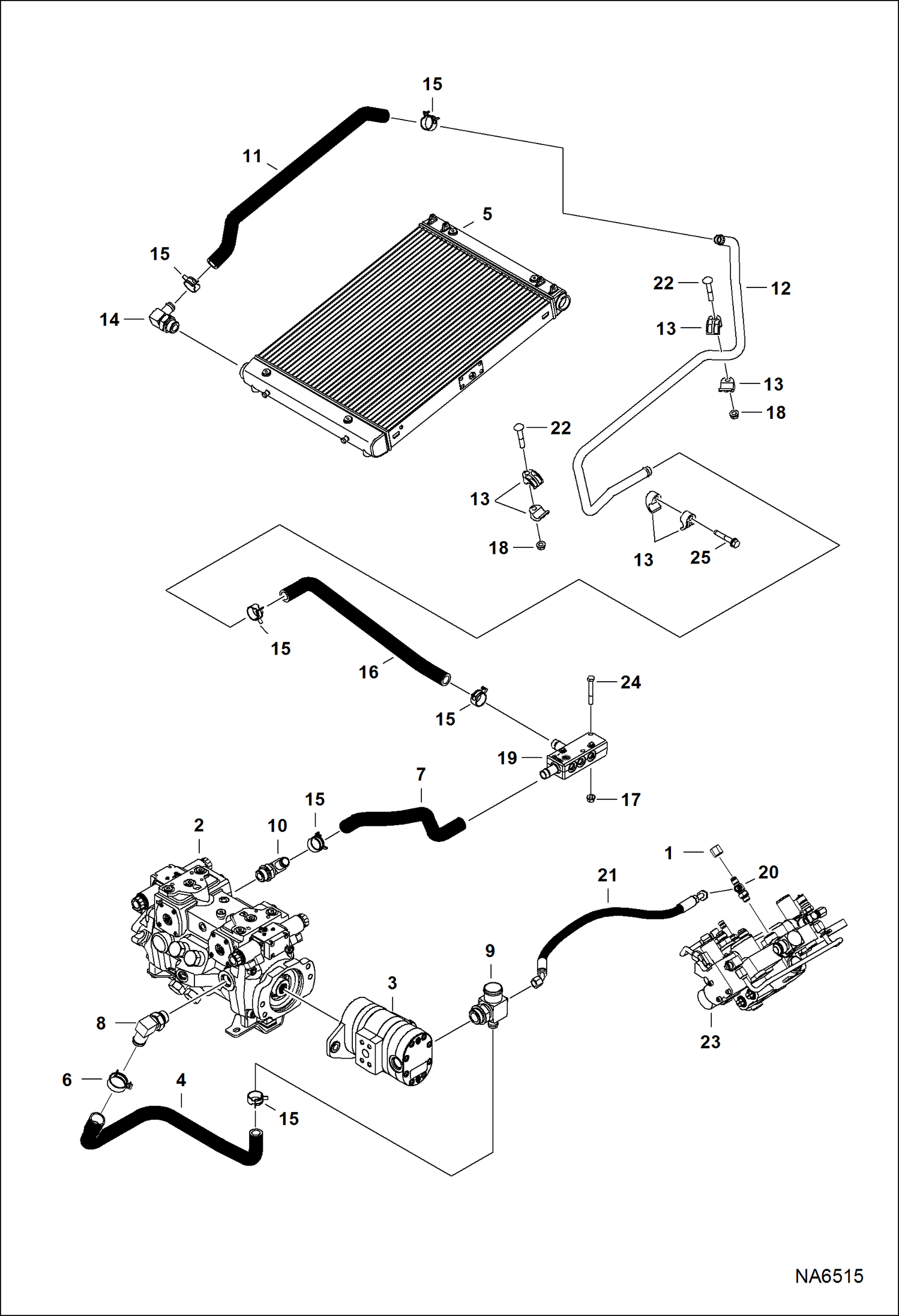

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (Cooler) HYDROSTATIC SYSTEM

1

36K5

CAP

2

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA2507

3

PUMP, GEAR See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA2507

4

7178518

HOSE, HYD FORMED

5

EXCHANGER, OIL COOLER See Illustration RADIATOR/COOLER ASSEMBLY/ NA6372 W/Ref. 14

6

5HM34

CLAMP, HOSE

7

7155668

HOSE, HYD FORMED

8

7015518

VALVE, CHECK

8

79K12

O RING 10

9

7158921

FITTING See Illustration HYDROSTATIC CIRCUITRY/ NA2502

9

79K16

O RING 10

10

7113631

ELBOW

10

79K12

O RING 10

11

7212684

HOSE, HYD FORMED

12

7190648

TUBELINE, HYD

13

7100462

CLAMP

14

FITTING, ELBOW NLA - Order Ref. 5 - Was 7022635 - A

14

79K12

O RING 10

15

5HM27

CLAMP

16

7192283

HOSE, DRAIN

17

83D5

NUT 5

18

55D6

NUT

19

7201981

MANIFOLD, DRAIN CASE

20

21KB0606

FTG HYD STRAIGHT TEE

20

79K6

O RING 10

21

7201263

HOSE, HYD

22

10C636

BOLT

23

7215057

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6523 - manual controls

23

7215512

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6524 - SJC

24

17C540

BOLT

25

84G3736

BOLT
