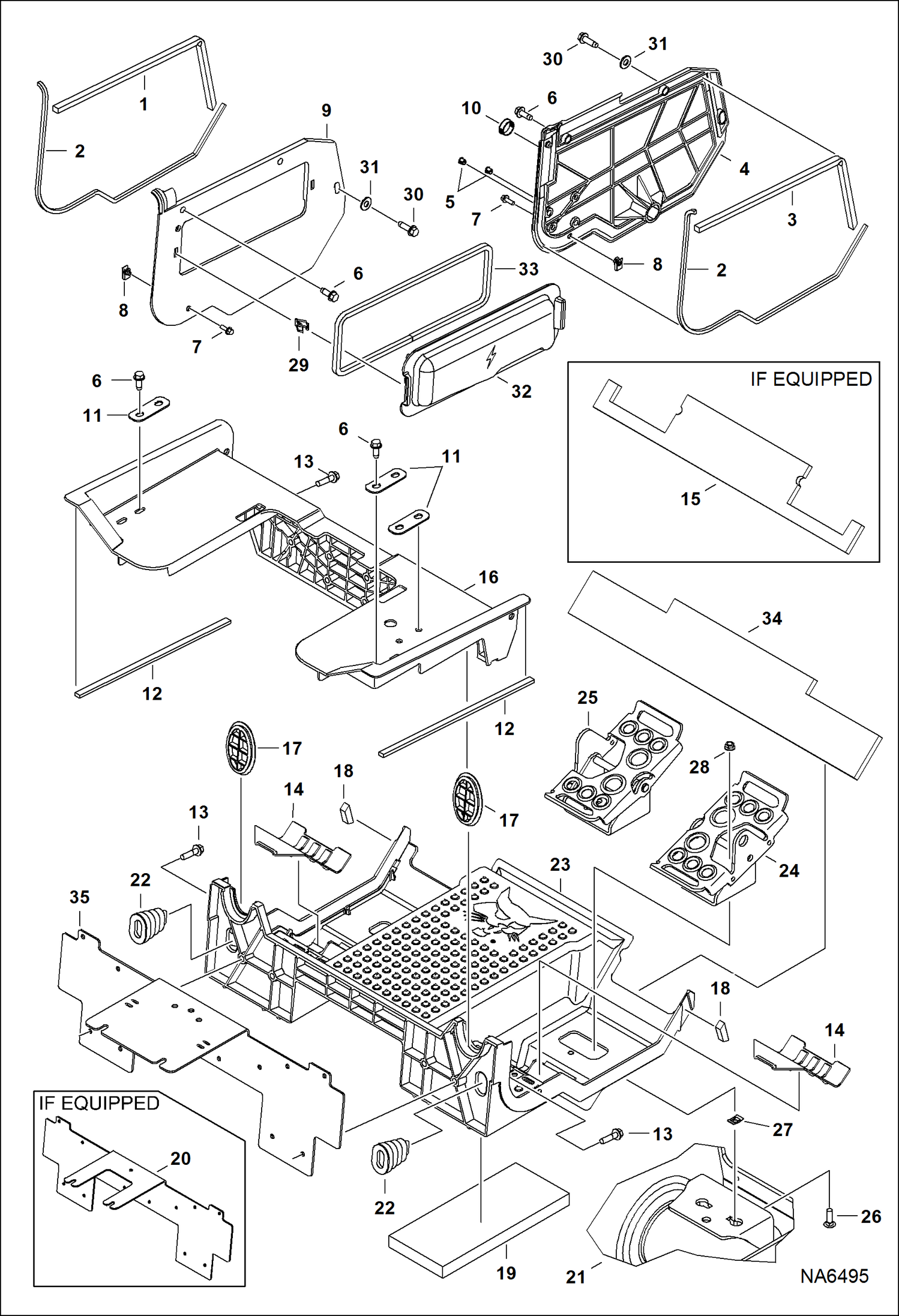

Запчасти Bobcat S-Series PANELS (Floor Pan) (Manual Controls) MAIN FRAME

1

7166197

FOAM, PANEL LH

2

7166199

FOAM, EDGE

3

7166198

FOAM, PANEL RH

4

7180032

PANEL, RH

5

5289686

PLUG black - 0.38'' dia hole

6

84G3716

SCREW 5

7

35C412

BOLT

8

7160765

NUT

9

7196671

PANEL, LH

10

7166315

PLUG

11

PLATE, WASHER NLA - Order (2) of Ref. 31 - Was 7167118 - A

12

7166196

FOAM, PANEL

13

84G3724

BOLT

14

7164345

COVER, PAN FLOOR

15

7163132

FOAM, FRONT

16

7185169

PANEL, STEERING

17

7161131

COVER, LEVER

18

7166200

FOAM, PAN FLOOR

19

7166195

PAD, PAN FLOOR

20

7191409

PANEL, MOUNTING

21

CHAINCASE See Illustration DRIVE TRAIN/ NA6451

22

7153503

BOOT

23

7156916

PAN, FLOOR

24

PEDAL ASSEMBLY See Illustration CONTROL PEDALS/ NA2520 - RH

25

PEDAL ASSEMBLY See Illustration CONTROL PEDALS/ NA2520 - LH

26

37C620

BOLT

27

6684033

NUT

28

57D6

NUT 5

29

7165333

CLIP

30

84G3720

BOLT

31

25E18

WASHER

32

7197082

COVER W/Ref. 29 & 33

33

7205329

SEAL, COVER
