Запчасти Bobcat S-Series SOUND/NOISE REDUCTION OPTION (Bystander) ACCESSORIES & OPTIONS

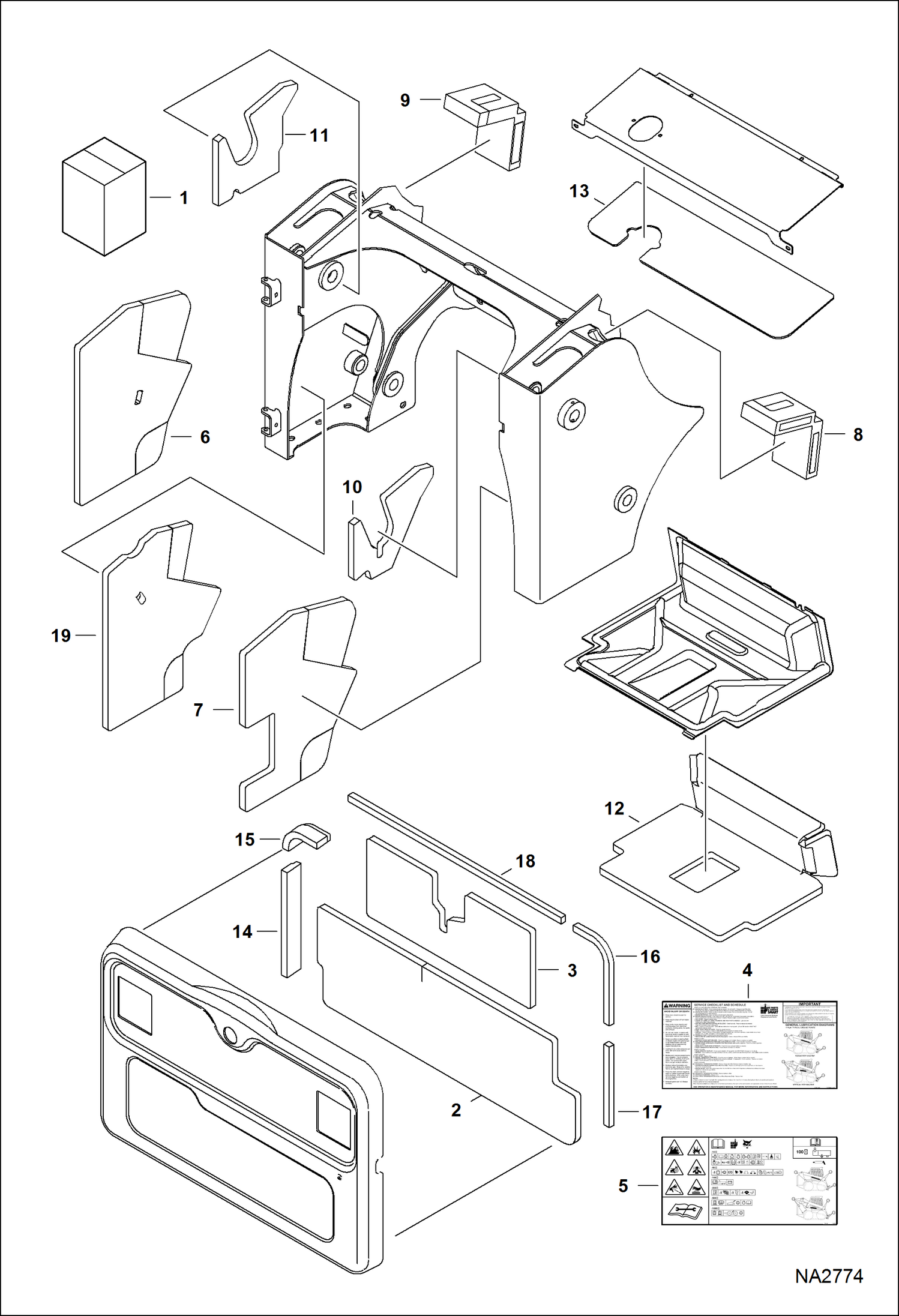

Схема запчастей Bobcat S-Series - SOUND/NOISE REDUCTION OPTION (Bystander) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

KIT, SOUND NOISE REDUCTION BYSTANDER NLA - Order Components

2

7171192

INSULATION, DOOR REAR lower

3

7171194

INSULATION, DOOR REAR upper

4

7205726

DECAL, SERVICE Was 7167998 - A

5

7205727

DECAL, SERVICE no text - EMEA - Was 7168042 - A

6

7174847

INSULATION, UPRIGHT LH

7

7174846

INSULATION, UPRIGHT RH

8

7196755

INSULATION outer upright - RH

9

7196756

INSULATION outer upright - LH

10

7196757

INSULATION inner upright - RH

11

7196758

INSULATION inner upright - LH

12

7196759

INSULATION fan shroud

13

7196760

INSULATION, ENG eng cover

14

7198932

INSULATION rear door - LH

15

7198933

INSULATION rear door - LH top

16

7199009

INSULATION rear door - RH top

17

7199010

INSULATION rear door - RH bottom

18

7199011

INSULATION rear door top

19

7221233

INSULATION, UPRIGHT LH

Выбрано товаров: 19
