Запчасти Bobcat S-Series SOUND/NOISE REDUCTION KIT ACCESSORIES & OPTIONS

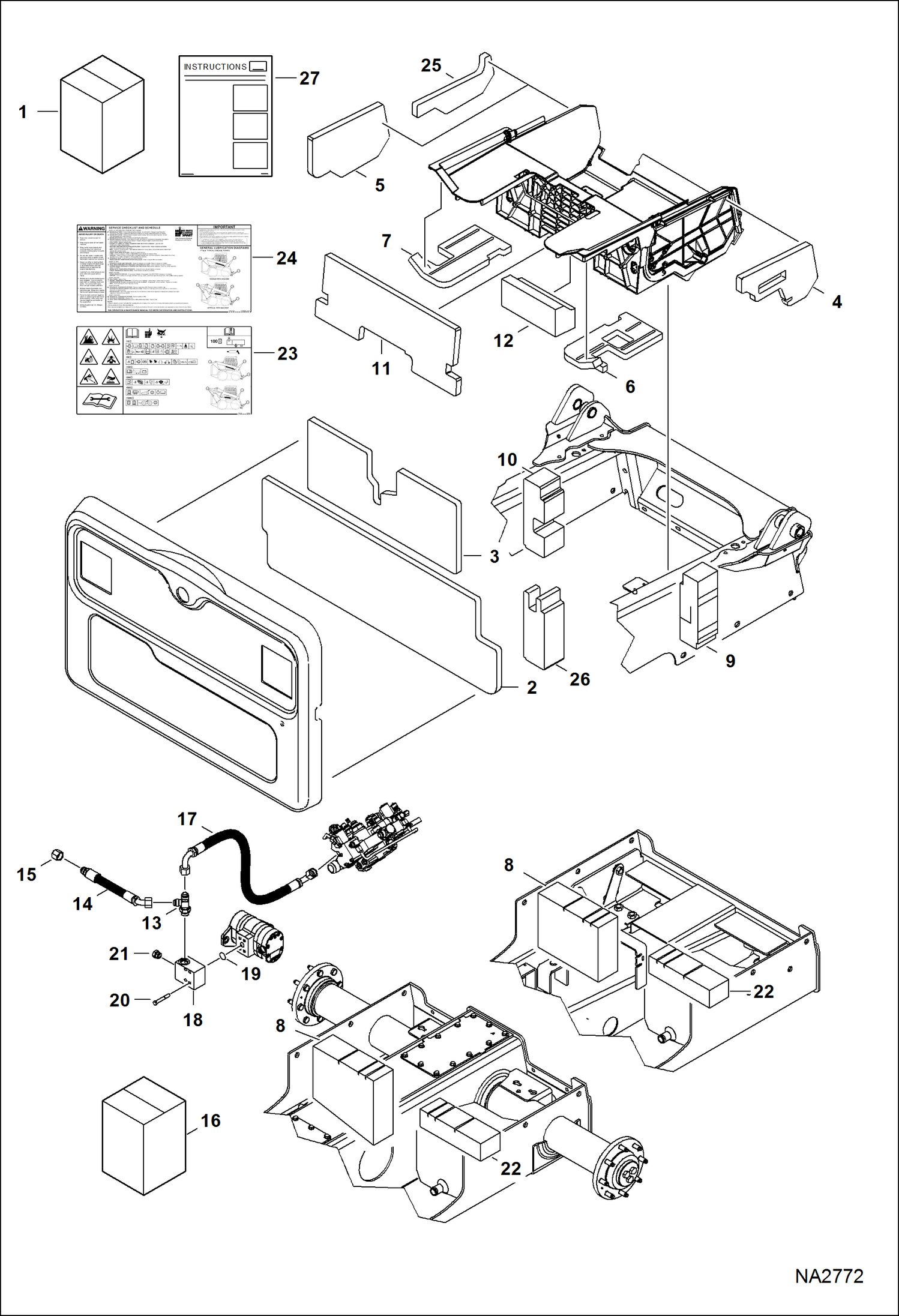

Схема запчастей Bobcat S-Series - SOUND/NOISE REDUCTION KIT ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7178038

KIT, SOUND/NOISE REDUCTION Ref. 2-15 & 17-27 - for loaders W/O Ref. 18 & not equipped with Power Bob-Tach Also Order Ref. 16

2

7171192

INSULATION, DOOR REAR

3

7171194

INSULATION, DOOR REAR

4

7196318

INSULATION Was 7196358 - A

5

7171218

INSULATION, PANEL LH

6

7171219

INSULATION, PANEL RH

7

7171220

INSULATION, PANEL LH

8

7180048

INSULATION, TRANS SSL

8

7180049

INSULATION, TRANS CTL

9

7180046

INSULATION, FENDER

10

7180047

INSULATION, FENDER

11

7180045

INSULATION, CROSSMEMBER

12

7180050

INSULATION, TRANS

13

21KB1212

FITTING, HYD TEE

14

7184938

HOSE, HYD muffler

15

36K8

CAP

16

KIT, MANIFOLD NLA - not in kit - Order Ref. 17-21

17

7183653

HOSE, HYD

18

7226207

MANIFOLD, OUTLET PUMP Was 7029565 - A

19

55K214

O-RING

20

17C644

BOLT

21

24K6

FITTING Was 47K7 - B

22

7180052

INSULATION, TRANS

23

7205727

DECAL, SERVICE no text - EMEA - Was 7168042 - A

24

7205726

DECAL, SERVICE Was 7167998 - A

25

7198481

INSULATION, PANEL LH

26

7202004

INSULATION, FENDER

27

6987338

INSTRUCTIONS

Выбрано товаров: 28
