Запчасти Bobcat S-Series SEAT (Suspension) (80 mm) ACCESSORIES & OPTIONS

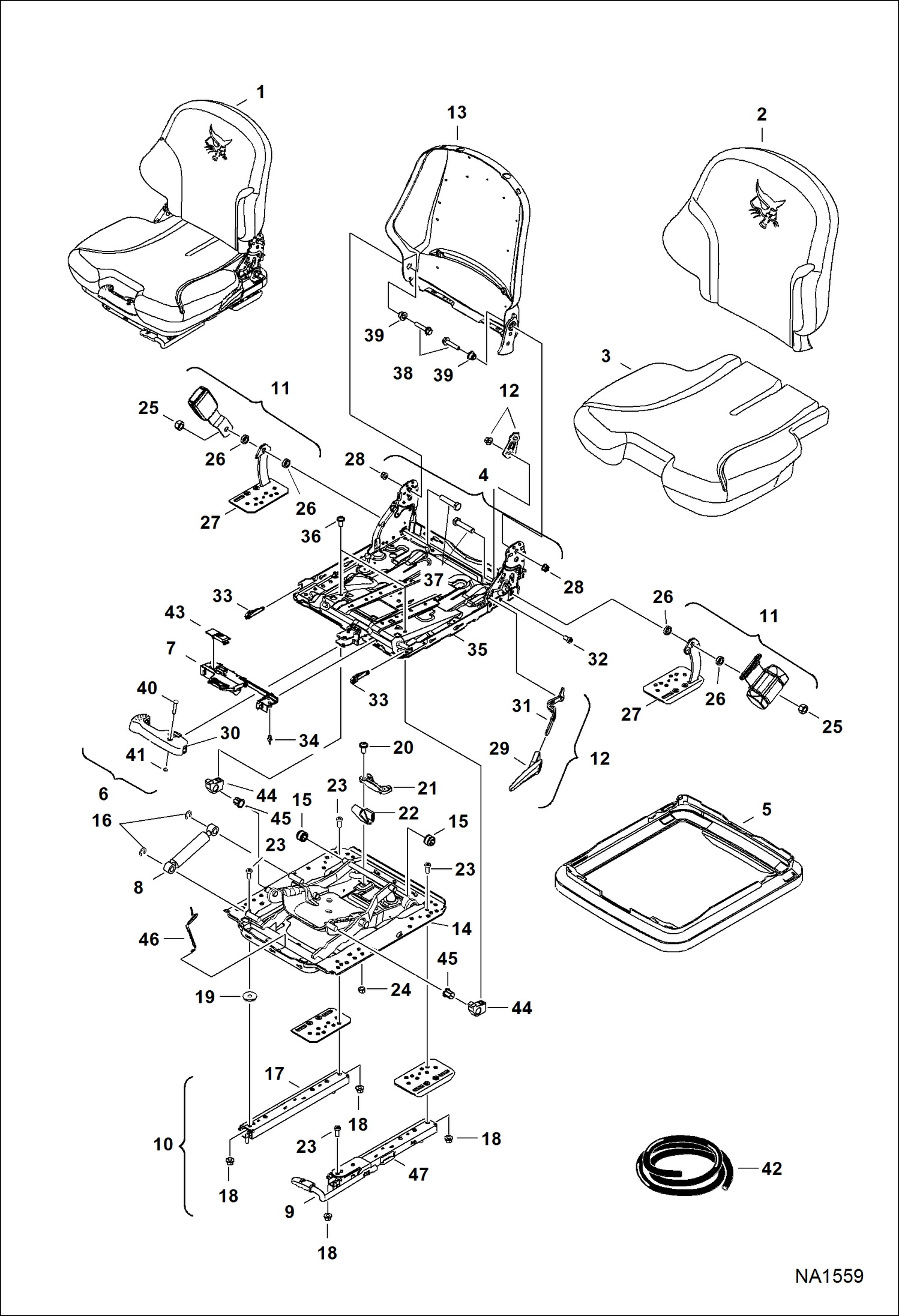

Схема запчастей Bobcat S-Series - SEAT (Suspension) (80 mm) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7149786

SEAT, SUSPENSION Ref. 2-10, 12-24 & 28-46

2

7010335

KIT, CUSHION SEAT VINYL backrest

3

7010336

KIT, CUSHION SEAT VINYL

4

7010338

KIT, BACKREST SEAT Ref. 28, 38 & 39 - parts for backrest

5

7010339

BELLOW

6

7010340

KIT, ADJUSTER SEAT Ref. 30, 40 & 41

7

7010341

KIT, HOUSING SEAT W/Ref. 43

8

7010342

KIT, ABSORBER SHOCK SEAT

9

7010343

KIT, LEVER ADJUSTING assy.

10

7010344

KIT, RAIL SLIDE SEAT Ref. 17, 18 & 47 - handle assy not included

11

7010345

KIT, TETHER SEAT BELT Ref. 25-27 - not included

12

7010346

KIT, BACKREST SEAT Ref. 29 & 31

13

BACKREST, SEAT NSS

14

FRAME, SUSPENSION NSS

15

BUSHING NSS - white plastic

16

CLIP NSS

17

RAIL, SLIDE NSS

18

NUT NSS

19

WASHER NSS

20

SCREW NSS

21

STOP, TETHER NSS

22

TETHER, BELT NSS

23

BOLT NSS

24

NUT NSS

25

86D7

NUT

26

SPACER NSS - Order Ref 11

27

PLATE, TETHER NSS - Order Ref. 11

28

NUT NSS - Order Ref. 4

29

HANDLE, ADJUSTMENT NSS - grey - Order Ref. 12

30

HANDLE, ADJUSTMENT NSS - Order Ref. 6

31

LEVER NSS - Order Ref. 12

32

SCREW NSS - Order Ref. 12

33

CLIP NSS - plastic

34

RIVOT NSS - Order Ref. 7

35

FRAME NSS - Order Ref. 1

36

BOLT NSS

37

BOLT NSS - Order Ref. 4

38

BOLT NSS

39

BUSHINGS NSS

40

BOLT NSS - Order Ref. 6

41

CLIP NSS - Order Ref. 6

42

SEAL NSS

43

COVER NSS - Order Ref. 7

44

BLOCK, STOP NSS - silver

45

BUSHING NSS

46

LEVER, GAUGE NSS - white plastic

47

RAIL, SLIDE NSS - Order Ref. 10

Выбрано товаров: 47
