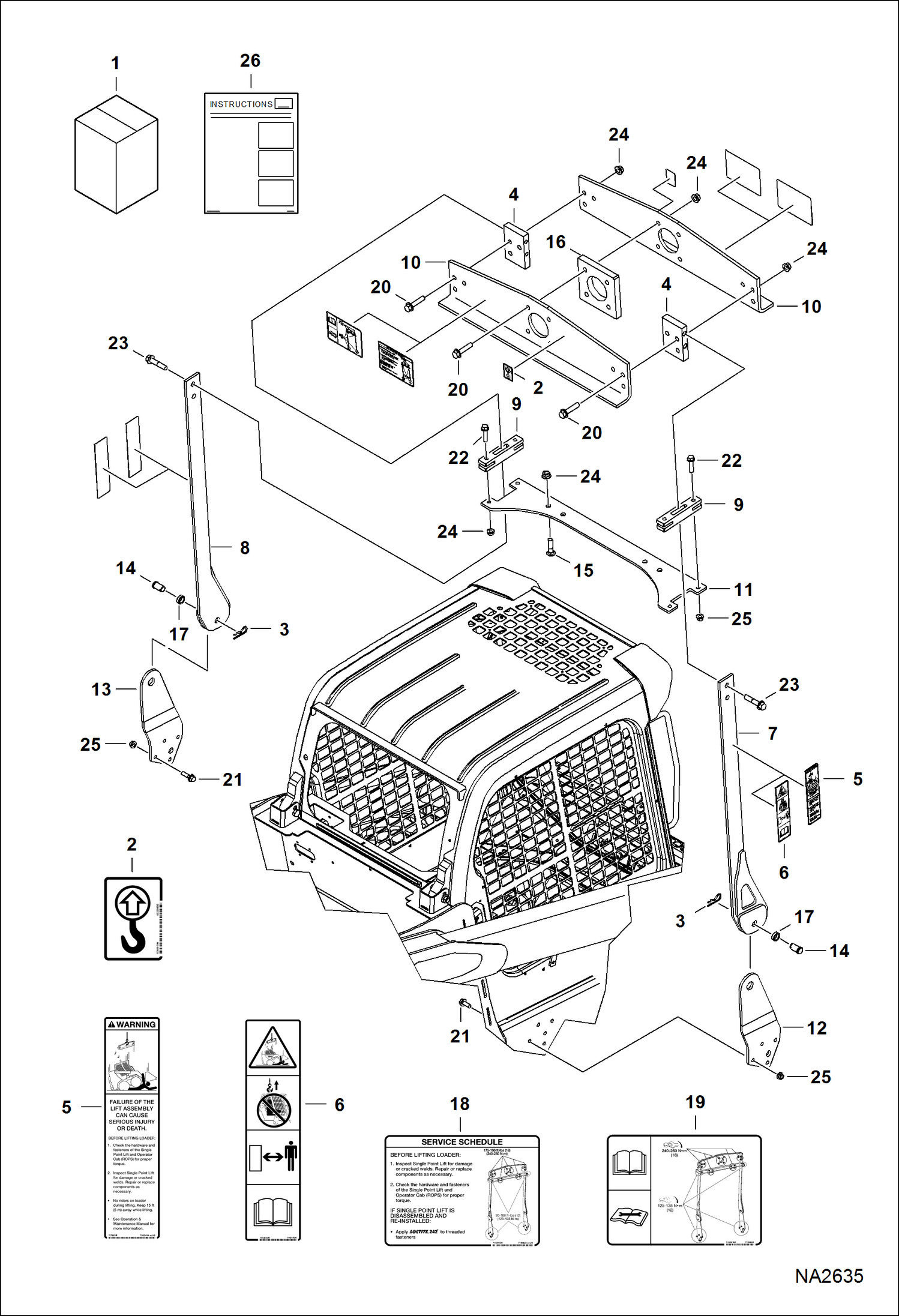

Запчасти Bobcat S-Series LIFT KIT (Single Point) ACCESSORIES & OPTIONS

1

7128432

KIT, LIFT SINGLE POINT Ref. 2-26

1

RESEALING PLUG KIT See Illustration RESEALING KIT/ NA2775

2

6533898

DECAL hook

3

1320075

PIN, COTTER

4

7126682

BLOCK

5

7142141

DECAL warning

6

7142142

DECAL warning - not text

7

7159099

ARM, LIFT RH

8

7159100

ARM, LIFT LH

9

7160760

MOUNT

10

7160779

PLATE

11

7160780

MOUNT

12

7161450

PLATE RH

13

7161451

PLATE LH

14

7161536

PIN, CLEVIS

15

7164686

BOLT, CARRIAGE

16

7166831

BLOCK

17

7168159

BUSHING

18

7189823

DECAL, SERVICE

19

7189824

DECAL, SERVICE no-text

20

31C1044

BOLT

21

31C820

BOLT

22

31C836

BOLT

23

49C1048

BOLT

24

53D10

NUT

25

53D8

NUT

26

6989621

INSTRUCTIONS
