Запчасти Bobcat S-Series DRIVE TRAIN (S/N ATF211001 - 11975, ATF311001 - 11600) DRIVE TRAIN

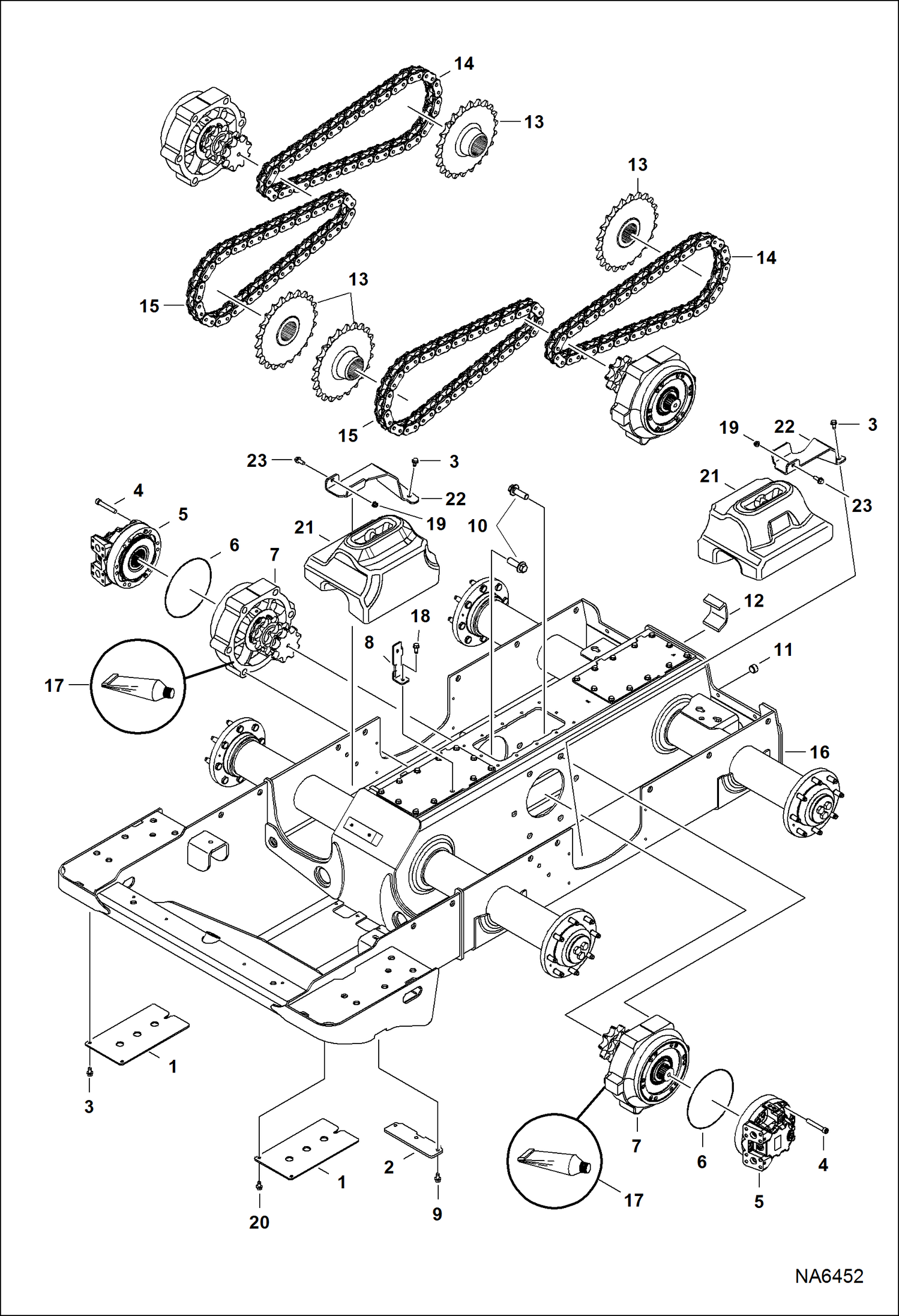

Схема запчастей Bobcat S-Series - DRIVE TRAIN (S/N ATF211001 - 11975, ATF311001 - 11600) DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

7145347

COVER

2

7159094

COVER, DRAIN

3

84G3712

BOLT 5

4

6717806

BOLT

5

MOTOR, DRIVE See Illustration HYDROSTATIC MOTOR/ MS2199 - single speed

5

MOTOR, DRIVE See Illustration HYDROSTATIC MOTOR & BRAKE/ MS1467 - 2 speed

6

25K30816

O-RING Was 25K30812 - B,D

7

7214470

CARRIER, MOTOR See Illustration MOTOR CARRIER/ NA2154 W/O Speed Sensor

8

7151466

BRACKET

9

84G3732

BOLT

10

6678971

BOLT

11

6731121

PLUG chaincase fill

12

7134445

BRACKET, TIE-DOWN weld-on

13

7134153

SPROCKET See Illustration AXLE/ NA1004

14

7106862

CHAIN, DRIVE endless - 48 pitch

14

6690988

CHAIN, DRIVE service - 48 pitch

14

6691078

LINK connecting

15

7106862

CHAIN, DRIVE endless - 48 pitch

15

6690988

CHAIN, DRIVE service - 48 pitch

15

6691078

LINK connecting

16

7139698

CHAINCASE

17

6685372

SEALANT, GASKET LIQUID 10.1 OZ tube - 0.57 kg (20 oz)

18

84G3732

BOLT

19

57D6

NUT 5

20

35C612

BOLT

21

7188577

COUNTERWEIGHT

22

7188580

BRACKET, HOLDING RH

22

7188581

BRACKET, HOLDING LH

23

49C616

BOLT

Выбрано товаров: 29
