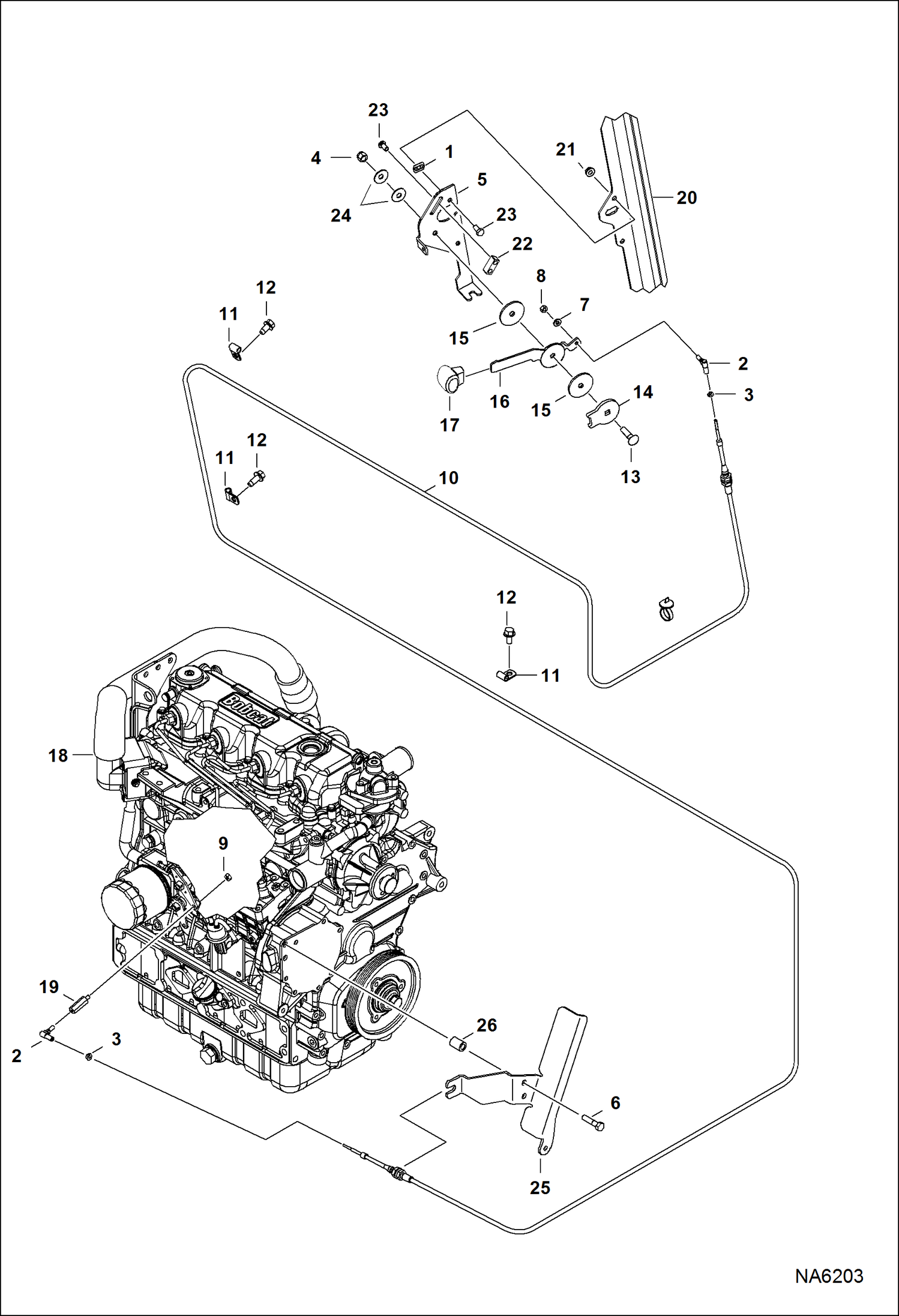

Запчасти Bobcat S-Series ENGINE SPEED CONTROL (Manual Controls) POWER UNIT

1

774220

NUT

2

6644965

BALL JOINT

3

14D10

NUT

4

59D6

NUT

5

7166171

BRACKET

6

7131273

SCREW SJC - Was 59CM1240 - B

7

25E11

WASHER

8

62D4

NUT

9

95D4

NUT

10

7159993

CABLE, THROTTLE

11

30H20

CLIP

12

84G3712

BOLT 5

13

37C624

BOLT

14

7166269

WASHER

15

7159386

WASHER

16

7166172

HANDLE

17

7166173

HANDLE black was orange

18

7020665

ENG, V3800DIT 92 HP EPA T2 / EU STG II See Illustration ENGINE & GASKET KITS/ NA6196

19

7183048

SPACER

20

CAB, ASSY See Illustration OPERATOR CAB/ NA1122

21

55D5

NUT

22

7166174

BLOCK

23

25G510

BOLT

24

6630038

WASHER

25

7196287

COVER, BELT See Illustration ENGINE & ATTACHING PARTS/ NA6190

26

6532347

SPACER
