Запчасти Bobcat S-Series HAND CONTROLS HYDROSTATIC SYSTEM

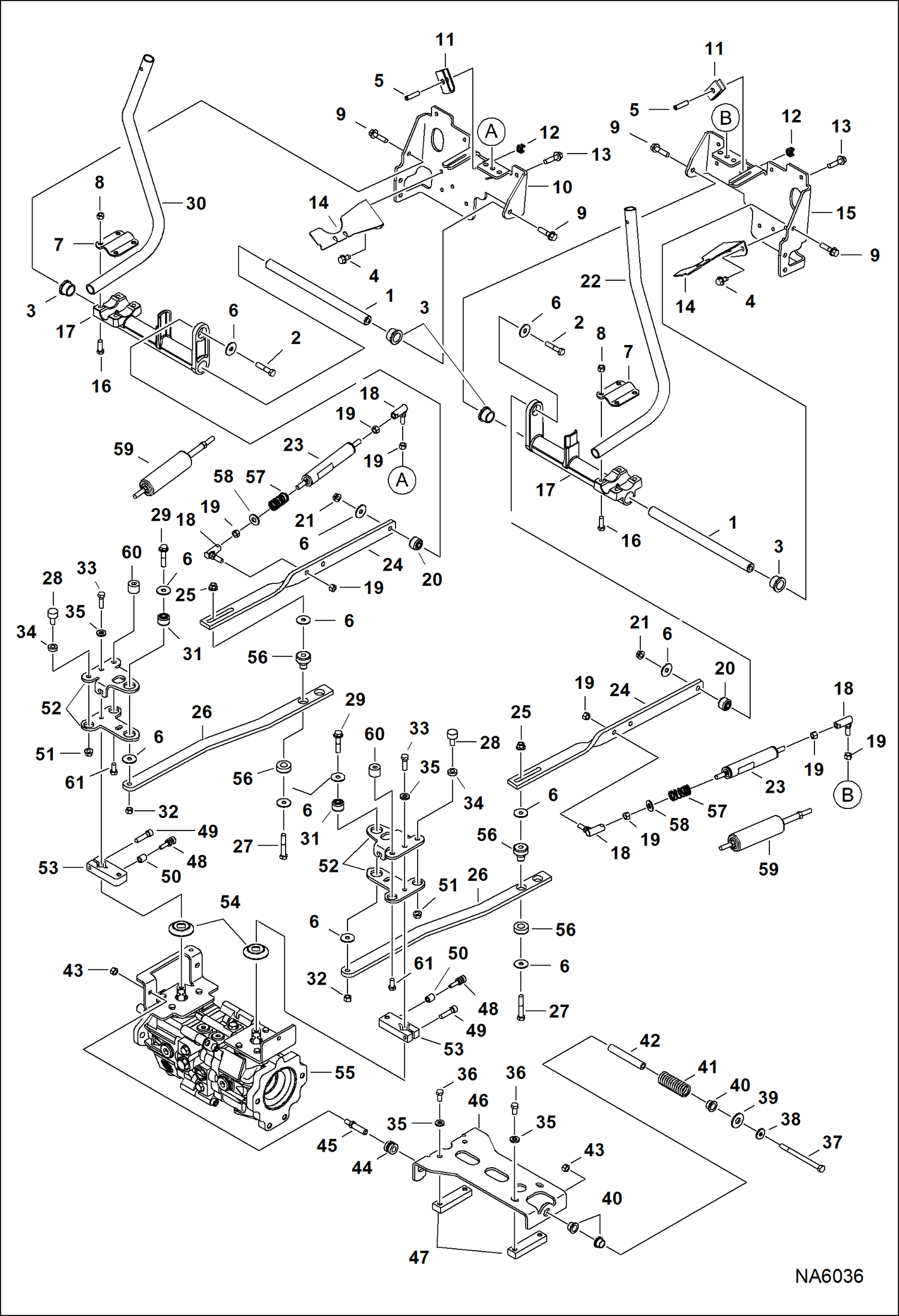

Схема запчастей Bobcat S-Series - HAND CONTROLS HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

7145149

SHAFT, STEERING

2

17C628

BOLT

3

7159624

BUSHING

4

84G3712

BOLT 5

5

15G628

SCREW

6

6737388

WASHER

7

7156761

PLATE

8

95D6

NUT

9

49C624

SCREW

10

7176118

MOUNT

11

7121779

PAD

12

6685663

NUT, RETAINING

13

84G3724

BOLT

14

7163216

BRACKET

15

7176117

MOUNT

16

17C616

BOLT 5

17

7151889

BELLCRANK

18

6599744

BALL JOINT

19

62D6

NUT 5

20

6685060

BUSHING, TORSION

21

53D6

NUT

22

7145147

LEVER, STEERING RH

23

GAS SPRING NLA - Japan Option - Order Ref. 59 - Was 6649551 - A

24

7231591

LINK, STEERING Was 7183799 - A

25

83D6

NUT 5

26

7183821

LINK, CENTER

27

17C636

BOLT

28

6673789

BEARING

29

17C628

BOLT Was 49C628 - B

30

7153379

LEVER, STEERING LH

31

6685060

BUSHING, TORSION

32

53D6

NUT Was 63D6 - B

33

47C620

BOLT

34

7100699

WASHER

35

7103217

WASHER

36

17C616

BOLT 5 Was 7105192 - B

37

17C680

BOLT

38

6563914

WASHER

39

25E24

WASHER AHC & ACS

40

6715163

BUSHING, PRESS FIT

41

6701535

SPRING

42

6715164

SLEEVE, SPRING

43

95D6

NUT

44

6706098

GUIDE

45

6577058

PIN

46

6734298

MOUNT

47

6702716

BLOCK

48

7103711

BOLT

49

73G624

BOLT

50

7105223

SPACER

51

98D6

NUT

52

7110365

ARM, PINTLE

53

7103708

BRACKET pintle arm

54

6687913

SEAL

55

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - manual controls, AHC & ACS

56

7169932

MOUNT

57

6690564

SPRING, COMPRESSION

58

25E18

WASHER

59

7188108

GAS SPRING

Выбрано товаров: 59
