Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (2-Speed Motor) (Selectable Joystick Controls) (S/N A3P211001 - 14549) HYDROSTATIC SYSTEM

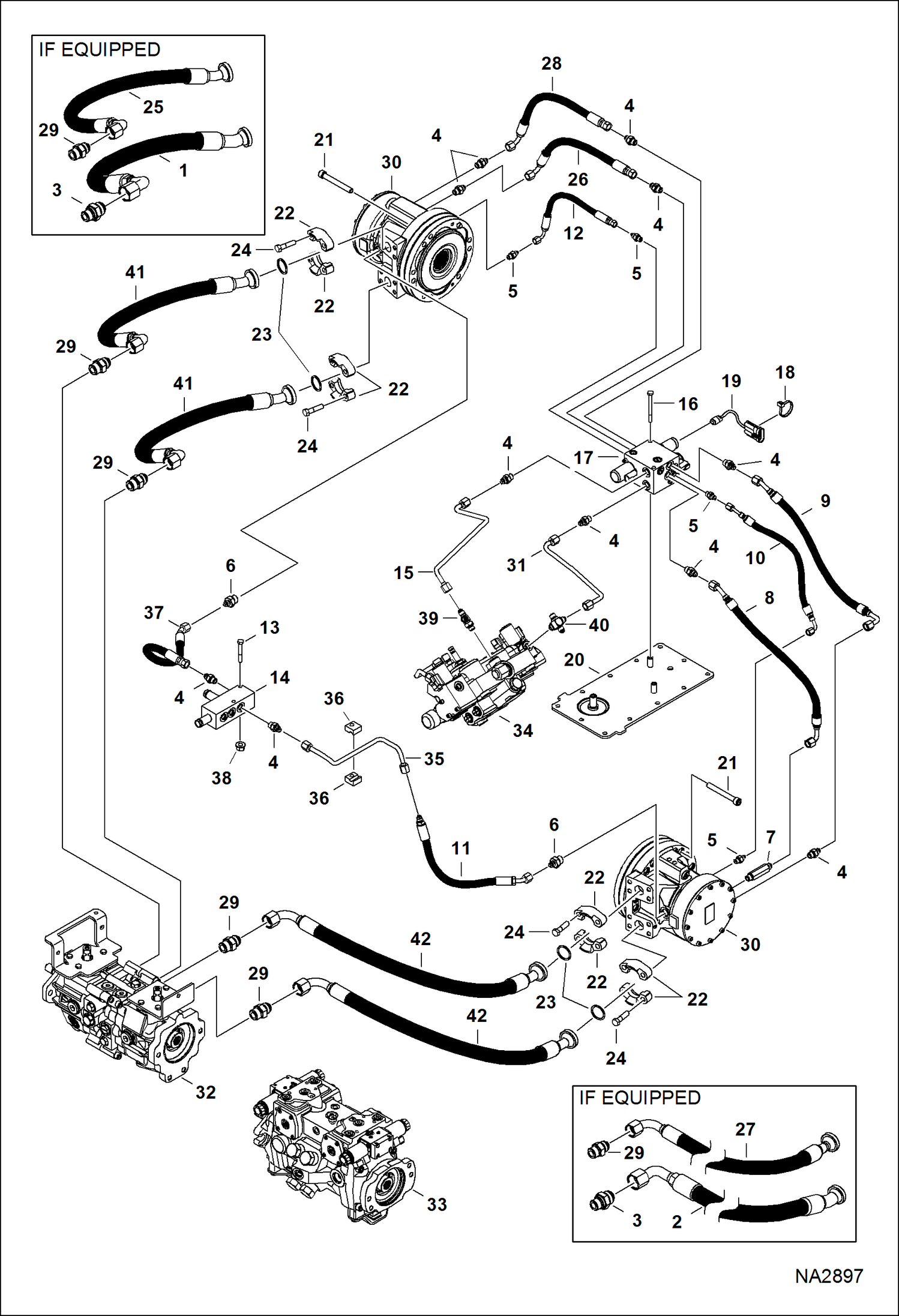

Схема запчастей Bobcat S-Series - HYDROSTATIC CIRCUITRY (2-Speed Motor) (Selectable Joystick Controls) (S/N A3P211001 - 14549) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

7198721

HOSE, HYD

2

7203868

HOSE, HYD Was 7198722 - A

3

15KB1612

FITTING, HYD CONNECTOR

3

79K12

O RING 10

4

15KB0606

FITTING, HYD CONNECTOR

4

79K6

O RING 10

5

15KB0404

FTG HYD S Connector

5

79K4

O RING 10

6

15KB0608

FITTING, HYD CONNECTOR

6

79K8

O RING 10

7

7169116

ADAPTER

7

79K6

O RING 10

8

7180605

HOSE, HYD

9

7196599

HOSE, HYD

10

7196598

HOSE, HYD

11

7185253

HOSE, HYD

12

7196361

HOSE, HYD

13

17C540

BOLT

14

7201981

MANIFOLD, DRAIN CASE

15

7182205

TUBELINE, HYD

16

17C552

BOLT

17

VALVE, 2 SPEED See Illustration 2-SPEED VALVE/ NA2164

18

6624289

STRAP, TIE

19

7159366

HARNESS, 2 SPEED RETURN

20

7153655

COVER, BRAKE ASSY

21

6717806

BOLT

22

20J16

FLANGE

23

55K219

O'RING

24

17C728

BOLT

25

7009001

HOSE, HYD

26

7187472

HOSE

27

7009003

HOSE, HYD

28

6578327

HOSE

29

15KB1212

FITTING, HYD CONNECTOR

29

79K12

O RING 10

30

6688363

MOTOR, DRIVE HYD 2-SPD See Illustration HYDROSTATIC MOTOR & BRAKE/ MS1467

31

7182204

TUBELINE, HYD

32

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - manual controls, AHC & ACS

33

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - SJC

34

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1216 - manual controls

34

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1217 - AHC, ACS & SJC

35

7187128

TUBELINE, HYD

36

6727707

CLAMP

37

7187286

HOSE, HYD

38

86D5

NUT

39

21KB0606

FTG HYD STRAIGHT TEE

39

79K6

O RING 10

40

7180987

FITTING, CROSS

40

79K6

O RING 10

Выбрано товаров: 49
