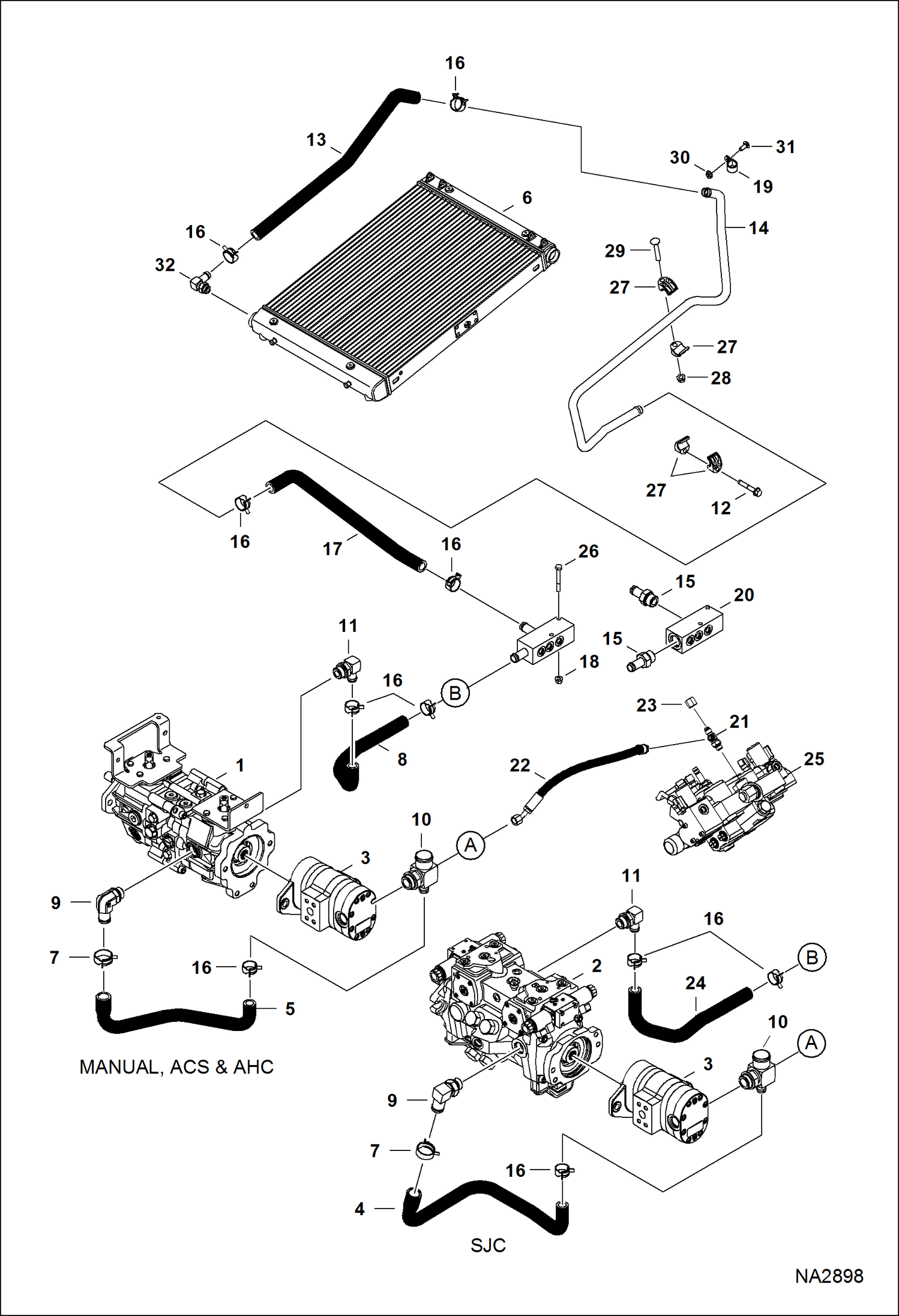

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (Cooler) HYDROSTATIC SYSTEM

1

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - manual controls, AHC & ACS

2

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - SJC

3

PUMP, GEAR See Illustration GEAR PUMP/ MS1454 - standard flow hydraulics

3

PUMP, GEAR See Illustration HIGH FLOW HYDRAULICS/ NA5151 - high flow hydraulics

4

7178518

HOSE, HYD FORMED

5

7165205

HOSE, HYD FORMED

6

EXCHANGER, OIL COOLER See Illustration RADIATOR/COOLER ASSEMBLY/ NA2506 W/Ref. 32

7

5HM35

HOSECLAMP

8

7178574

HOSE, HYD

9

7015518

VALVE, CHECK

10

7158921

FITTING See Illustration HYDROSTATIC CIRCUITRY/ NA2502

10

79K16

O RING 10

11

7113631

ELBOW

11

79K12

O RING 10

12

84G3736

BOLT

13

7212684

HOSE, HYD FORMED Was 7186873 - A

14

7190648

TUBELINE, HYD

15

6812865

FITTING

15

79K12

O RING 10

16

5HM27

CLAMP

17

7186874

HOSE, HYD FORMED

18

83D5

NUT 5

19

30H65

CLIP

20

7201981

MANIFOLD, DRAIN CASE

21

21KB0606

FTG HYD STRAIGHT TEE

21

79K6

O RING 10

22

7235459

HOSE, HYD Was 7159735 - A

23

36K5

CAP

24

7178573

HOSE, HYD

25

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1216 - manual controls

25

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1217 - ACS, AHC & SJC

26

17C540

BOLT

27

7100462

CLAMP

28

55D6

NUT

29

7199946

BOLT

30

55D5

NUT

31

10C512

BOLT

32

FITTING, ELBOW NLA - Order Ref. 6 - Was 7022635 - A
