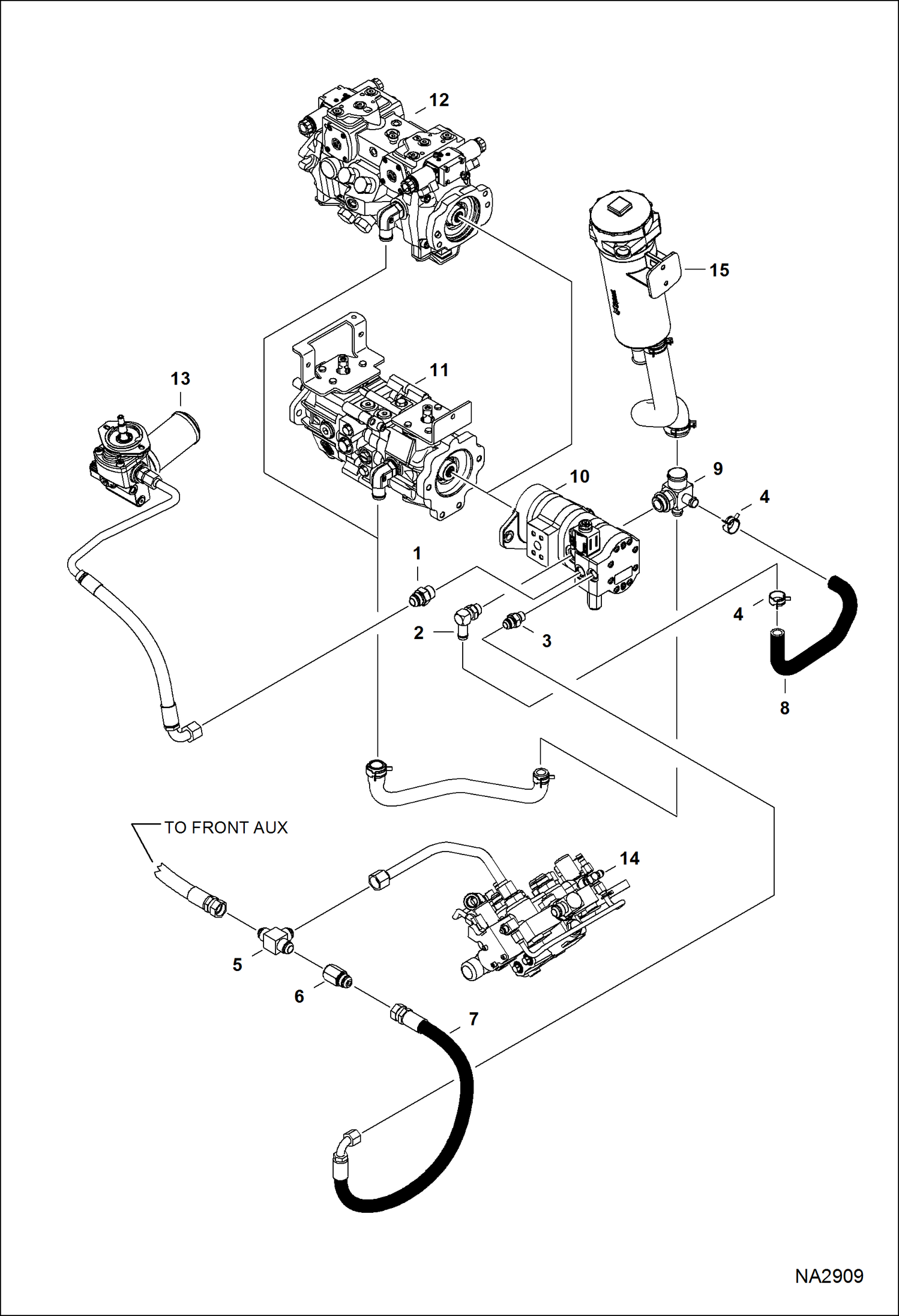

Запчасти Bobcat S-Series HIGH FLOW HYDRAULICS HIGH FLOW HYDRAULICS

1

15KB1212

FITTING, HYD CONNECTOR

1

79K12

O RING 10

2

6717885

ELBOW

2

79K10

O RING 10

3

15KB1008

FITTING, HYD CONNECTOR

3

79K8

O RING 10

4

5HM29

HOSECLAMP

5

10K8

TEE

6

7010242

VALVE, CHECK in-line

7

7154521

HOSE

8

7155661

HOSE

9

7155660

FITTING

10

PUMP, GEAR QUAD See Illustration HIGH FLOW HYDRAULICS/ NA5151

11

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - manual controls, AHC & ACS

12

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - SJC

13

MOTOR, HYD FAN COOLING See Illustration COOLING FAN MOTOR/ MS2514

14

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1216 - manual controls

14

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1217 - ACS, SJC & AHC

15

FILTER, HYDRO ASSY See Illustration HYDROSTATIC CIRCUITRY/ NA2502
